Makita

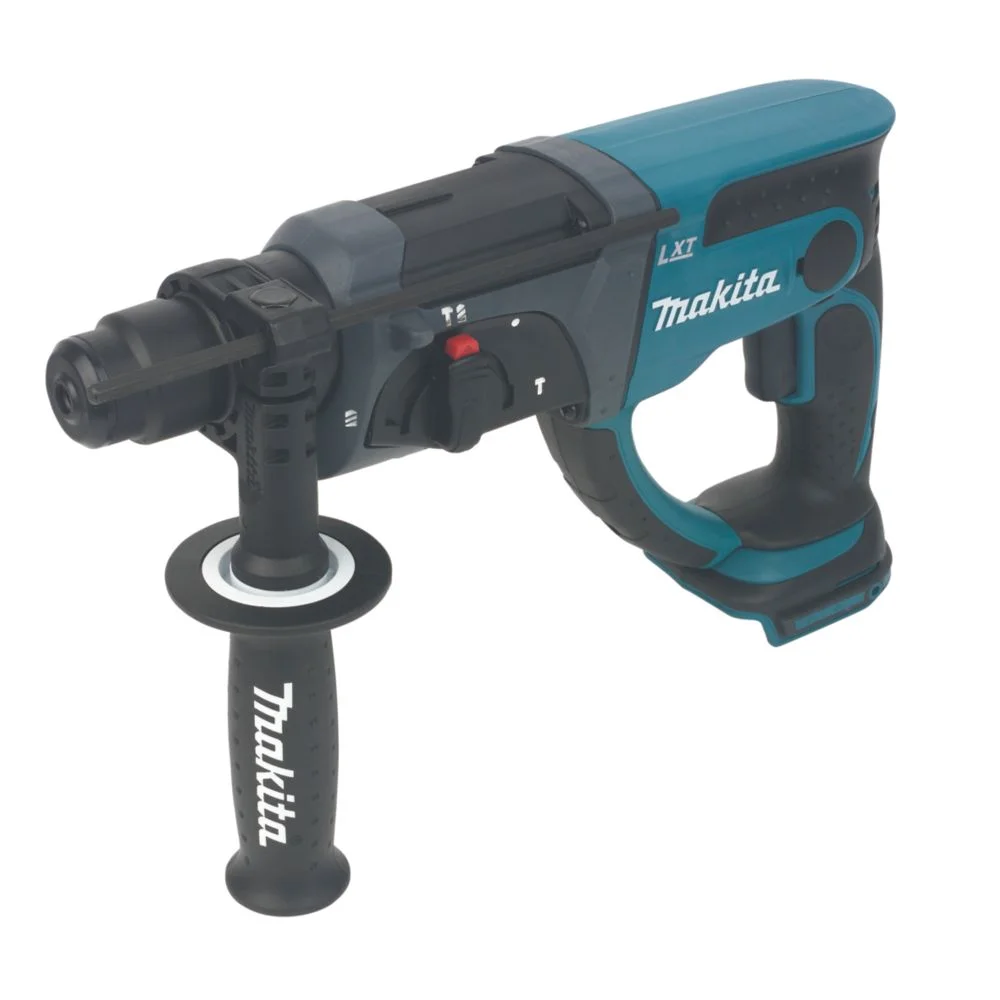

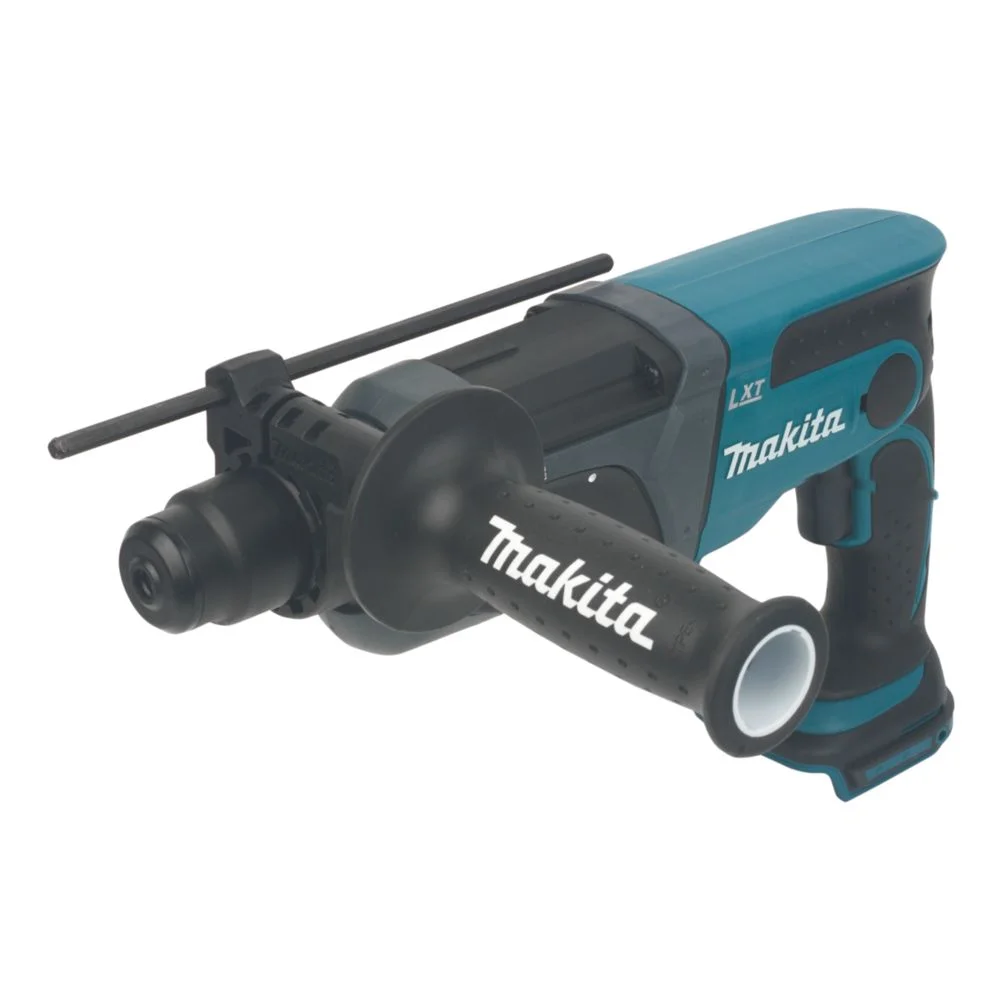

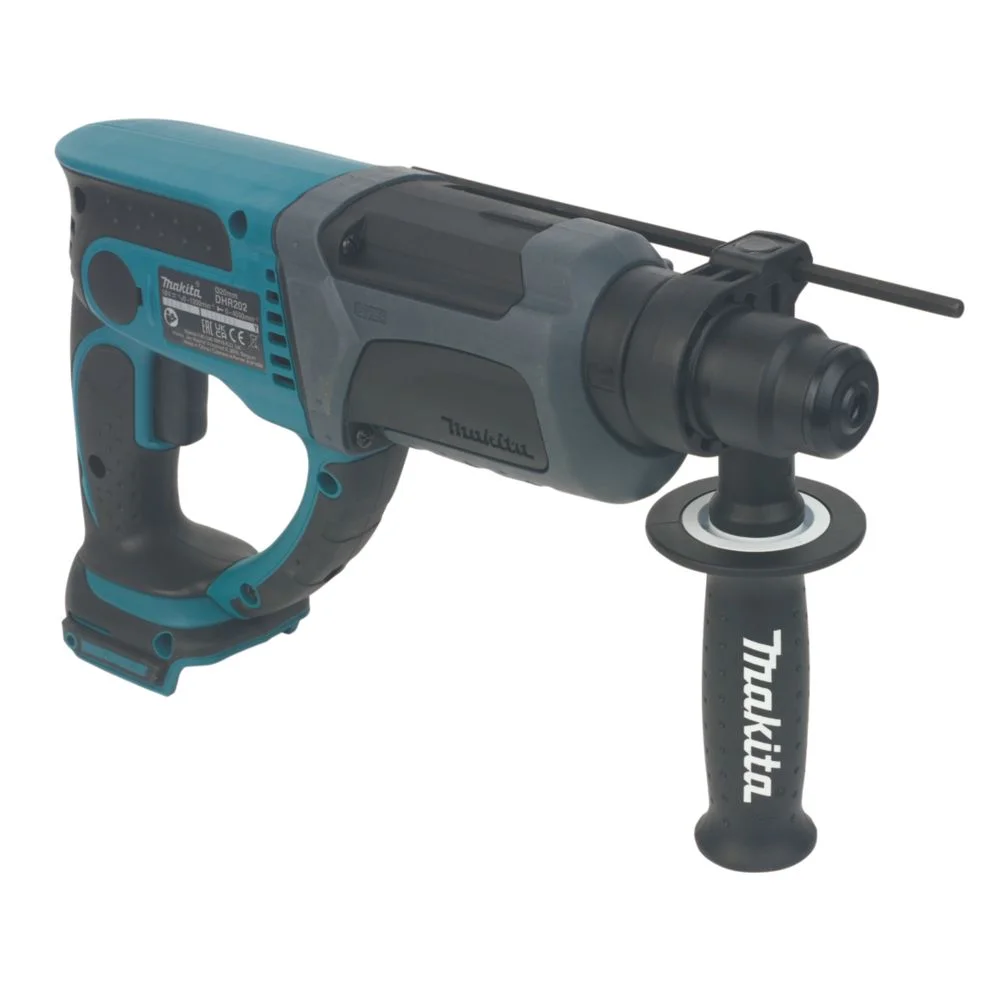

18V LXT 20 mm SDS Plus Rotary Hammer — 1.9 J, 3-Mode
Part No: DHR202Z | Barcode: 1110003467515
Makita’s DHR202Z is a compact 18V LXT rotary hammer with 1.9 J of impact energy and a 20 mm drilling capacity in concrete. Three operating modes cover hammer drilling, rotation only, and hammer only for light chiselling, while the rubber joint construction suppresses vibration at the battery terminal.
1.9 J Impact Energy
20 mm Concrete Capacity
4,000 BPM
1,100 RPM
3-Mode Operation
SDS Plus Chuck
18V LXT Platform
Suitable For
Concrete
Masonry
Brick
Block
Steel (13 mm)
Timber (26 mm)
Key Features & Benefits
- 1.9 J Impact Energy — provides SDS-class hammer drilling for anchor holes and fixings up to 20 mm in concrete, suitable for most light to medium trade fixings.
- 3-Mode Selector — switch between hammer drilling, rotation only for steel and timber, and hammer only for light chiselling and tile removal.
- Anti-Vibration Rubber Joint — suppresses vibration transmitted to the battery terminal, protecting both the operator and the battery from impact stress.
- LED Job Light with Afterglow — illuminates the work area and stays lit after releasing the trigger for inspecting the hole in dark cavities.
- Compact Ergonomic Design — a lightweight, well-balanced body reduces fatigue during overhead drilling and extended anchor-setting sessions.
- Variable Speed Trigger — allows controlled speed build-up for accurate hole placement on smooth or angled surfaces.
When to Use This Rotary Hammer
The DHR202Z is the entry-level cordless rotary hammer for trades who need occasional concrete and masonry drilling without the weight and cost of a larger model. Its 20 mm capacity covers Dynabolts and sleeve anchors up to M12, making it ideal for electricians mounting switchboards, plumbers fixing brackets, and general trades installing fixings in brick and block. For larger anchors up to M16 or core drilling, step up to the DHR242Z with its 24 mm capacity and 2.0 J impact energy. The DHR202Z is the lighter, more economical choice when 20 mm is enough.
Authorised Australian Dealer — This product is sourced directly from Makita Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 18V LXT |
| Impact Energy (EPTA) | 1.9 J |
| No-Load Speed | 0–1,100 RPM |
| Impacts Per Minute | 0–4,000 |
| Max Drilling — Concrete | 20 mm |
| Max Drilling — Steel | 13 mm |
| Max Drilling — Wood | 26 mm |
| Chuck Type | SDS Plus |
| Operating Modes | 3 (Drill / Hammer Drill / Hammer) |
| Weight (bare) | 3.0 kg |
| Vibration — Hammer Drill | 14.5 m/s² |
| Motor | Brushed |
