Makita DJV184Z — brushless top handle jigsaw available at Alltools Geelong. Shop our full — brushless top handle jigsaw range in Geelong.
Makita

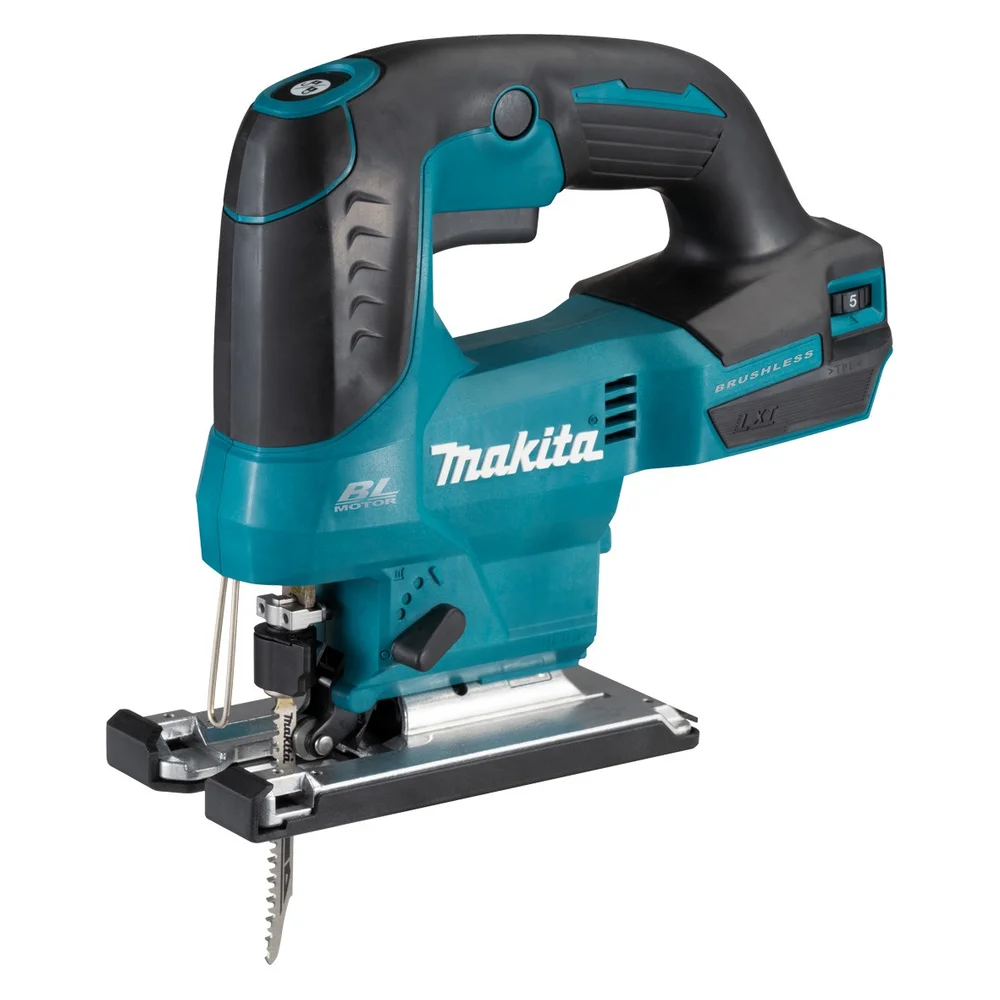

DJV184Z 18V Brushless Top Handle Jigsaw
Part No: DJV184Z | Barcode: 88381762533
The Makita DJV184Z is an 18V brushless top handle jigsaw with a 23mm stroke, variable speed from 3,000 SPM, and 135mm wood cutting depth. Featuring tool-less blade change, guide rail adaptor compatibility, and orbital cutting mode, it provides controlled straight-line cutting with the stability of a top handle design.
18V Brushless
Top Handle
135mm Wood Depth
23mm Stroke
3,000 SPM
Guide Rail Compatible
Orbital Action
Suitable For
Timber & Plywood
Sheet Steel
Aluminium
Plastic & Laminate
Key Features & Benefits
- Top handle design —provides stable downward control for straight cuts along marked lines and against guide rails.
- 135mm wood cutting depth —handles thick hardwood and stacked sheet materials in a single pass.
- 23mm stroke with 3,000 SPM —controlled blade speed range suited to precise cutting in a variety of materials.
- Guide rail adaptor compatible accepts Makita guide rails for dead-straight cuts in sheet materials, an advantage over barrel-grip jigsaws.
- Orbital cutting mode —adjustable blade orbit for faster cuts in timber or cleaner cuts in metal and laminate.
- Brushless motor —delivers longer runtime and consistent performance with reduced maintenance.
- Tool-less blade change —lever-action clamp accepts T-shank and universal-shank blades without tools.
- 20mm aluminium cutting depth —capable of cutting through aluminium sheet and extrusions in addition to standard wood and steel applications.
When to Use This Jigsaw
The DJV184Z is the top-handle companion to the barrel-grip DJV181Z choose this when you need the stability and control of a top handle for straight cuts, guided cuts with a rail, and controlled plunge cuts. The guide rail compatibility makes it particularly effective for sheet material work where straight-line accuracy matters. Choose the DJV181Z barrel-grip instead when you need maximum manoeuvrability for curved and intricate cuts.
Product Specifications
| Part No. | Handle | Motor | Stroke | SPM Range | Wood Depth | Steel Depth | Weight |
|---|---|---|---|---|---|---|---|
| DJV181Z | Barrel Grip | Brushless | 26mm | 800-3,500 | 135mm | 10mm | 1.9kg |
| DJV184Z … | Top Handle | Brushless | 23mm | 3,000 | 135mm | 10mm | 2.5kg |
★ You are viewing the highlighted variant. Other models in this series are also available.
