Makita

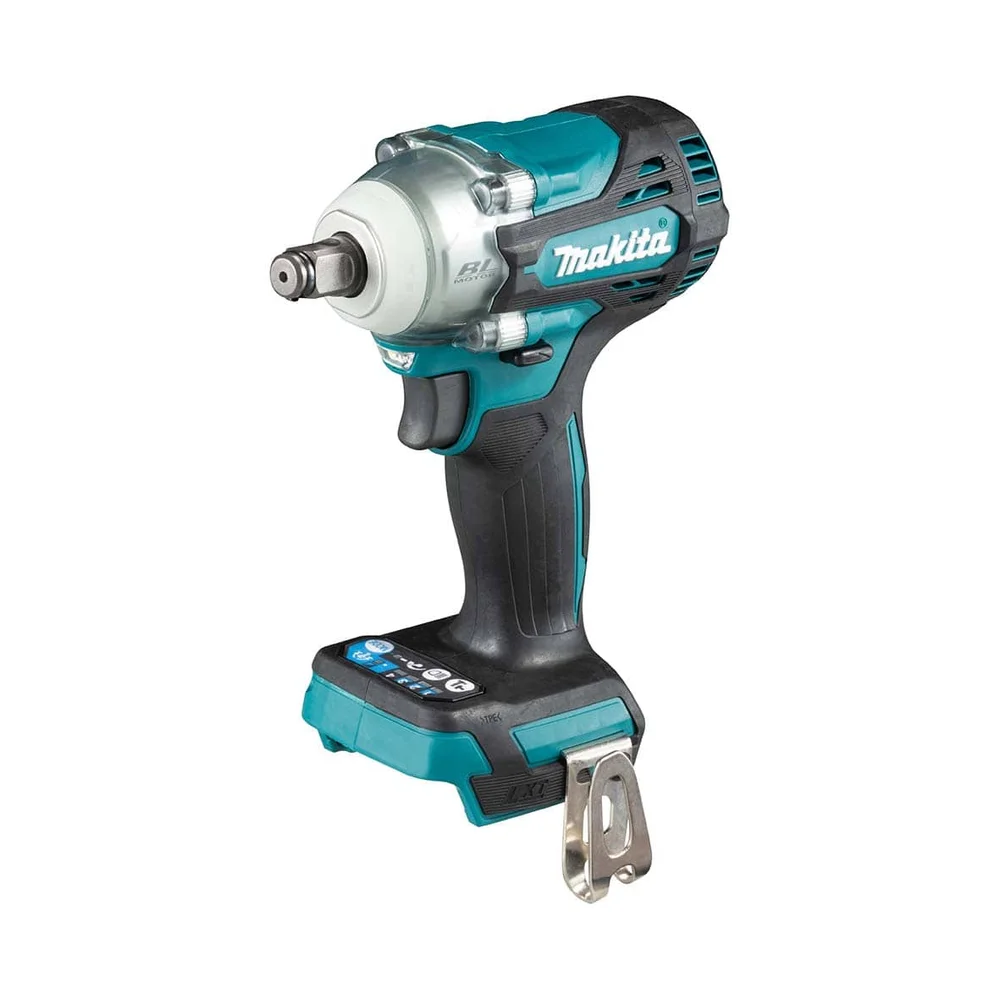

DTW300Z — 18V Brushless 1/2″ Compact Impact Wrench
Part No: DTW300Z | Barcode: 88381898003
The Makita DTW300Z is a compact 18V brushless 1/2″ impact wrench delivering 330Nm fastening torque and 580Nm nut-busting torque in a lightweight 1.5kg body. With 4-speed selection and brushless efficiency, it handles M10–M20 fastening tasks with the portability needed for all-day carry on automotive and construction sites.
18V Brushless
1/2″ Drive
330Nm Fastening
580Nm Nut-Busting
4-Speed Selection
3,200 RPM
1.5kg Bare
Suitable For
Automotive Service
Scaffolding
General Construction
Mechanical Maintenance
Key Features & Benefits
- 330Nm fastening / 580Nm nut-busting torque — enough power for M10–M20 bolts including scaffold couplers, automotive suspension, and general construction fasteners.
- 1.5kg bare weight — one of the lightest 1/2″ impact wrenches available, reducing fatigue during extended overhead and repetitive fastening tasks.

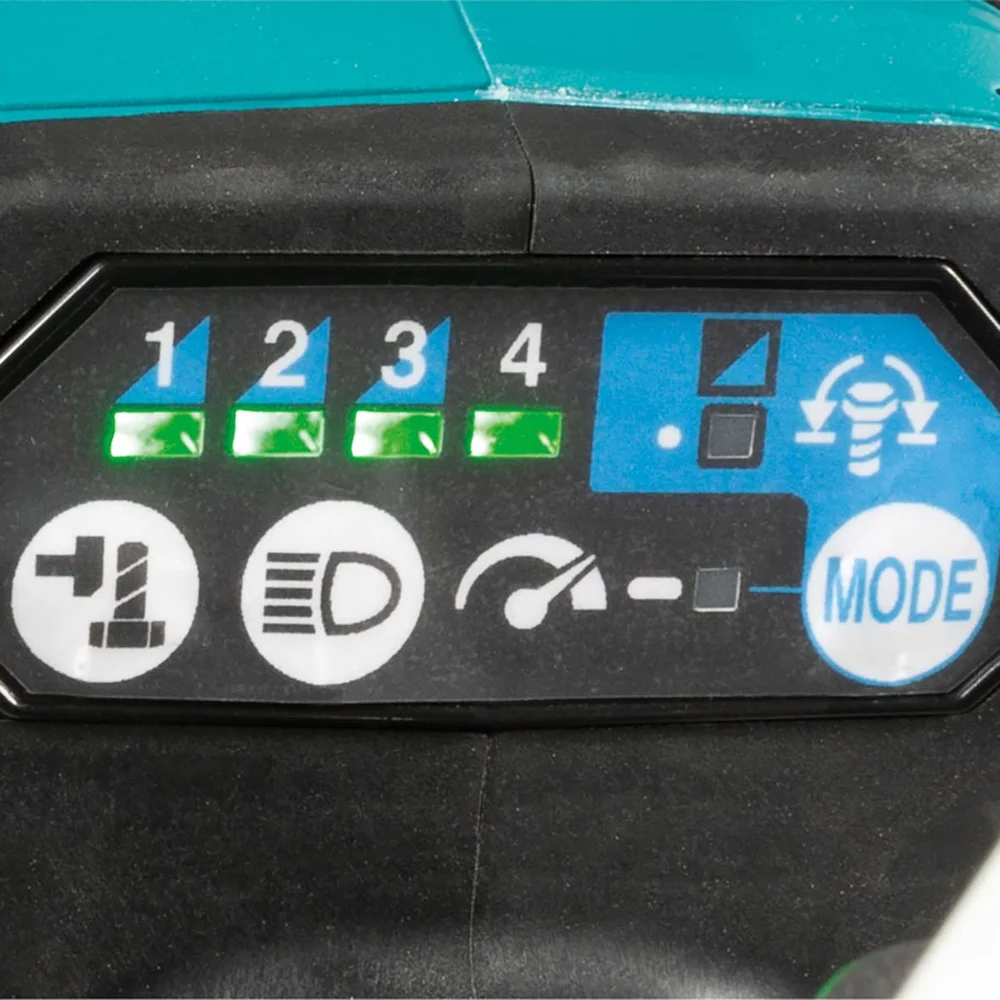

- 4-speed impact power selection — Soft (100Nm), Medium (160Nm), Hard (210Nm), and Max (330Nm) for precise torque control across different fastener sizes.
- 3,200 RPM maximum speed — fast fastener run-down reduces time per bolt on high-volume tasks like scaffolding and framing.
- Brushless motor — longer runtime per charge, reduced maintenance, and consistent performance throughout the battery’s discharge cycle.
- 1/2″ square drive — universal compatibility with standard 1/2″ impact sockets for bolts from M10 to M20.

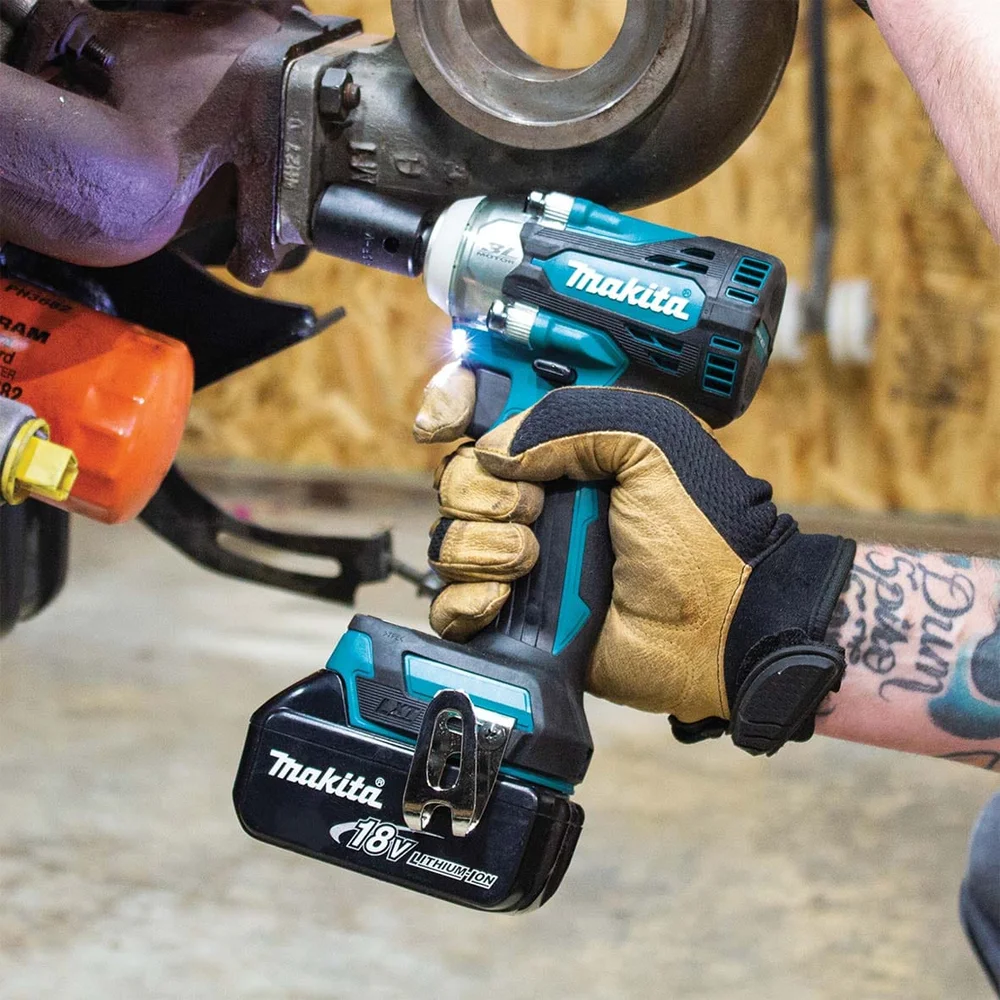

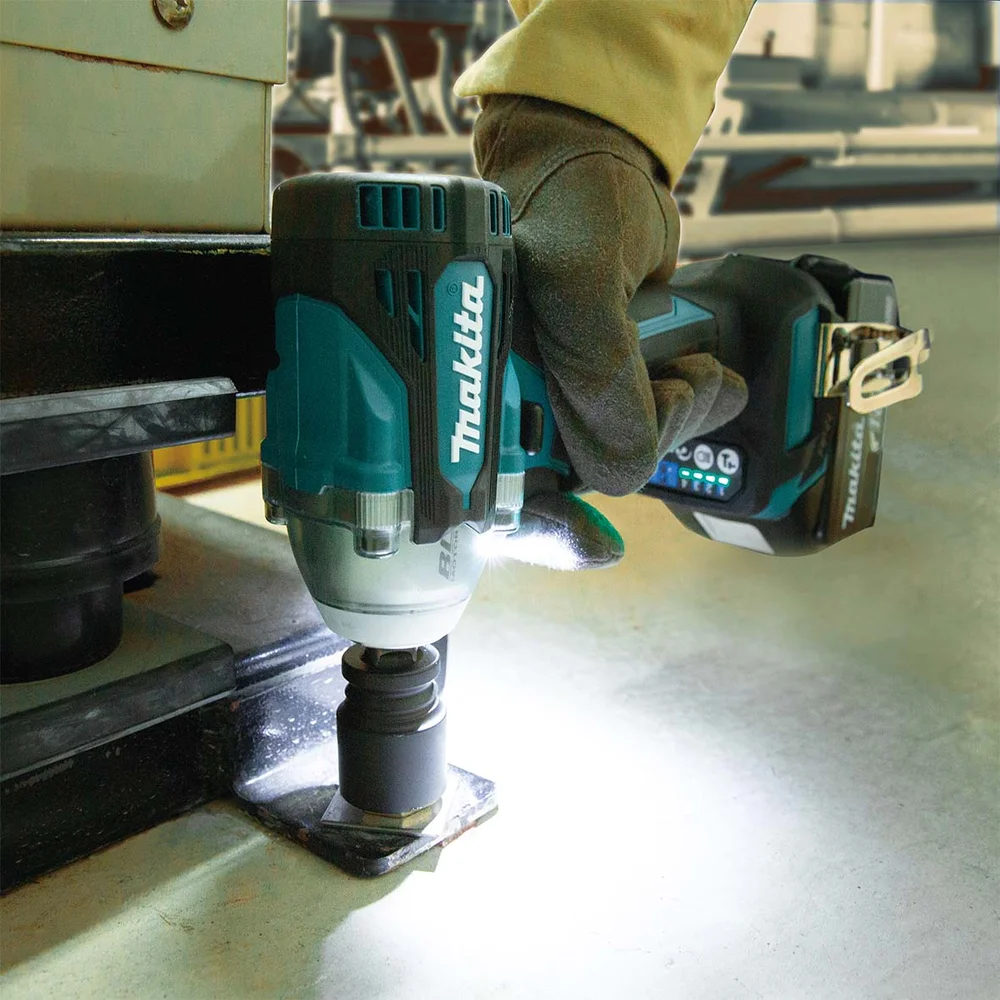

- Built-in LED light — illuminates the fastener in dark engine bays, under vehicles, and in ceiling cavities.
When to Use This Impact Wrench
The DTW300Z is the right choice when you need 1/2″ socket compatibility but prioritise light weight and compactness over maximum torque. At 1.5kg it is comfortable for all-day carry on scaffolding, framing, and automotive underbody work where you are constantly moving between fastener locations. Choose this over the DTW700Z when 330Nm is sufficient for your fastener sizes, or over the DTW251Z when you need the higher torque and brushless efficiency.
Product Specifications
| Part No. | Class | Fastening Torque | Nut-Busting Torque | Max RPM | Drive | Weight |
|---|---|---|---|---|---|---|
| DTW700Z | Mid-Torque | 700Nm | 1,000Nm | 2,200 | 1/2″ C-Ring | 2.3kg |
| DTW300Z ★ | Compact | 330Nm | 580Nm | 3,200 | 1/2″ | 1.5kg |
| DTW251Z | Standard | 230Nm | — | 2,100 | 1/2″ | 1.7kg |
| DTW1001Z | High-Torque | — | — | — | 3/4″ | — |
| DTW1002Z | High-Torque | — | — | — | 1/2″ | — |
★ You are viewing the highlighted variant. Other models in this series are also available.
