Description
Eclipse

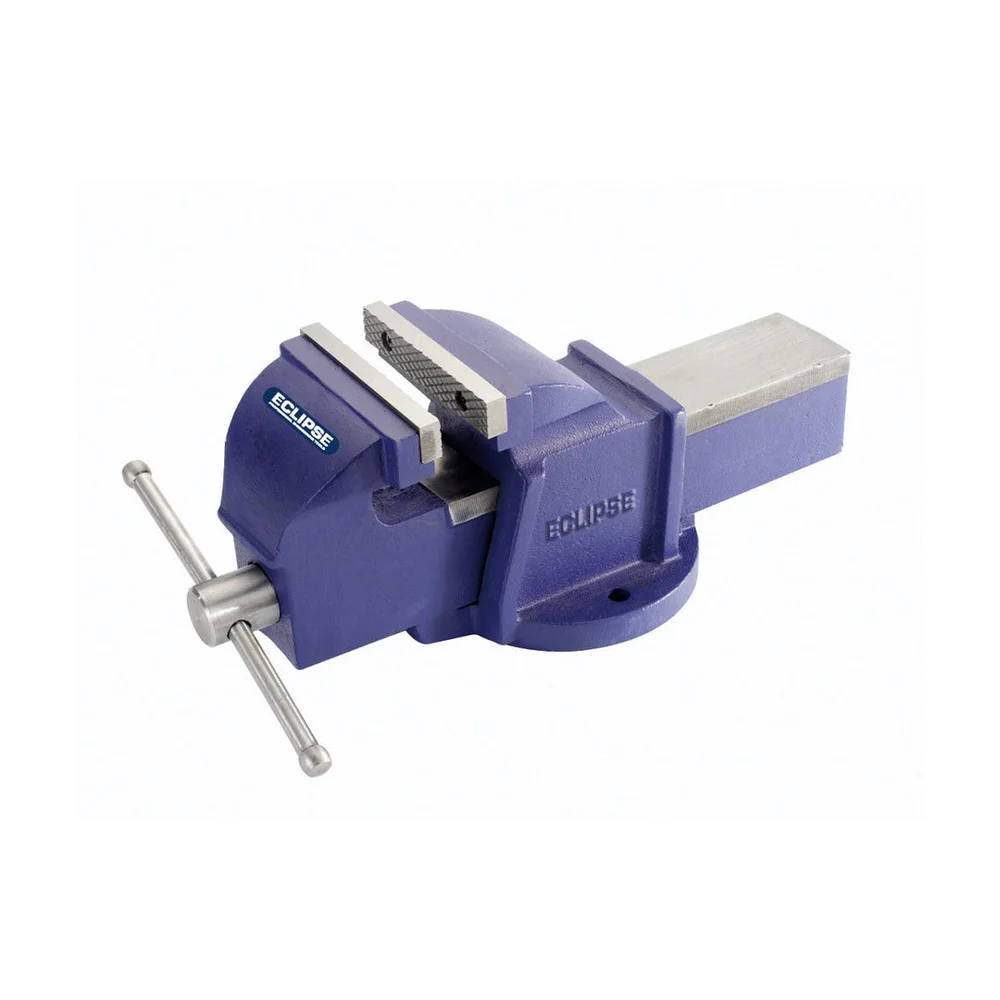

Eclipse EC-EMV1 Engineers Vice — 75mm Jaw
Part No: EC-EMV1 | Barcode: 5012095067207 | Brand: Eclipse
The Eclipse EC-EMV1 is a 75mm engineer’s bench vice built for metalworking, filing, sawing, drilling and general assembly. Its grey cast iron body and hardened steel replaceable jaw plates deliver 1500kgf of clamping force with a 82mm jaw opening, making it a dependable everyday vice for trade and home workshops around Geelong.
Eclipse EC-EMV1 — engineers vice 75mm available at Alltools Geelong. Shop our engineers vice 75mm range in Geelong.
75mm Jaw Width
82mm Opening
48mm Throat
1500kgf Clamping
Grey Cast Iron
Replaceable Jaw Plates
Key Features & Benefits
- Grey cast iron body and sliding jaw — high-mass casting absorbs hammering and vibration so heavy filing, sawing and bending stays steady.
- Hardened steel replaceable jaw plates — grip stock firmly and can be swapped out when worn rather than scrapping the whole vice.
- Precision milled slide — the moving jaw runs square and parallel to the fixed jaw for accurate, even clamping across the full opening.
- Fused tommy bar — bends before the vice is over-stressed, protecting the casting from damage if it is over-tightened.
- Bench-mount fixing holes — bolts solidly to any workbench for a stable engineering workstation.
When to Use This Vice
Choose the Eclipse EC-EMV1 75mm engineer’s vice for fitting, filing, sawing and assembly work where you need a square, parallel grip on metal stock. Step up to a larger jaw width for bigger workpieces and more clamping force, or down for lighter benches and finer work. The EC-EMV1 is a fixed-base engineer’s vice — for jobs that need to rotate to the operator, look at the Eclipse swivel-base workshop vices instead.
Authorised Australian Dealer — This Eclipse vice is sourced through Spear & Jackson Australia (the official Eclipse Professional Tools distributor) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Jaw Width | Jaw Opening | Throat Depth | Clamping Force | Barcode |
|---|---|---|---|---|---|
| EC-EMV1 ★ | 75mm | 82mm | 48mm | 1500kgf | 5012095067207 |
| EC-EMV3 | 100mm | 109mm | 63mm | 2000kgf | 5012095067214 |
| EC-EMV5 | 125mm | 136mm | 73mm | 2500kgf | 5012095067221 |
| EC-EMV6 | 150mm | 168mm | 86mm | 3000kgf | 5012095067238 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
Browse our full range of vices at Alltools Geelong.
