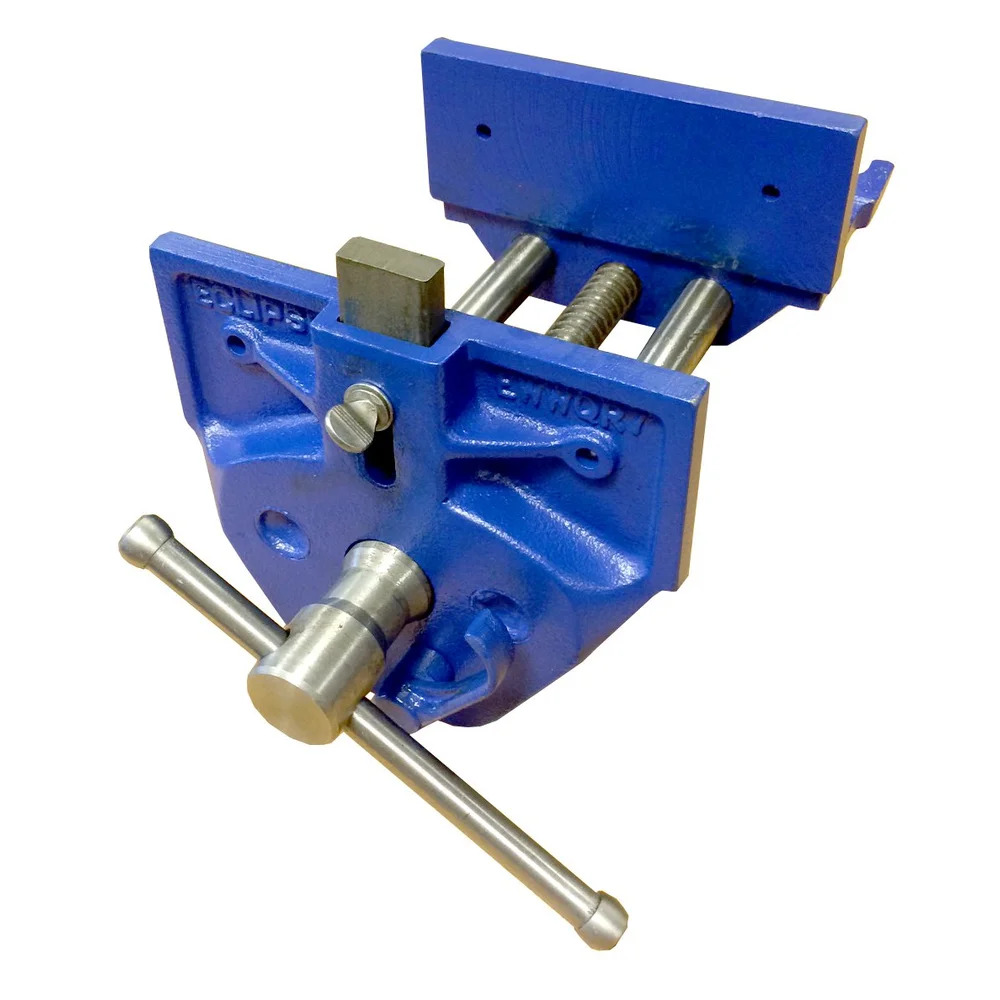

Eclipse EC-EWWQR7 Woodworking Vice — 178mm Quick Release
Part No: EC-EWWQR7 | Barcode: 5012095067252 | Brand: Eclipse
The Eclipse EC-EWWQR7 is a 178mm woodworking bench vice for holding timber while planing, sawing, chiselling and assembling joinery. It uses a quick-release trigger that lets you slam the jaw open or shut in seconds before fine-tightening, with a precision-machined grey cast iron body and an adjustable front dog for tail-vice clamping — a workshop staple for Geelong woodworkers and cabinetmakers.
Eclipse EC-EWWQR7 — woodworking vice 178mm quick available at Alltools Geelong. Shop our woodworking vice 178mm quick range in Geelong.
178mm Jaw Width
202mm Opening
90mm Throat
Quick Release
Cast Iron
Front Dog
Key Features & Benefits
- Quick-release trigger — opens and closes the vice rapidly without winding the main screw, then locks in for full clamping pressure.
- Precision-machined grey cast iron body — the cast front and body stay parallel under load for even, mar-free clamping on timber.
- Steel slide rods and single-start main screw — guide the jaw smoothly and squarely across the full opening.
- Adjustable front dog (stop) — pops up to clamp long boards against a bench stop, turning the vice into a tail-vice for edge planing.
- Fused tommy bar — bends before the vice is over-stressed, protecting the casting.
When to Use This Vice
Mount the Eclipse EC-EWWQR7 under the front edge of a workbench to hold boards for planing, sawing, dovetailing and glue-ups. The quick-release models open and close fast for repetitive work, while the plain-screw model gives the most economical, fuss-free clamping. Step up to the 230mm EC-EWWQR9 for wider stock and a deeper throat.
Authorised Australian Dealer — This Eclipse vice is sourced through Spear & Jackson Australia (the official Eclipse Professional Tools distributor) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Jaw Width | Jaw Opening | Throat Depth | Mechanism | Barcode |
|---|---|---|---|---|---|
| EC-EWWPS7 | 178mm | 202mm | 80mm | Plain Screw | 5012095074571 |
| EC-EWWQR7 ★ | 178mm | 202mm | 90mm | Quick Release | 5012095067252 |
| EC-EWWQR9 | 230mm | 260mm | 106mm | Quick Release | 5012095067269 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
