TOOLMASTER

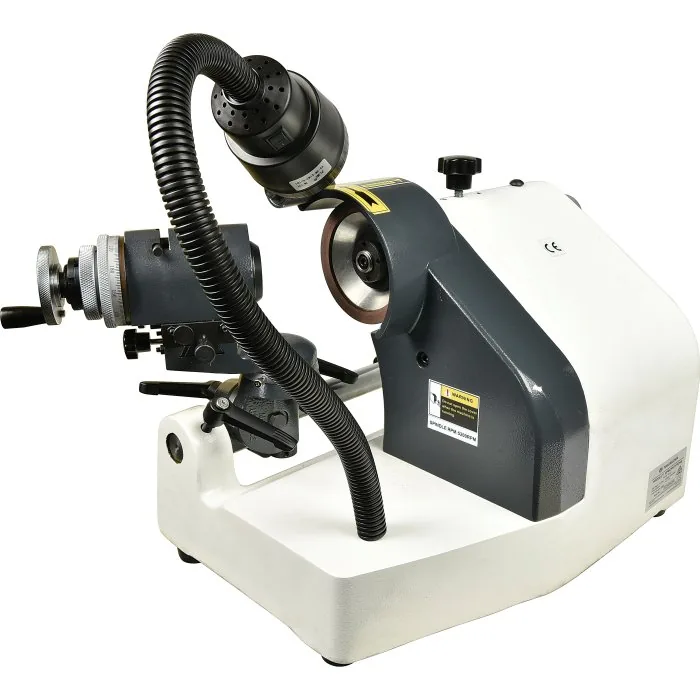

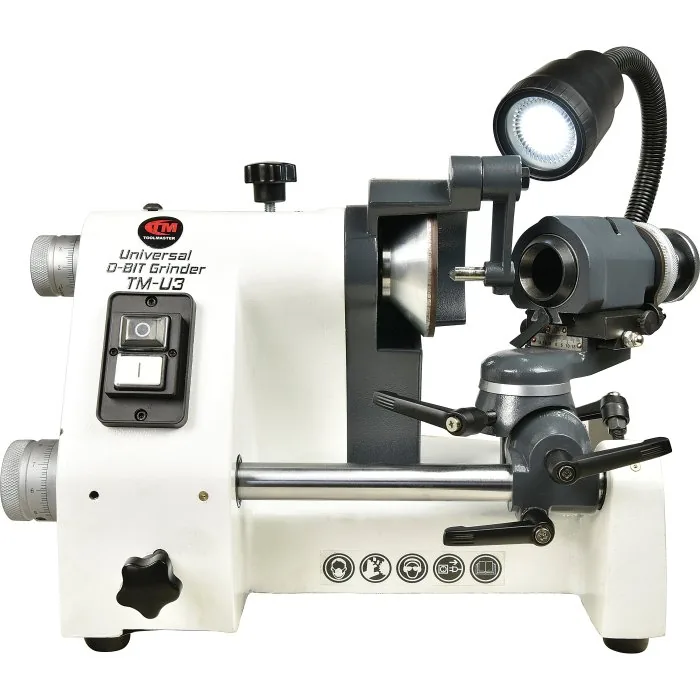

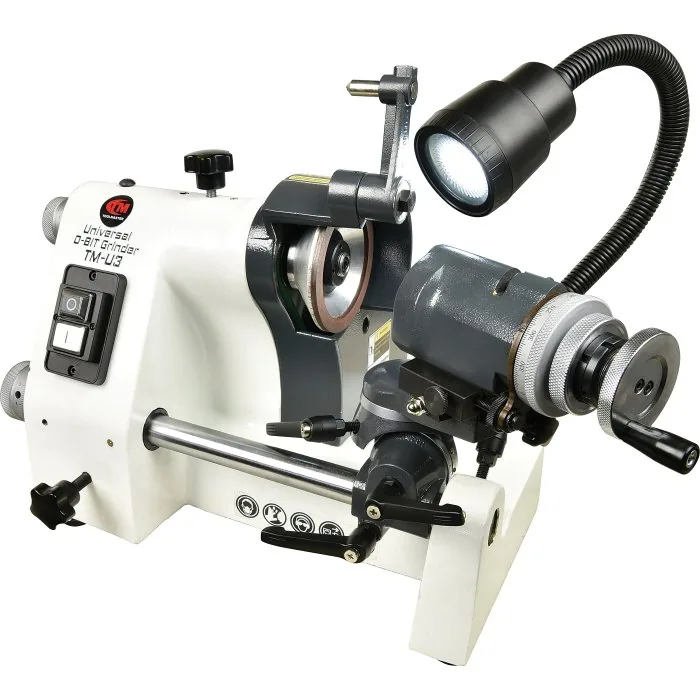

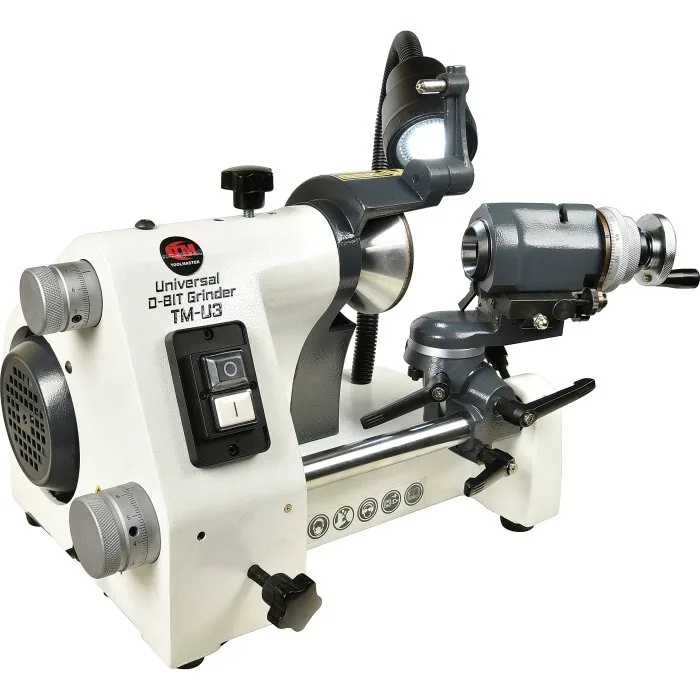

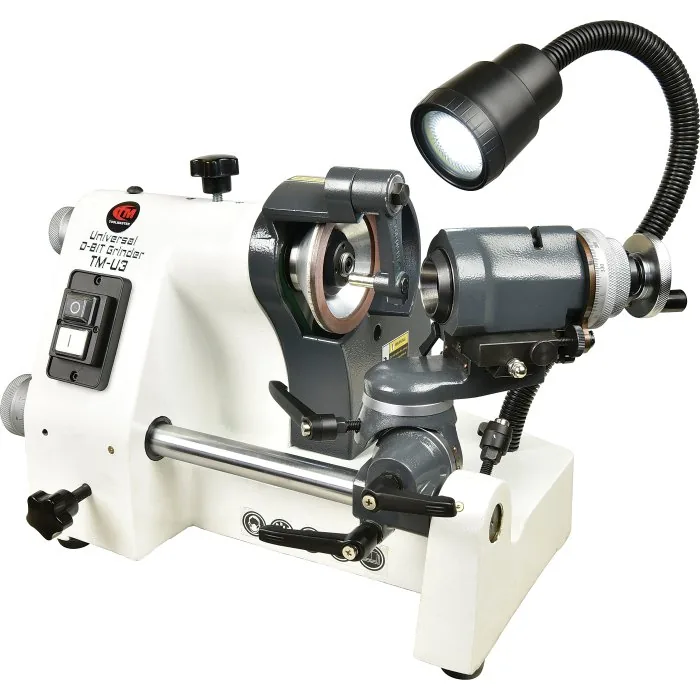

Universal D Bit Grinder — TM-U3, 370W, 240V Motor
Part No: G1975 | Barcode: 9344195019197 | Model: TM-U3

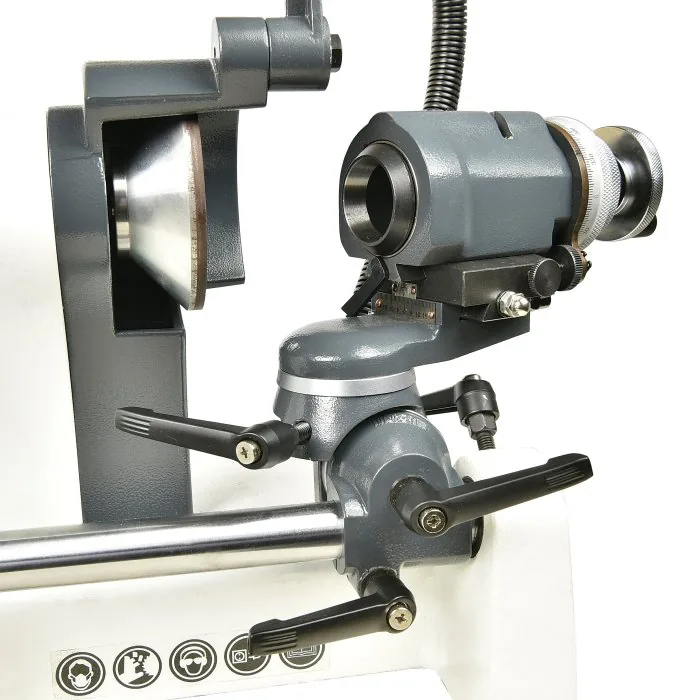

TOOLMASTER TM-U3 Universal D Bit Grinder (370W, 240V Motor). Used for grinding of HSS and carbide engraving cutters with single and multiple flutes in various shapes. The cutters are held by 5C collets in the end mill grinding attachment
Model TM-U3
370W, 240V Motor
Spindle Speed: 5200 rpm
Motor Power: 370 W
Voltage / Amperage: 240 / 10
Key Features & Benefits

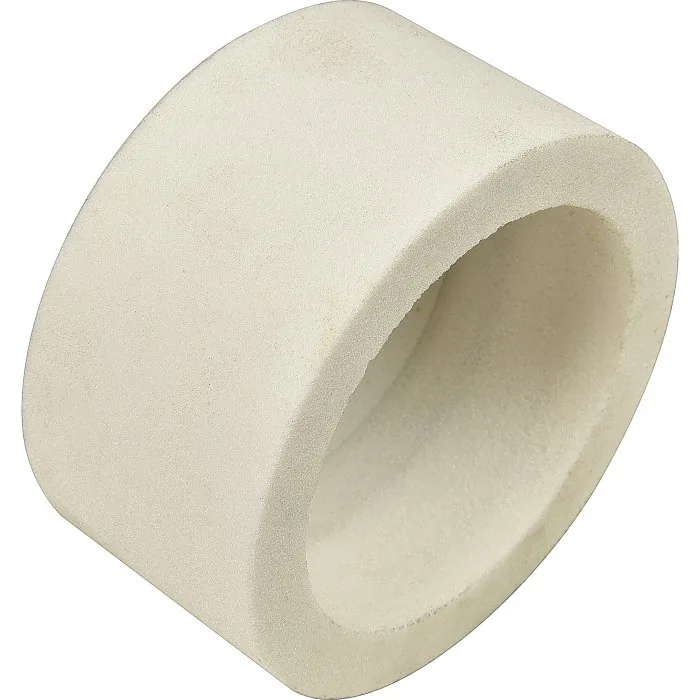

- Grinding wheel size 100 x 50 x 20mm
- Halogen Light 12V
- 370W, 240V motor
- Taper angles 0 – 180º
- Relief angle 0 – 45º
- Negative angle 0 – 26º
- Metric & imperial 5C collets
- Grinding speed 5200rpm
About This Product
Used for grinding of HSS and carbide engraving cutters with single and multiple flutes in various shapes. The cutters are held by 5C collets in the end mill grinding attachment With the accessories provided the universal “D” bit grinder can be set up to grind end mills, slot drills and drill bits. For more information see the manual under “Downloads” This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code G1975) for collection in store.
In the Box
- Wheel dresser with diamond
- Wheel flange mounted
- Diamond wheel

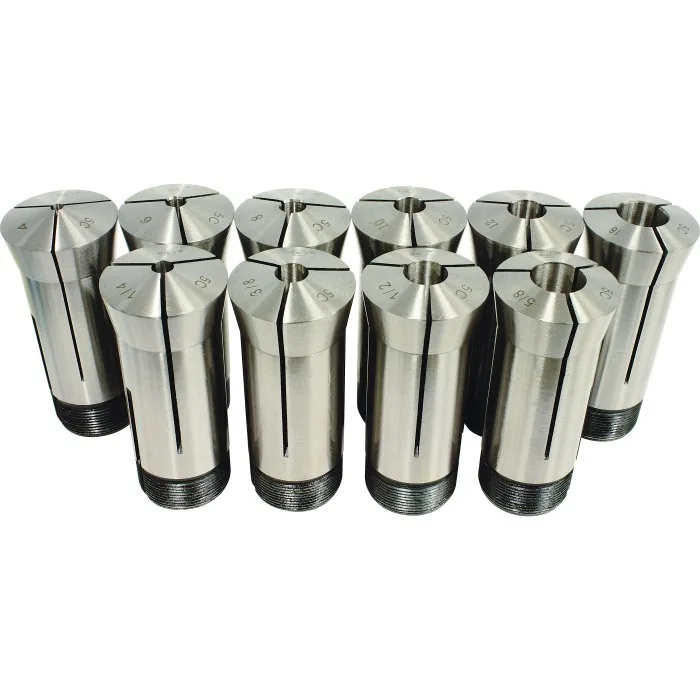

- 4, 6, 8, 10, 12, 16mm, 1/4″, 3/8″, 1/2″ & 5/8″ 5C collets
- Aligning finger

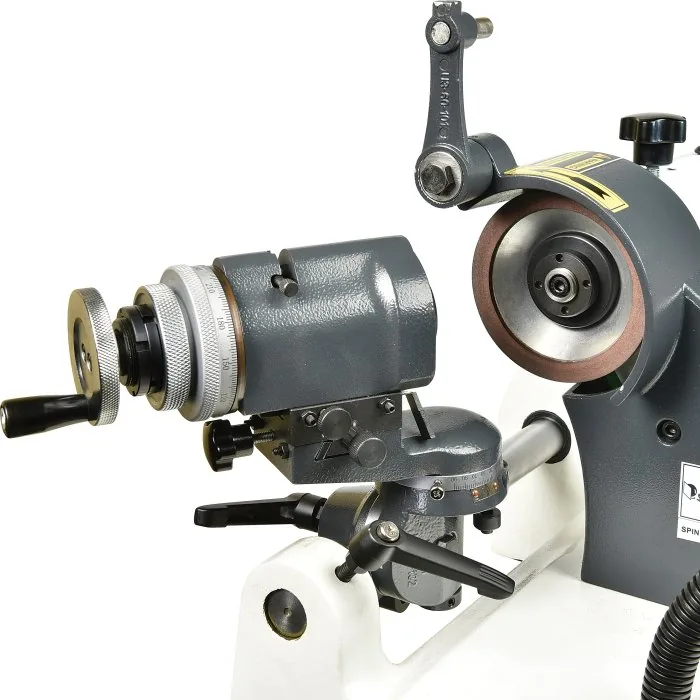

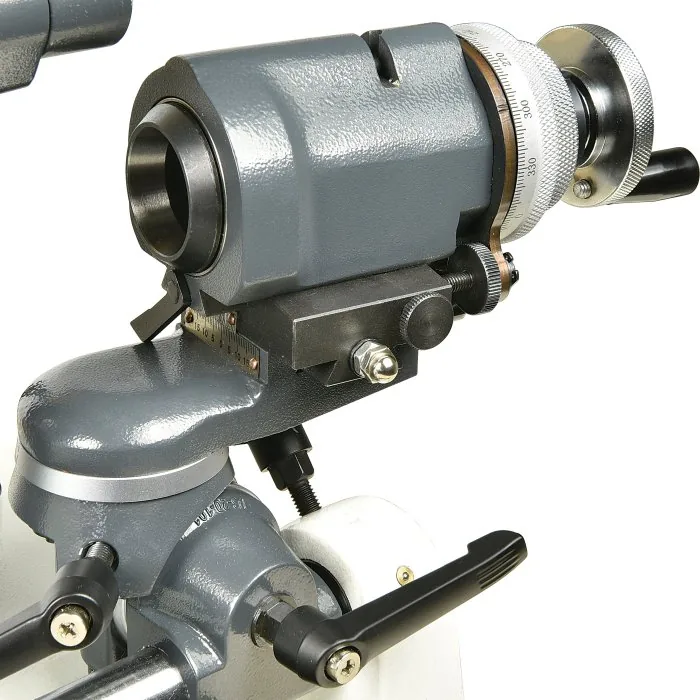

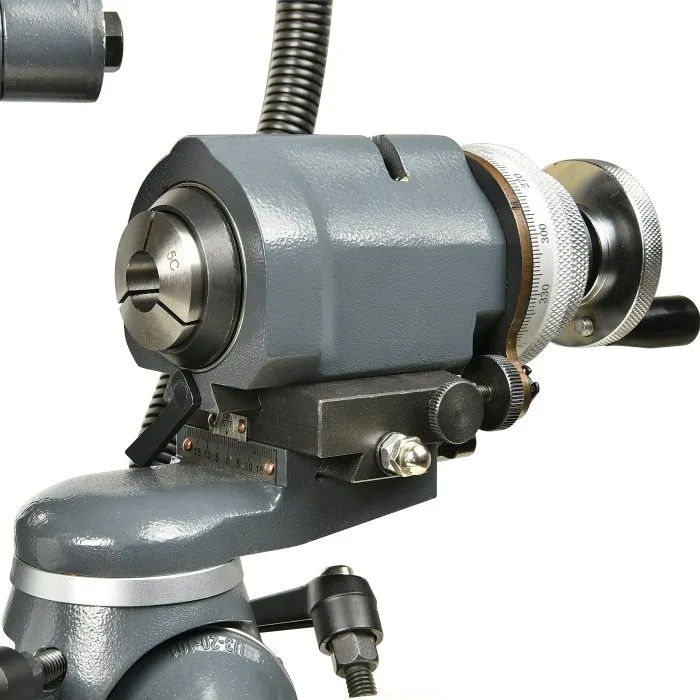

- End mill grinding attachment

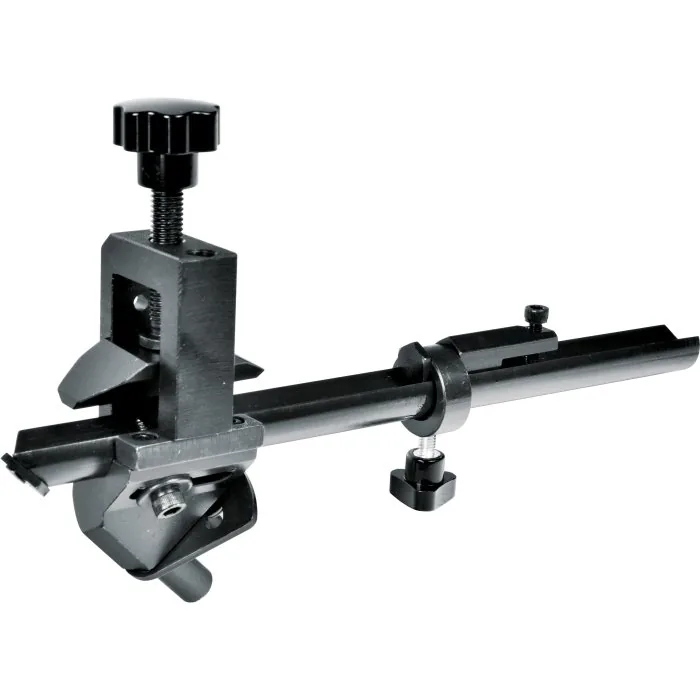

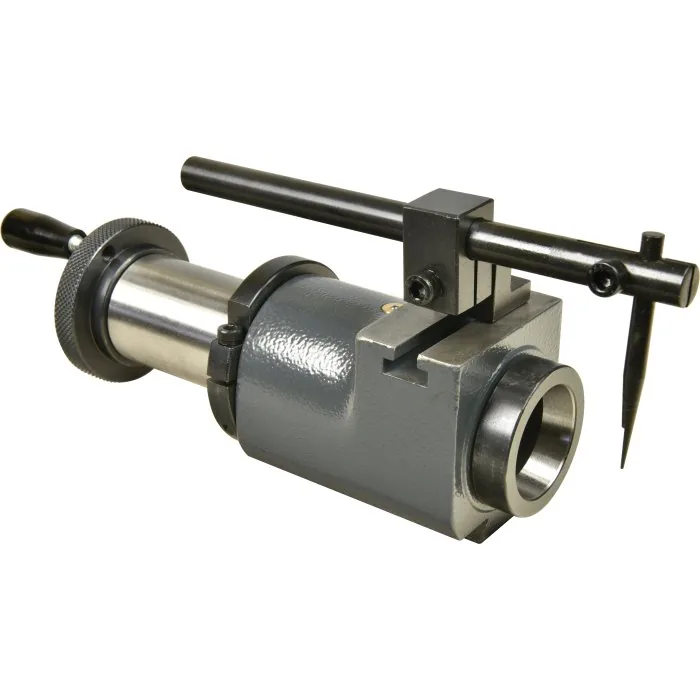

- Drill bit grinding attachment

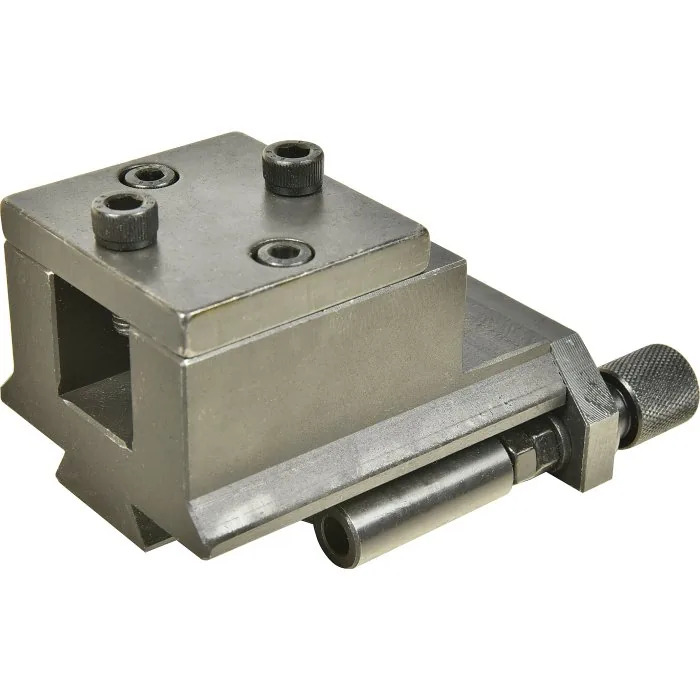

- Lathe tool grinding attachment
Product Specifications
| Specification | Detail |
|---|---|
| Taper Angle (deg) | 0 – 180 |
| Relief Angle (deg) | 0 – 45 |
| Negative Angle (deg) | 0 – 26 |
| Collet Type | 5C |
| Spindle Speed (rpm) | 5200 |
| Motor Power (W) | 370 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 52 |
