Harlingen

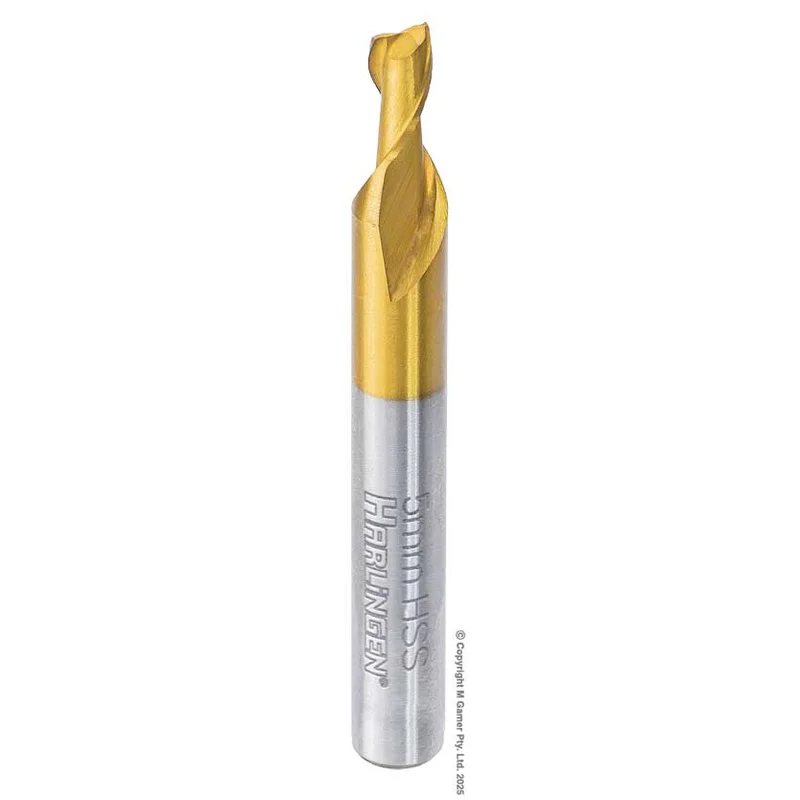

Harlingen H-11-048-T003 2-Flute Slot Drill / End Mill — 5mm, HSS TiN-Coated
Part No: H-11-048-T003 | Barcode: H-11-048-T003
The Harlingen H-11-048-T003 is a 5mm two-flute HSS slot drill / end mill with a TiN coating. Centre-cutting with a Weldon shank to DIN 844, the two-flute geometry clears chips freely for slotting, keyways and plunge cuts.
5mm Cutting Dia
2 Flutes
HSS
TiN-Coated
Weldon Shank
DIN 844
Centre-Cutting
Suitable For
Steel
Cast Iron
Non-Ferrous Metals
Key Features & Benefits
- 2-flute design — wide flutes clear chips in deep slots and pockets, reducing clogging.
- Centre-cutting — plunges straight into material like a drill — ideal for slots and keyways.
- TiN coating — longer edge life and reduced friction in steel and cast iron.
- Weldon shank, DIN 844 — secure side-lock grip and a standardised, repeatable fit.
When to Use This Tool
Reach for the H-11-048-T003 to cut slots, keyways and pockets, and for plunge milling. For finishing passes and side milling, a 4-flute end mill leaves a finer finish.
Pro Tip: Two-flute end mills can plunge like a drill — handy for starting pockets without a pilot hole.
Authorised Australian Dealer — This product is sourced from Gamer Australia and is backed by full Australian supplier warranty and local support.
Product Specifications
| Part No. | Cutting Dia. | Length | Flutes |
|---|---|---|---|
| H-11-048-T001 | 3mm | Standard | 2 |
| H-11-048-T002 | 4mm | Standard | 2 |
| H-11-048-T003 ★ | 5mm | Standard | 2 |
| H-11-048-T004 | 6mm | Standard | 2 |
| H-11-048-T006 | 8mm | Standard | 2 |
| H-11-048-T008 | 10mm | Standard | 2 |
| H-11-048-T010 | 12mm | Standard | 2 |
| H-11-048-T011 | 14mm | Standard | 2 |
| H-11-048-T012 | 16mm | Standard | 2 |
| H-11-048-T014 | 20mm | Standard | 2 |
★ You are viewing the highlighted variant. Other sizes in this range are also available.
Browse our full range of end mills at Alltools Geelong.
