Harlingen

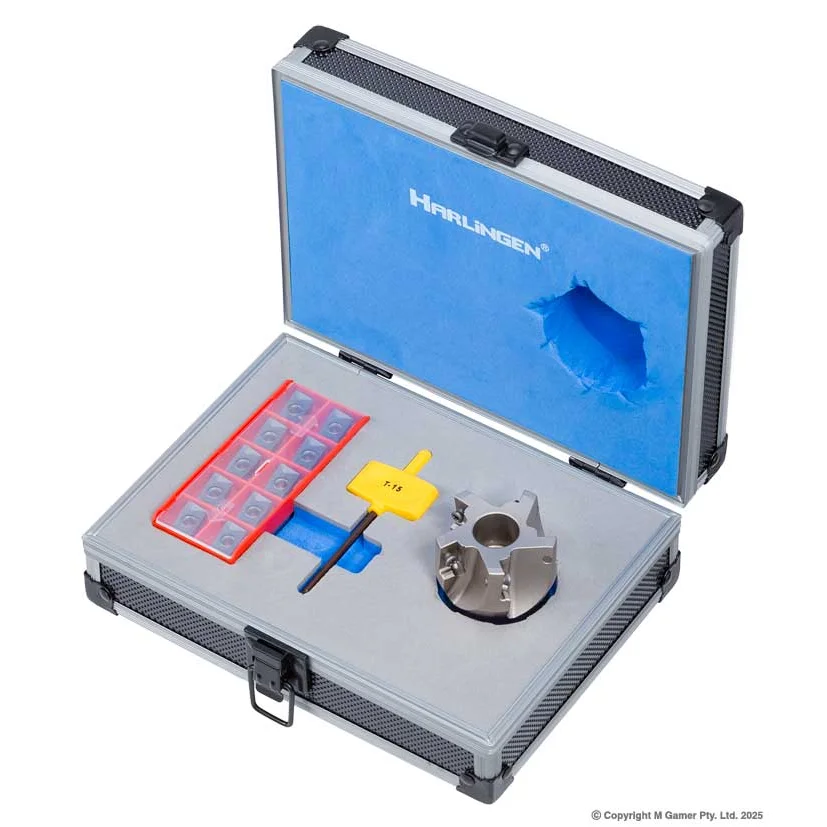

Harlingen 90° Indexable Face Mill Set — 50mm with 10 APKT16 Inserts
Part No: H-11-374-S40-2 | Barcode: 9346967111771 | Brand: Harlingen
11-piece face mill set: 50mm 90° cutter body plus ten TiAlN-coated APKT16 carbide inserts. The 90° lead delivers true square shoulders, perfect for slotting, shouldering and pocketing in steel and cast iron.
50mm Diameter
90° Lead Angle
11-Piece Set
APKT16 Inserts
TiAlN Coated
22mm Bore
Compatible Materials
Carbon Steel
Alloy Steel
Cast Iron
Stainless Steel
Key Features & Benefits
- 90° lead angle for square shoulders — Cuts a true 90° shoulder against a wall — essential for shouldering, slotting and pocketing where the floor must meet the side cleanly.
- Ten APKT16 inserts in the box — Ready to run out of the box plus enough spare edges for a long production run.
- TiAlN-coated carbide — Hard golden-violet coating resists wear at high cutting temperatures, suits dry or coolant cutting in steel.
- Nickel-plated cutter body — Resists rust and scale build-up in workshop environments.
- 22mm bore with 10.4mm keyway — Standard arbor fit for most CNC and manual milling machines using 22mm shell mill arbors.
When to Use This Cutter
Choose H-11-374-S40-2 when shouldering, slotting or pocketing on a milling machine with a 22mm arbor and you need a square 90° wall against the cutter. Better than a 45° face mill for any job where the shoulder face matters.
Authorised Australian Distributor — This product is sourced via Australia’s Harlingen distributor Gamer Industries and is backed by full Australian warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Cutting Diameter | 50 mm |
| Bore Diameter | 22 mm |
| Body Height | 40 mm |
| Keyway Width | 10.4 mm |
| Lead Angle | 90° |
| Insert | APKT16 (TiAlN) |
| Spare Inserts | 10 |
