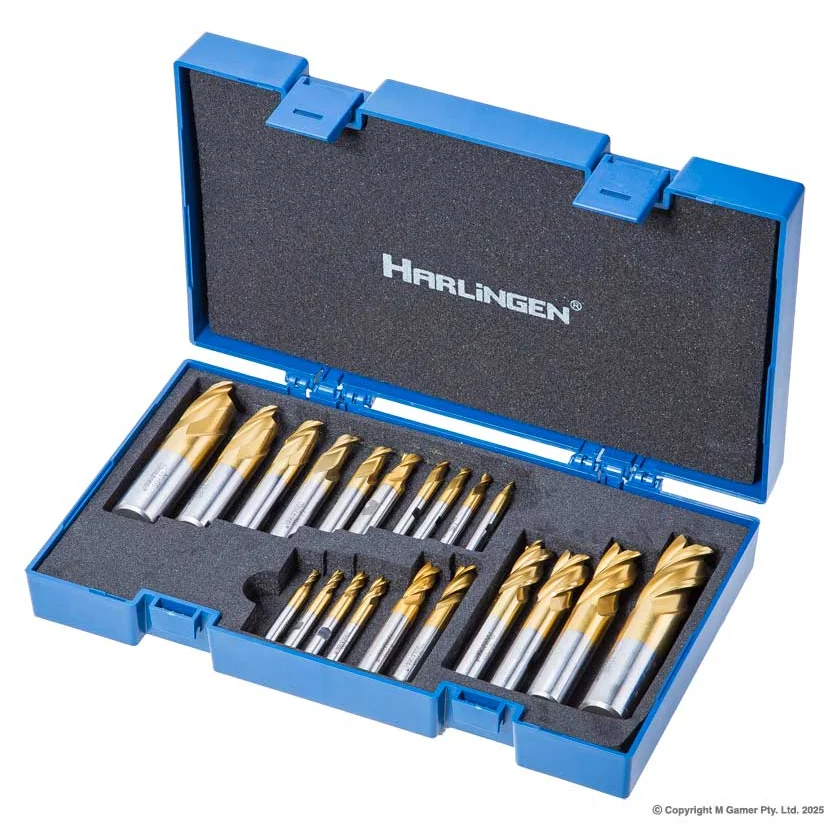

Harlingen 20-Piece TiN-Coated HSS End Mill Set — H-522-51-2S1
Part No: H-522-51-2S1 | Barcode: 9346967111733 | Brand: Harlingen
A complete TiN-coated HSS end mill set with twenty cutters across both two-flute and four-flute geometries in 3, 4, 5, 6, 8, 10, 12, 14, 16 and 20mm diameters. Centre-cut, Weldon shank, DIN 844 standard for general workshop milling.
20 End Mills
2 & 4 Flute
10 Diameters: 3-20mm
TiN Coated HSS
Centre-Cut
Weldon Shank
DIN 844
Compatible Materials
Cast Iron
General-Purpose Steel
Stainless Steel
Aluminium
Brass
Key Features & Benefits
- 20 cutters covering 10 diameters — Two-flute and four-flute versions in 3, 4, 5, 6, 8, 10, 12, 14, 16 and 20mm — one box, almost every job covered.
- Two-flute for slotting and aluminium — Open flute design clears chips fast in soft materials and full-width slots.
- Four-flute for steel and finishing — More cutting edges per revolution gives better surface finish and higher feeds in steel.
- TiN coating — Lower friction and higher surface hardness than uncoated HSS — extends life and runs cooler.
- Weldon shank, DIN 844 standard — Locks positively in side-lock holders so the cutter can’t pull out under heavy axial load.
When to Use This Tool
H-522-51-2S1 is the foundation tooling kit for any small workshop, training school or home machinist setting up a manual or benchtop CNC mill. The Weldon shanks suit traditional side-lock holders, and the TiN coating gives meaningful life over plain HSS.
Pro Tip: Use the four-flute cutters for finishing passes on steel and reach for the matching two-flute when you need to plunge or slot in aluminium — the wider flute on a two-flute keeps gummy aluminium chips from welding to the cutter.
Authorised Australian Distributor — This product is sourced via Australia’s Harlingen distributor Gamer Industries and is backed by full Australian warranty and local support.
Product Specifications
| Diameter | Two-Flute | Four-Flute | Coating |
|---|---|---|---|
| 3 mm | ✓ | ✓ | TiN HSS |
| 4 mm | ✓ | ✓ | TiN HSS |
| 5 mm | ✓ | ✓ | TiN HSS |
| 6 mm | ✓ | ✓ | TiN HSS |
| 8 mm | ✓ | ✓ | TiN HSS |
| 10 mm | ✓ | ✓ | TiN HSS |
| 12 mm | ✓ | ✓ | TiN HSS |
| 14 mm | ✓ | ✓ | TiN HSS |
| 16 mm | ✓ | ✓ | TiN HSS |
| 20 mm | ✓ | ✓ | TiN HSS |
Browse our full range of metal lathes & tooling at Alltools Geelong.
