Milwaukee
M18 22 mm SDS Plus Rotary Hammer — 2.4 J, 3-Mode, Anti-Vibration
Part No: HD18H-0 | Barcode: 4892210117618

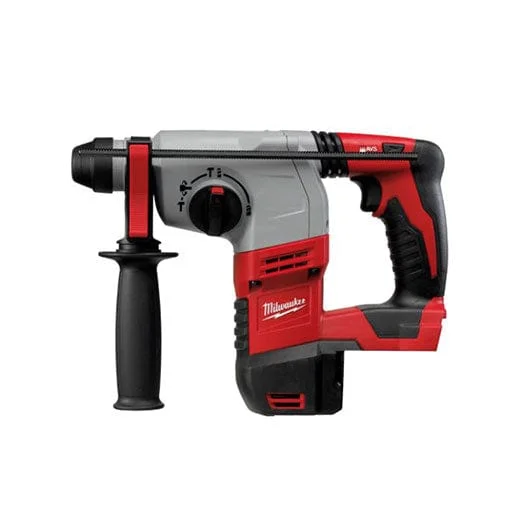

Milwaukee’s HD18H-0 is an 18V rotary hammer delivering 2.4 J of impact energy with a 22 mm concrete drilling capacity. The 3-mode selector covers hammer drilling, rotation only, and hammer only, while the Anti-Vibration System (AVS) reduces operator fatigue during extended drilling sessions.
2.4 J Impact Energy
22 mm Concrete Capacity
4,200 BPM
1,400 RPM
3-Mode Operation
AVS Anti-Vibration
18V M18 Platform
Suitable For
Concrete
Masonry
Brick
Block
Steel
Timber
Key Features & Benefits
- 2.4 J Impact Energy — delivers 10% faster drilling and 35% harder hitting than previous models, powering through concrete for anchor holes and fixings up to 22 mm.
- 3-Mode Selector — switch between rotary hammer, rotation only, and hammer only for drilling, driving, and light chiselling applications.
- Anti-Vibration System (AVS) — internal dampening reduces vibration transmitted to the operator, improving comfort and extending safe working time on long sessions.
- Mechanical Clutch — protects the motor and the operator if the bit jams in reinforcement or aggregate, decoupling the drive before kickback occurs.
- SDS Plus Chuck — quick tool-free bit changes with the industry-standard SDS Plus system, compatible with bits from all major manufacturers.
- Digital Power Management — prevents damage to the tool in harsh jobsite conditions by monitoring and managing power delivery in real time.
When to Use This Rotary Hammer
The HD18H-0 is a capable mid-range cordless rotary hammer for trades who drill into concrete and masonry regularly but do not need the premium features of the FUEL range. Its 2.4 J output and 22 mm capacity cover Dynabolts, sleeve anchors, and chemical anchors up to M12. The AVS system makes it more comfortable than basic models for extended use. For heavier applications or 24 mm+ capacity, step up to the M18 FUEL rotary hammer range. The HD18H-0 offers good value on the M18 platform for trades who need occasional to moderate concrete drilling.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Tool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 18V |
| Impact Energy | 2.4 J |
| No-Load Speed | 0–1,400 RPM |
| Impacts Per Minute | 0–4,200 |
| Max Drilling — Concrete | 22 mm |
| Chuck Type | SDS Plus |
| Operating Modes | 3 (Drill / Hammer Drill / Hammer) |
| Overall Length | 299 mm |
| Weight (bare) | 2.81 kg |
| Motor | Brushed |
| Battery Platform | M18 REDLITHIUM |
| Warranty | 5 Years |
