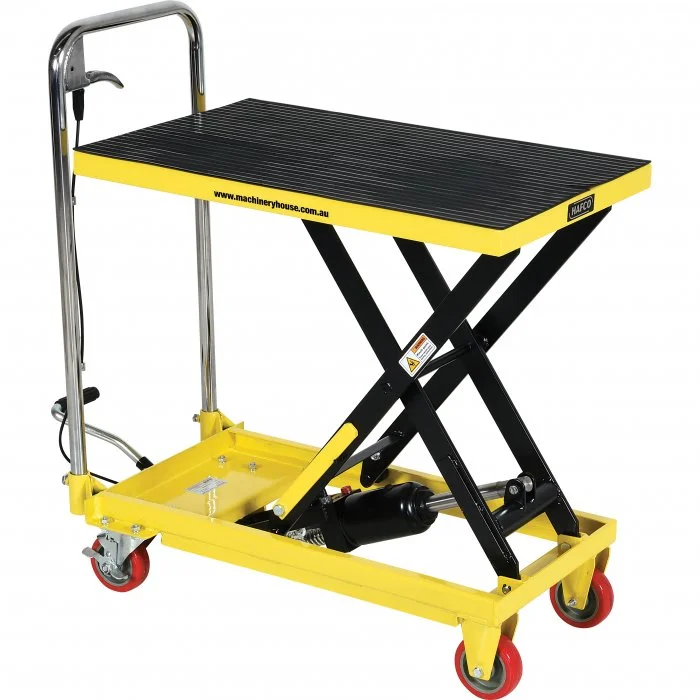

Hafco LT-227 Hydraulic Scissor Lift Trolley — 227kg Capacity
Part No: J049 / Barcode: 26962 / Range: Hafco Hydraulic Lifter Trolleys
Foot-operated hydraulic scissor lift trolley built to move and position loads up to 227kg without the back strain of manual lifting. Lifts from 225mm floor height to a comfortable 710mm working height and rolls smoothly on 100mm wheels with brake-equipped front swivels.
225–710mm Lift
708 × 450mm Table
Foot Pedal Hydraulics
4 × Ø100mm Wheels
Rubber Table Mat
Removable Handle
51kg Net
Key Features & Benefits
- Foot-pedal hydraulic lift — raises heavy loads to waist height with your hands free, reducing back strain in stores, workshops and loading docks.
- 227kg rated capacity — safely moves engine components, pallets of stock, machine parts or assembly sub-builds between stations.
- 225–710mm lift range — drops to floor level for easy loading and raises to a comfortable standing work height without rework benches.
- Smooth lowering lever — hand-operated release valve on the handle gives controlled, gradual descent rather than a sudden drop.
- Four 100mm wheels with twin brakes — front swivels with locking brakes keep the trolley stationary once positioned under load.
- Rubber table mat included — grips the load and protects painted or polished surfaces during transport.
- Removable steering handle — folds away for compact storage in tight workshops and delivery vans.
When to Use
Ideal for mechanical workshops moving gearboxes, diffs and engine ancillaries; retail stores restocking heavy goods from floor to shelf; and assembly lines where components need to travel at a consistent working height. The 227kg rating and 708 × 450mm table suit single-item lifts up to medium pallet footprints — not a full timber pallet.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | J049 ★ |
| Model | LT-227 |
| Load Capacity | 227 kg |
| Minimum Lift Height | 225 mm |
| Maximum Lift Height | 710 mm |
| Table Size (L × W) | 708 × 450 mm |
| Overall Dimensions | 860 × 510 × 315 mm |
| Wheel Diameter | Ø100 mm (2 fixed, 2 swivel with brakes) |
| Lift Mechanism | Foot-operated hydraulic |
| Net Weight | 51 kg |
| Warranty | 1 Year |
★ You are viewing this product.
Browse our full range of trolleys at Alltools Geelong.
