Description
TOOLMASTER

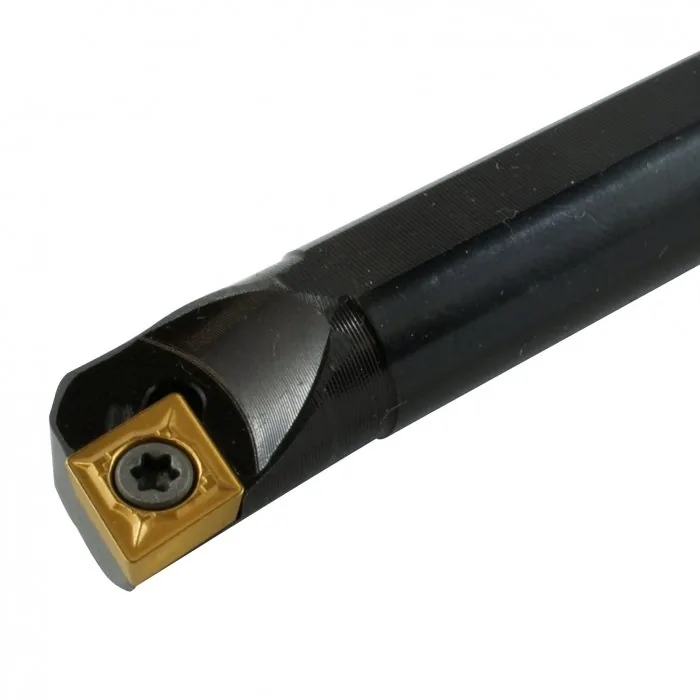

Right Hand Boring Bar — S10K-SCLCR-06-12, Ø10mm Insert tip not included
Part No: L0201 | Barcode: 9344195011610 | Model: S10K-SCLCR-06-12
TOOLMASTER S10K-SCLCR-06-12 Right Hand Boring Bar (Ø10mm Insert tip not included). NOTE: Inserts NOT included with tool holders.
Model S10K-SCLCR-06-12
Ø10mm
Insert tip not included
Key Features & Benefits
- Positive rake boring with 95º approach angle
- Suitable for low powered machines
- Right hand tool holder suitable for turning towards the chuck
About This Product
NOTE: Inserts NOT included with tool holders. Use insert CCMT 60204 (L060) This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L0201) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Part Number – Style | SCLC |
| Size (mm) | 10 |
| Hand Type | RIGHT |
| B = Minimum Bore (mm) | 12 |
| D (mm) | 10 |
| F (mm) | 6 |
| L (mm) | 125 |
| K (deg) | 12º |
| Minimum Bore (mm) | 12 |
