TOOLMASTER

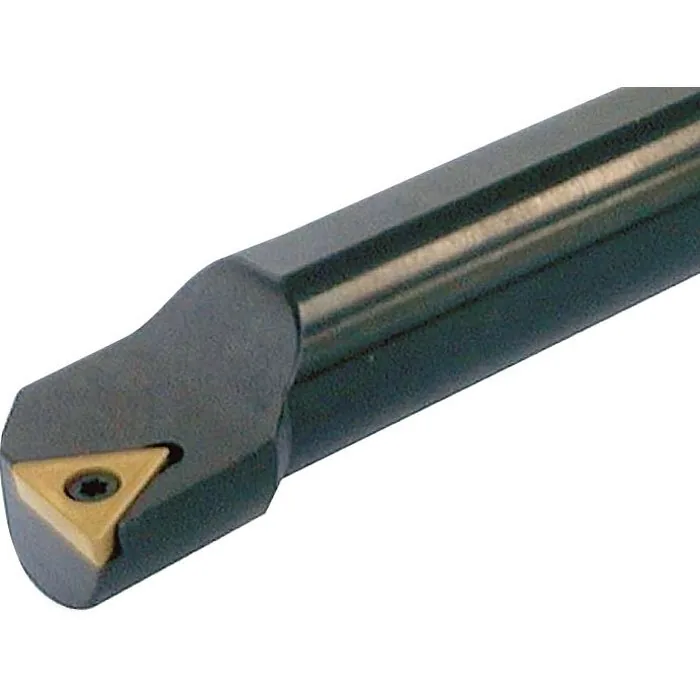

Right Hand Boring Bar — S16Q-STFCR-11, Ø16mm Insert tip not included
Part No: L022 | Barcode: 9344195014710 | Model: S16Q-STFCR-11
TOOLMASTER S16Q-STFCR-11 Right Hand Boring Bar (Ø16mm Insert tip not included). NOTE: Inserts NOT included with tool holders.
Model S16Q-STFCR-11
Ø16mm
Insert tip not included
Key Features & Benefits
- Positive rake boring bar with 90º approach angle
- Suitable for low powered machines
About This Product
NOTE: Inserts NOT included with tool holders. Use insert TCMT 110204 (L062) This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L022) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Part Number – Style | STFC |
| Size (mm) | 16 |
| Hand Type | RIGHT |
| B = Minimum Bore (mm) | 20 |
| D (mm) | 16 |
| F (mm) | 11 |
| L (mm) | 180 |
| K (deg) | 6º |
| Minimum Bore (mm) | 19 |
