Description
KYOCERA

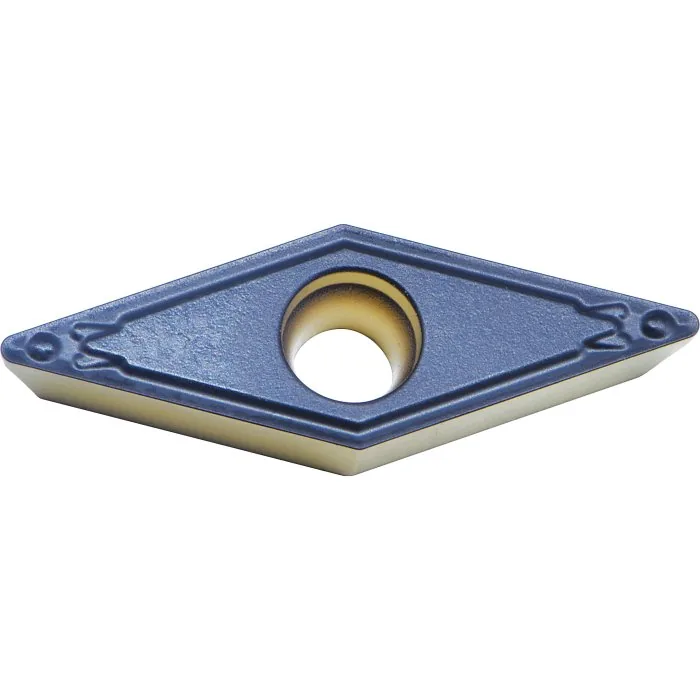

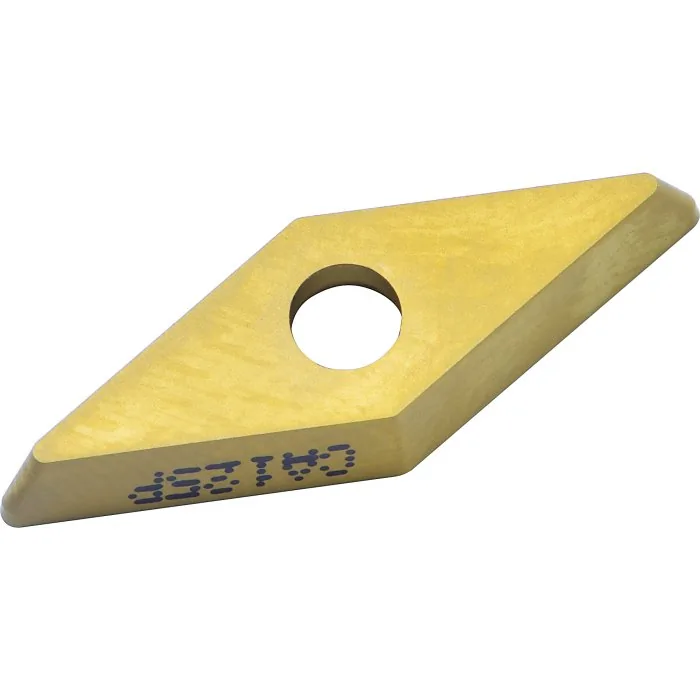

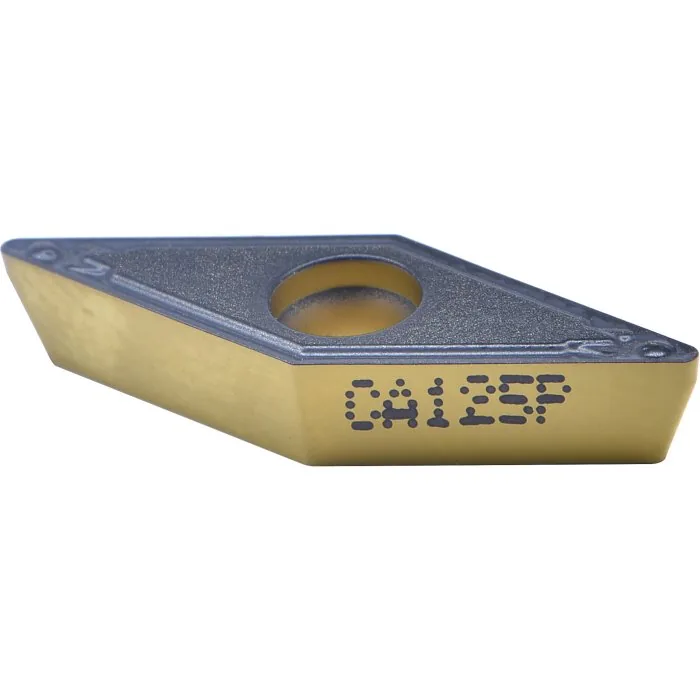

35° Rhombic Positive Turning Insert — VCMT110304HQ, Grade CA125P – General Purpose Steel 10 Inserts Per Pack
Part No: L0519 | Barcode: 9344195346651 | Model: VCMT110304HQ
KYOCERA VCMT110304HQ 35° Rhombic Positive Turning Insert (Grade CA125P – General Purpose Steel 10 Inserts Per Pack). CA125P Grade CVD Coated Carbide for Steel Suitable for continuous to heavy interrupted machining, these inserts are designed for general-purpose applications.
Model VCMT110304HQ
Grade CA125P – General Purpose Steel

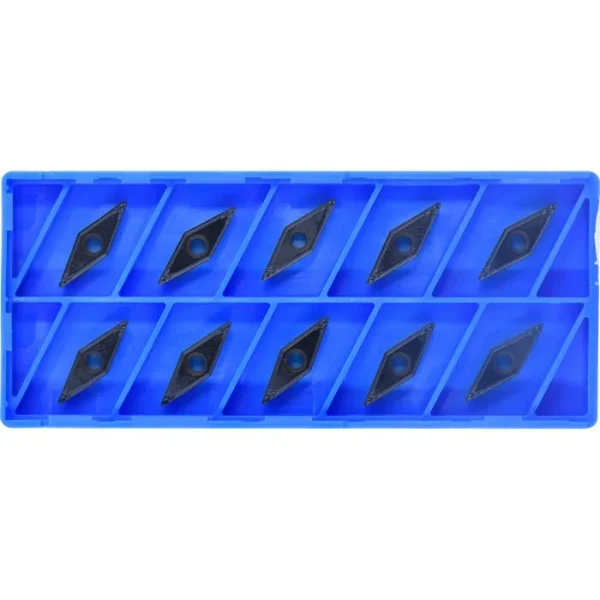

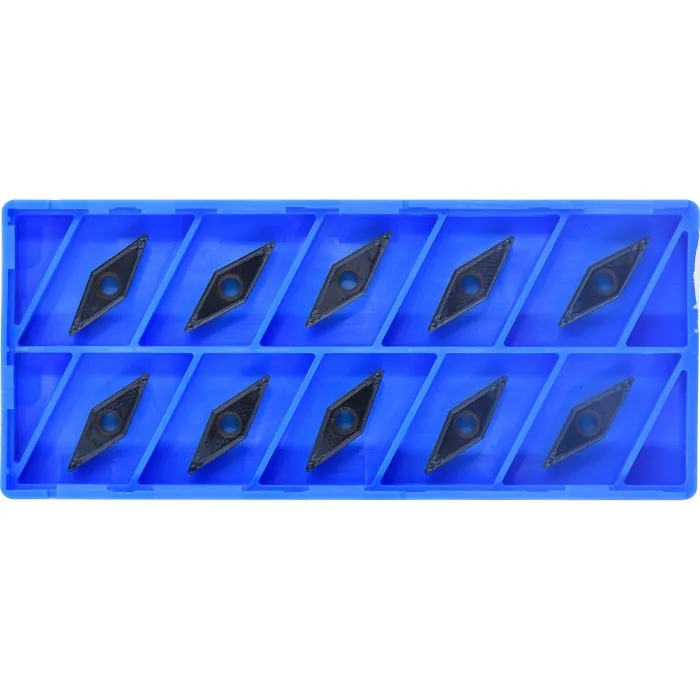

10 Inserts Per Pack
Key Features & Benefits
- Japanese Made
- CVD Coated Carbide with Thin Ultra-fine TiCN Coating
- 10 Inserts Per Pack
About This Product
CA125P Grade CVD Coated Carbide for Steel Suitable for continuous to heavy interrupted machining, these inserts are designed for general-purpose applications. HQ Chipbreaker General purpose chipbreaker for medium machining. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L0519) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Grade | CA125P |
| Application | General Purpose Steel |
| Pieces in Set (No.) | 10 |
| I.C. (mm) | 6.35 |
| Thickness (S) (mm) | 3.18 |
| Hole Diameter Ø (D1) (mm) | 2.75 |
| Corner Radius (RE) (mm) | 0.4 |
| Relief Angle (Deg) | 7° |
