L289 D1-6 Camlock Back Plate
,

L289 D1-6 Camlock Back Plate

$275.00

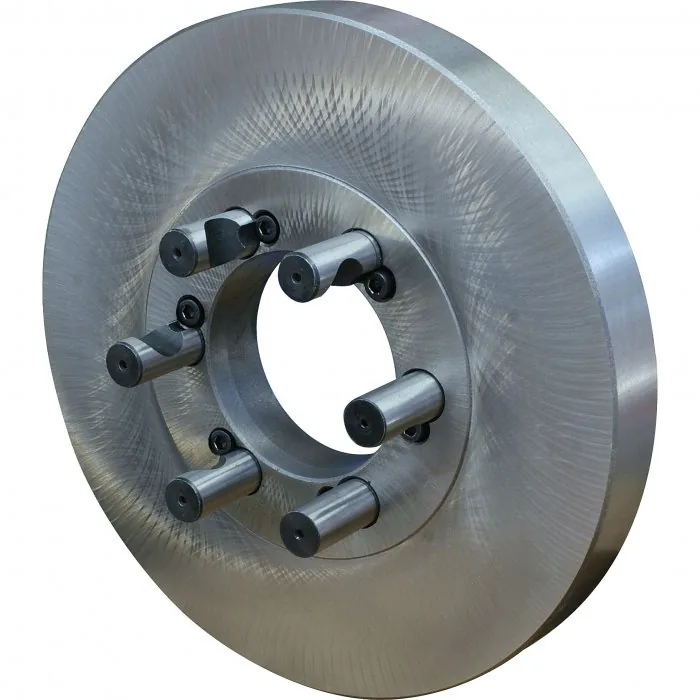

HAFCO D1-6 Camlock Back Plate (Ø320mm). Cast iron back plate finished machined on one side to fit D1-6 spindle nose. The other face and outside diameter need to be machined to suit chuck size.

Out of stock

Barcode: 9344195023415Brand: HAFCO Categories: ,

Description

HAFCO

D1-6 Camlock Back Plate — Ø320mm

Part No: L289  |  Barcode: 9344195023415

HAFCO D1-6 Camlock Back Plate (Ø320mm). Cast iron back plate finished machined on one side to fit D1-6 spindle nose. The other face and outside diameter need to be machined to suit chuck size.

Ø320mm

About This Product

Cast iron back plate finished machined on one side to fit D1-6 spindle nose. The other face and outside diameter need to be machined to suit chuck size. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L289) for collection in store.

Product Specifications

D1-6 Camlock Back Plate — Specifications
Specification Detail
Camlock D1-6
Flange Diameter (mm) Ø320
Bore (mm) Ø105
Nett Weight (kg) 22
Brand: HAFCOOrder Code: L289Barcode: 9344195023415Availability: Special order — collect in store
