Description
TOOLMASTER

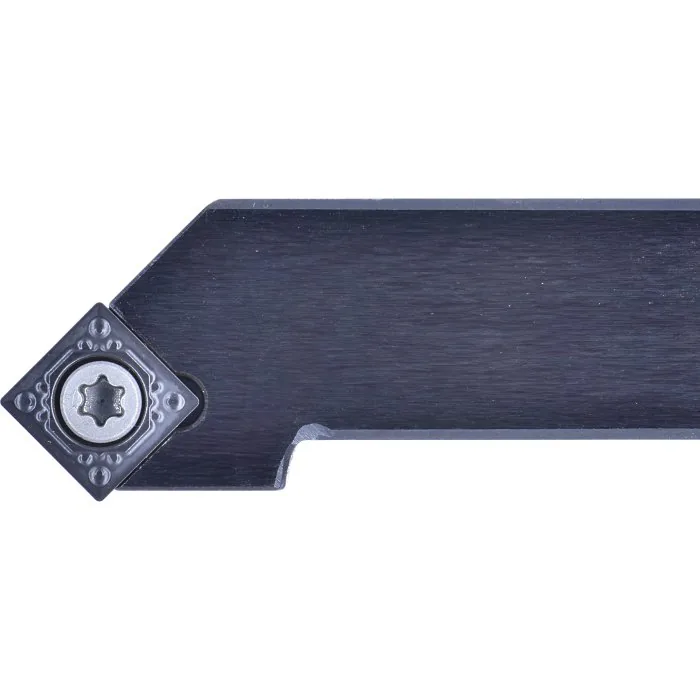

45º Square / Positive – Right Hand Turning Tool Holder — SSSCR-1616H09, 16mm Tool Height Insert tip not included
Part No: L4052 | Barcode: 9344195346620 | Model: SSSCR-1616H09
TOOLMASTER SSSCR-1616H09 45º Square / Positive – Right Hand Turning Tool Holder (16mm Tool Height Insert tip not included). Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.
Model SSSCR-1616H09
16mm Tool Height
Insert tip not included
Key Features & Benefits
- Toolholder with 45º approach angle for external turning and chamfering applications equipped with square positive inserts
- Right hand tool holder suitable for turning towards the chuck
About This Product
Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips. NOTE: Inserts not included with tool holders Use insert SCMT09T304HQ (L0515) This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L4052) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Part Number – Style | SSSC |
| Tool Height Size (mm) | 16 |
| Clamping Method of Insert | Center screw |
| Category | External turning |
| Connection style | Square shank |
| Back End Size | 16×16 |
| Application | Chamfer turning Turning |
| Hand Type | Right |
| Holder Style | 45º |
| Clearance Angle | Positive |
| Insert Type | SCMT09 |
| A (H) (mm) | 16 |
| B (mm) | 16 |
| C (LF) (mm) | 100 |
| LH (mm) | 20 |
| F (WF) (mm) | 20 |
