OPTIMUM

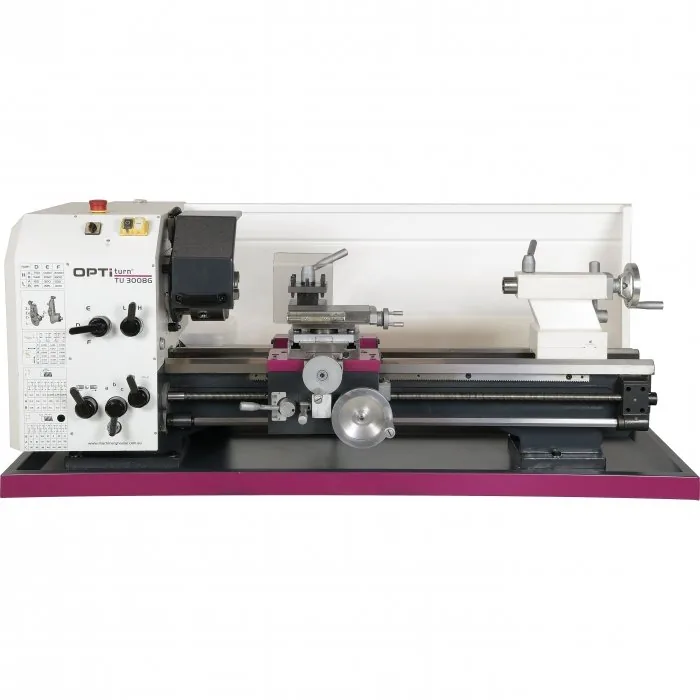

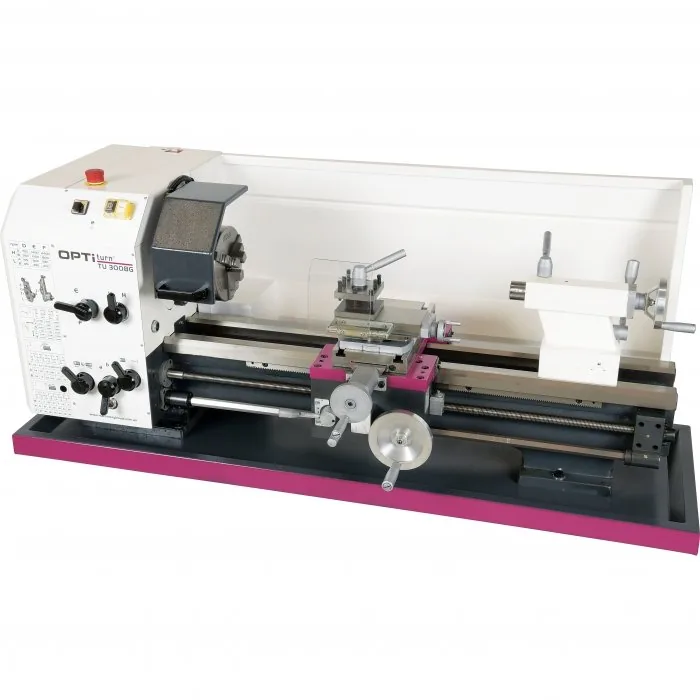

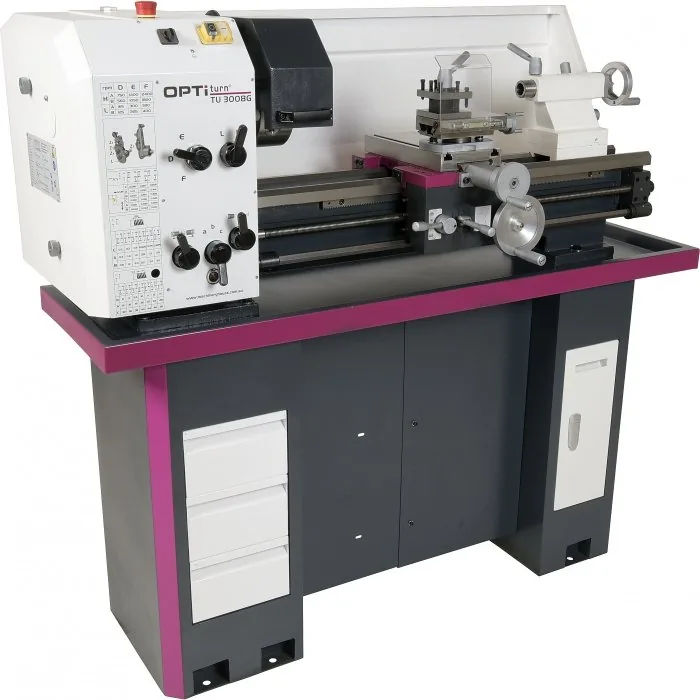

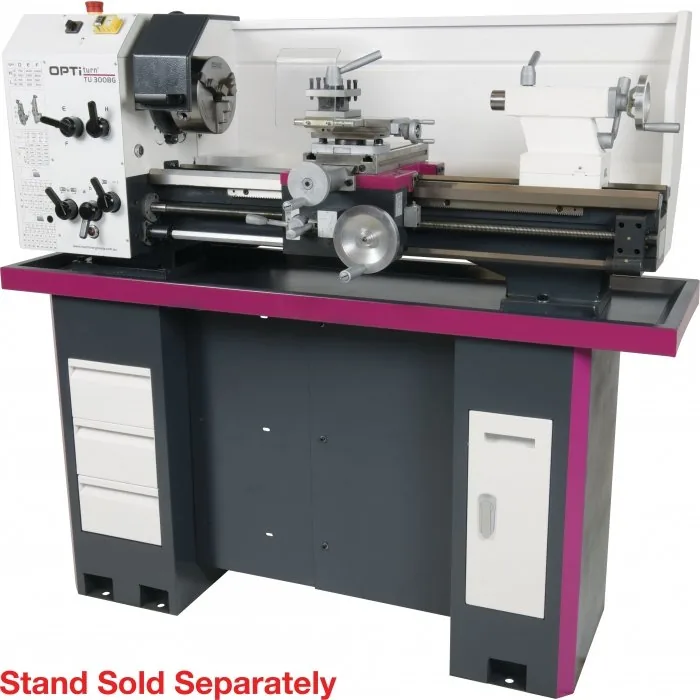

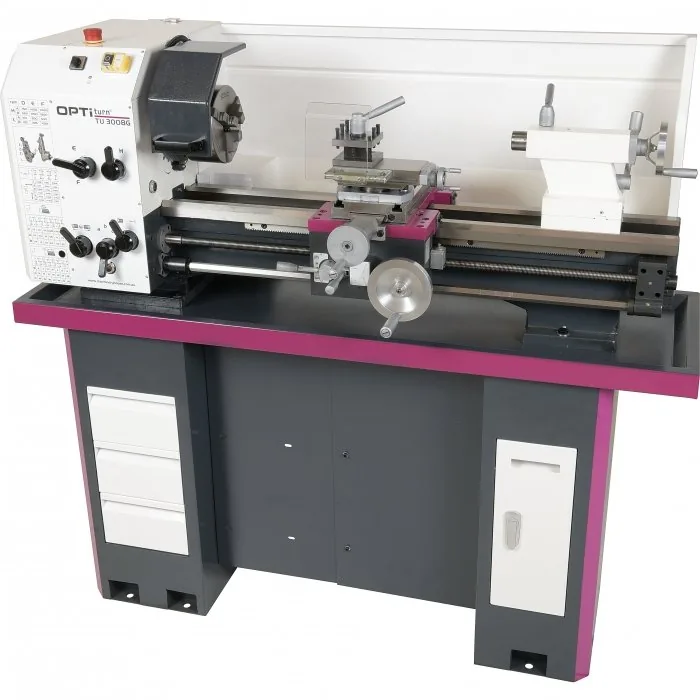

Opti-Turn Bench Lathe — TU-3008G, Ø300 x 700mm Turning Capacity – Ø38mm Spindle Bore 12 Geared Head Speeds 125 ~ 2400rpm
Part No: L691 | Barcode: 9344195083389 | Model: TU-3008G
OPTIMUM TU-3008G Opti-Turn Bench Lathe (Ø300 x 700mm Turning Capacity – Ø38mm Spindle Bore 12 Geared Head Speeds 125 ~ 2400rpm). This new TU-3008G model geared head lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer for small component manufacturer. A very rigid…
Model TU-3008G
12 Geared Head Speeds 125 ~ 2400rpm
Swing Over Bed: 300 mm
Spindle Bore: 38 mm
Swing Over Cross-slide: 190 mm
Spindle Nose Size or Type: D1-4
Headstock Spindle Taper: 5 MT
Key Features & Benefits

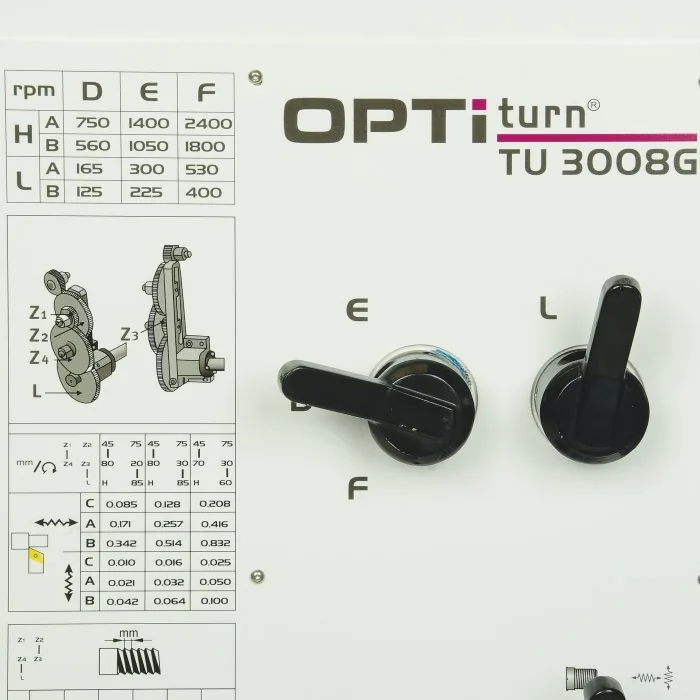

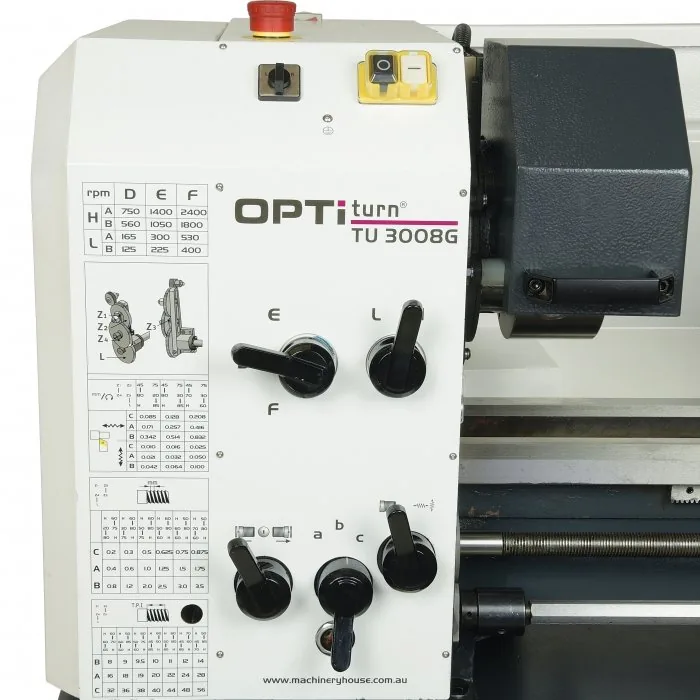

- Geared headstock for quick change of 12 spindle speeds 125-2400rpm

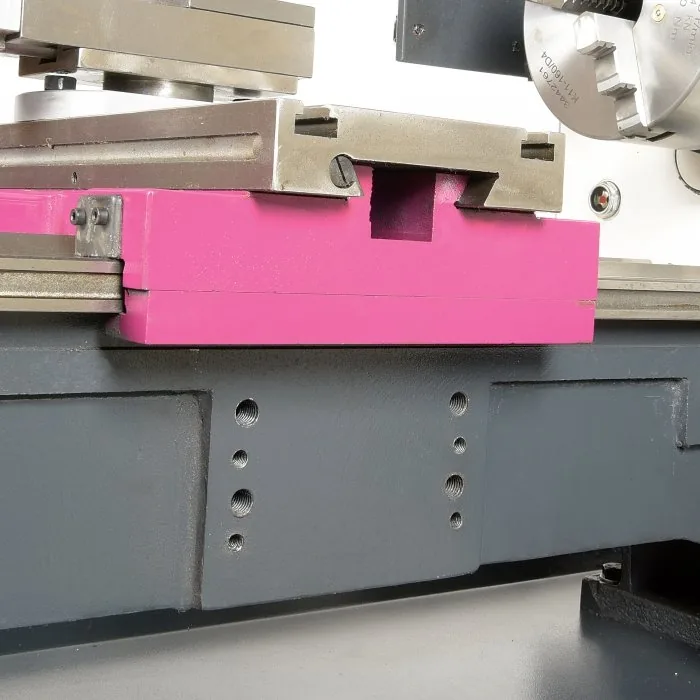

- Ribbed prism bed made of grey cast iron

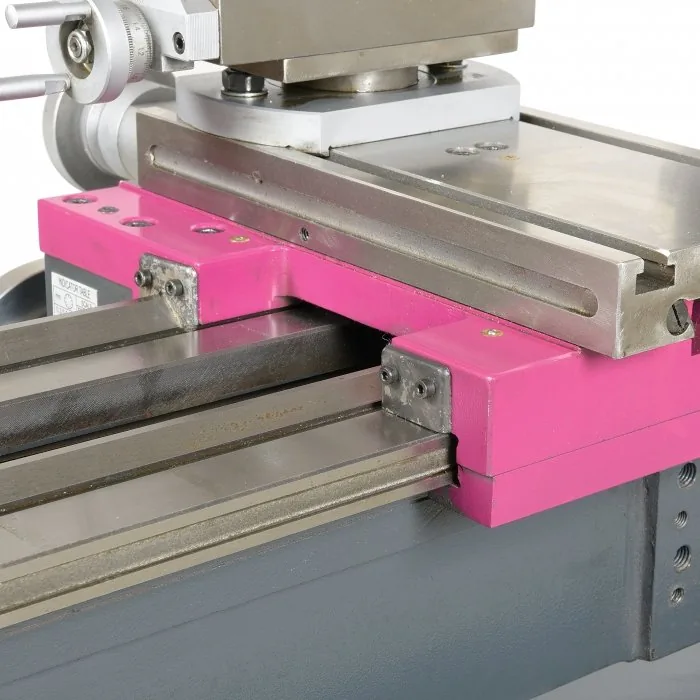

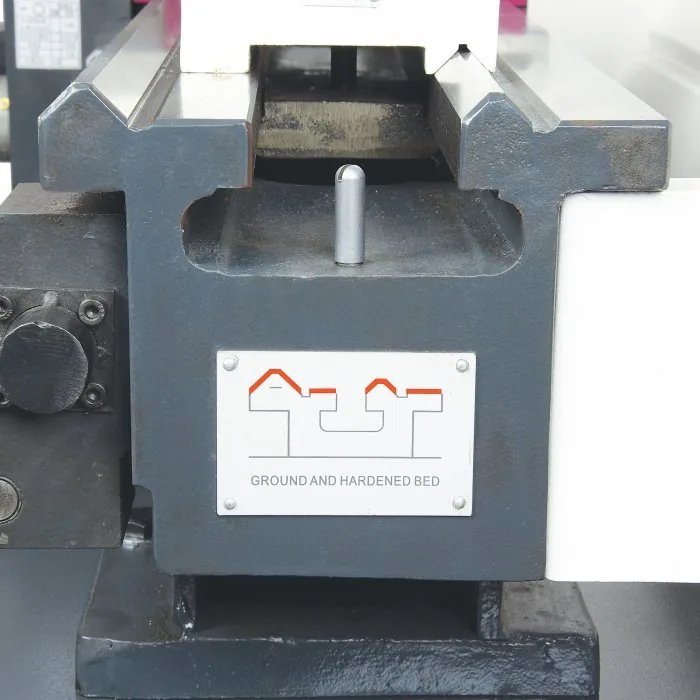

- Inductively hardened and ground bed guideways

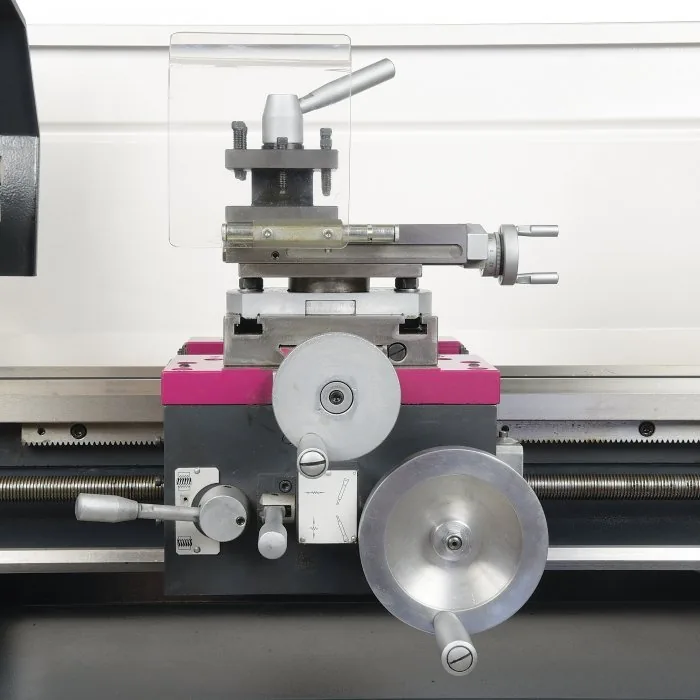

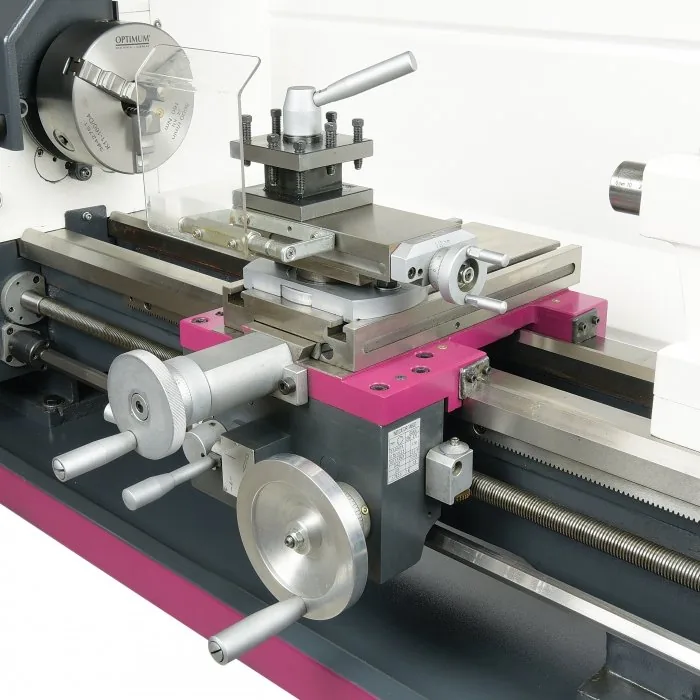

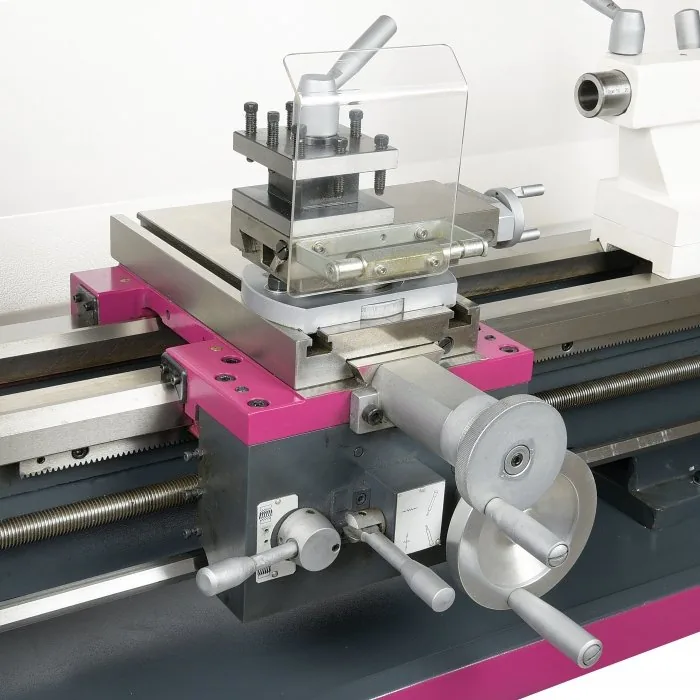

- Automatic cross & longitudinal power feeds
- Spindle nose accuracy 0.009mm
- 3 Jaw chuck running accuracy 0.04mm
- D1-4 camlock spindle for quick chuck changes

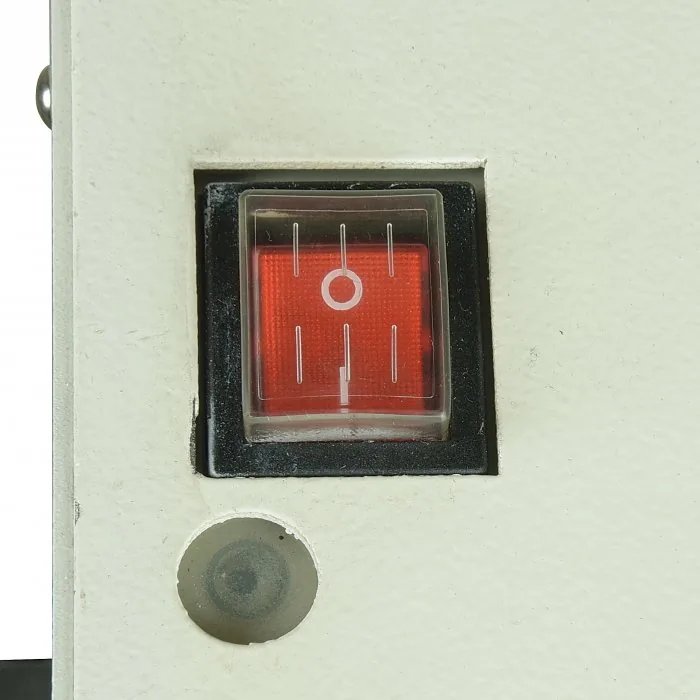

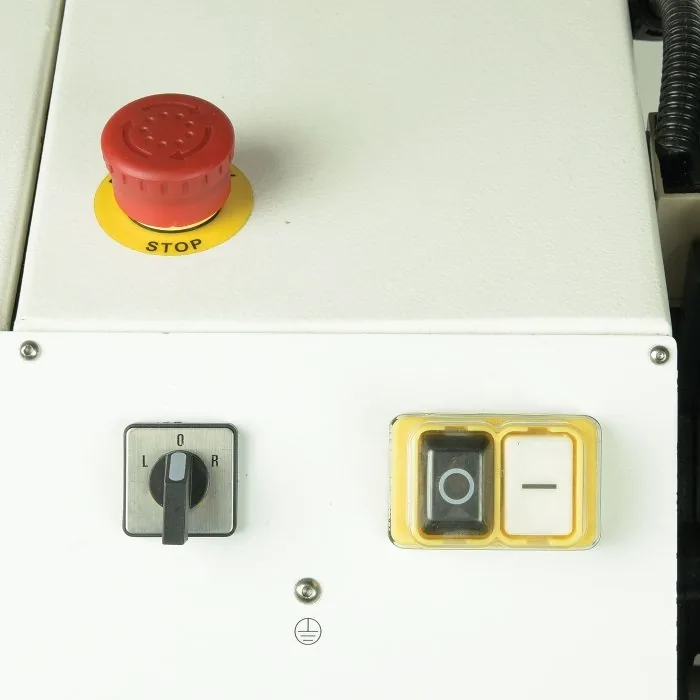

- Forward & reverse spindle direction switch
- Oils sight glass on head-stock & gearbox

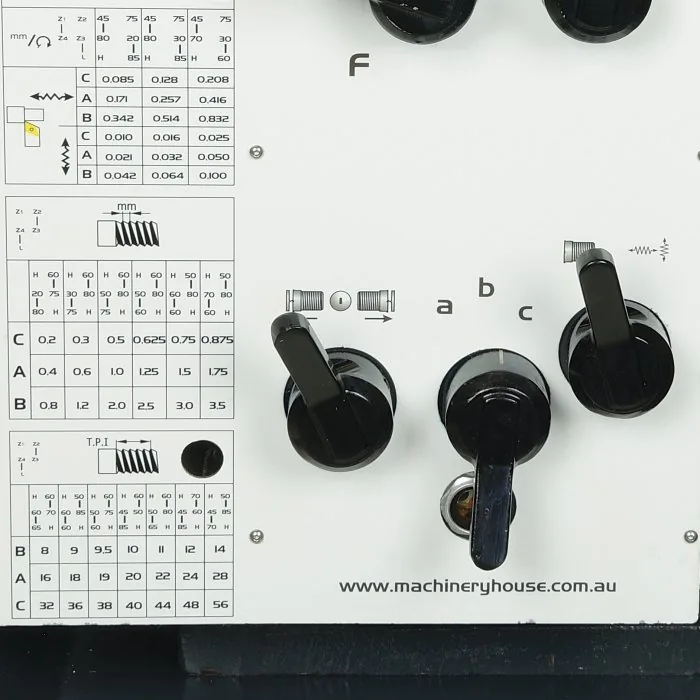

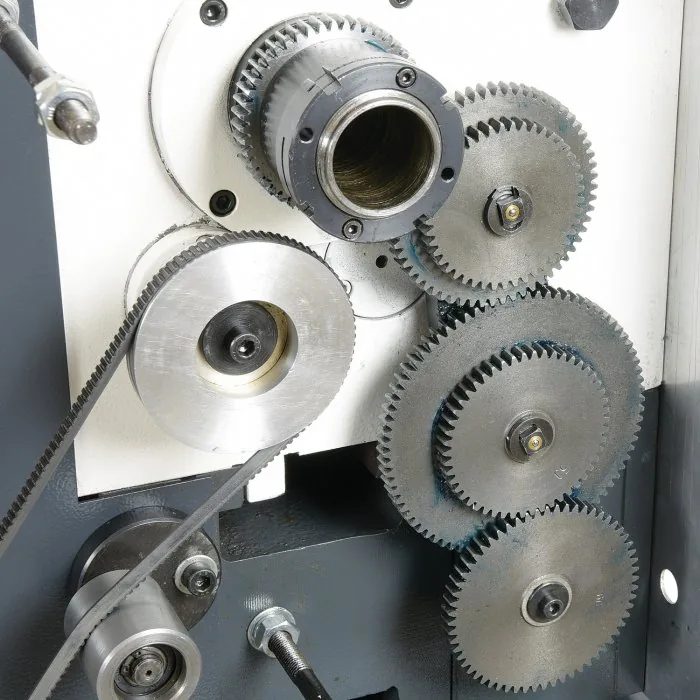

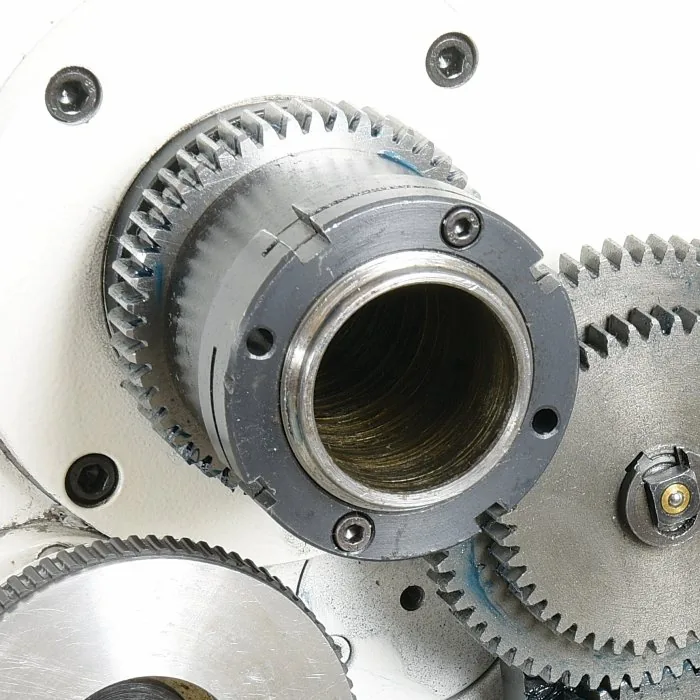

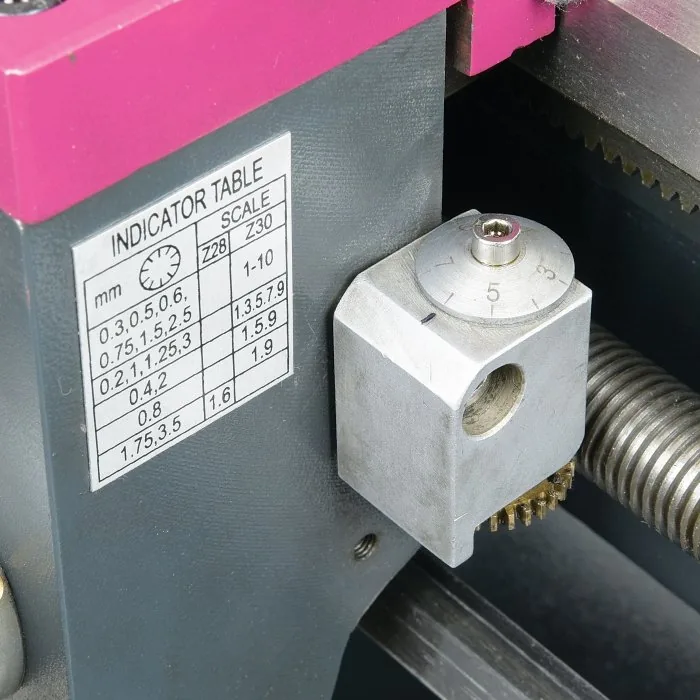

- Change gears for metric and imperial thread cutting

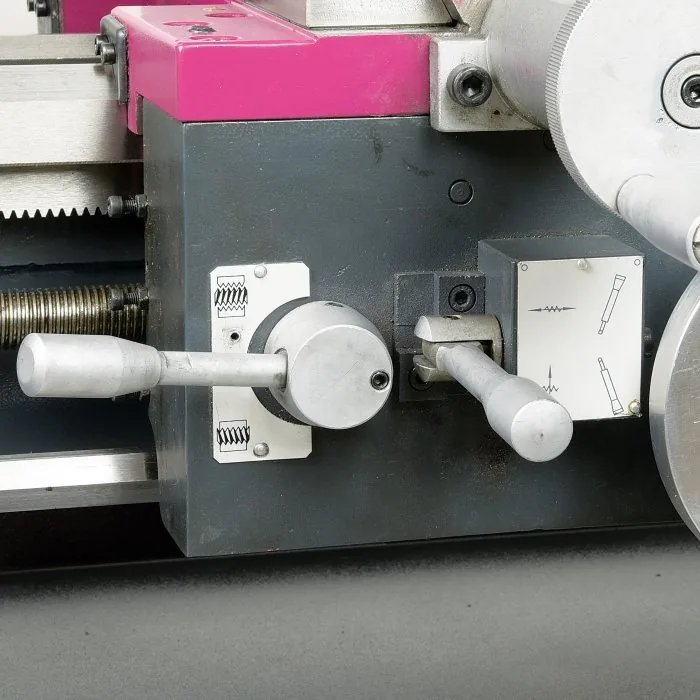

- Enclosed feed and threading gearbox
- Belt cover with tamper proof safety micro switch

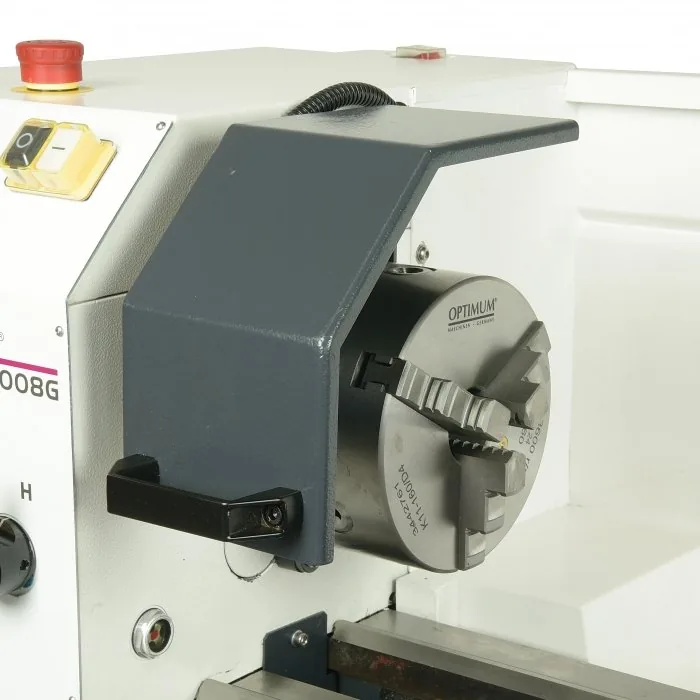

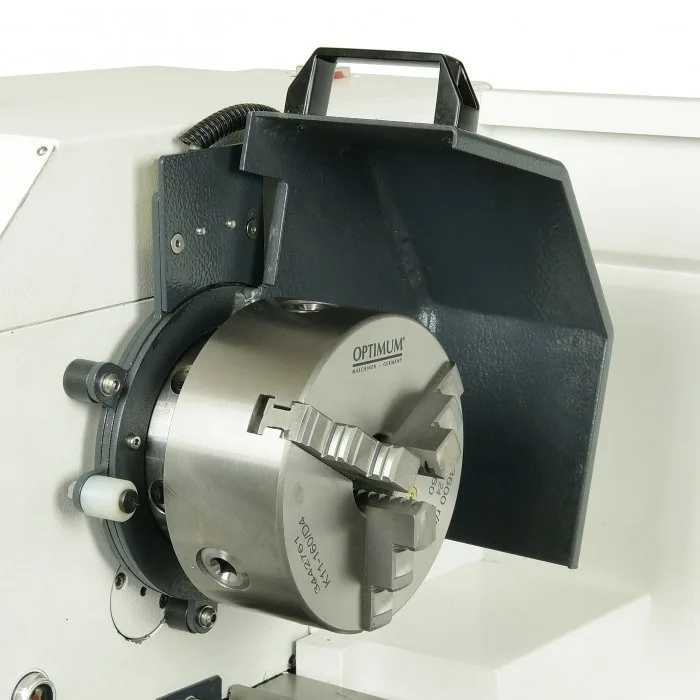

- Heavy duty rotating safety chuck guard with micro switch

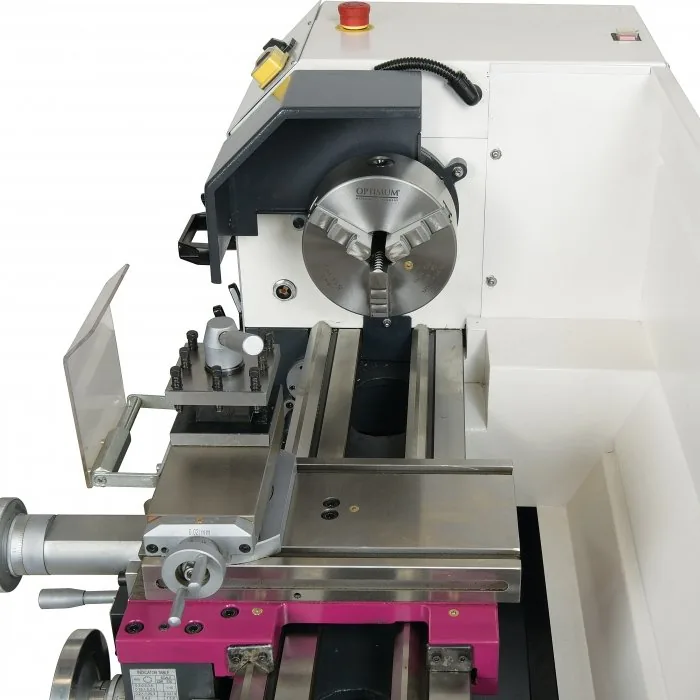

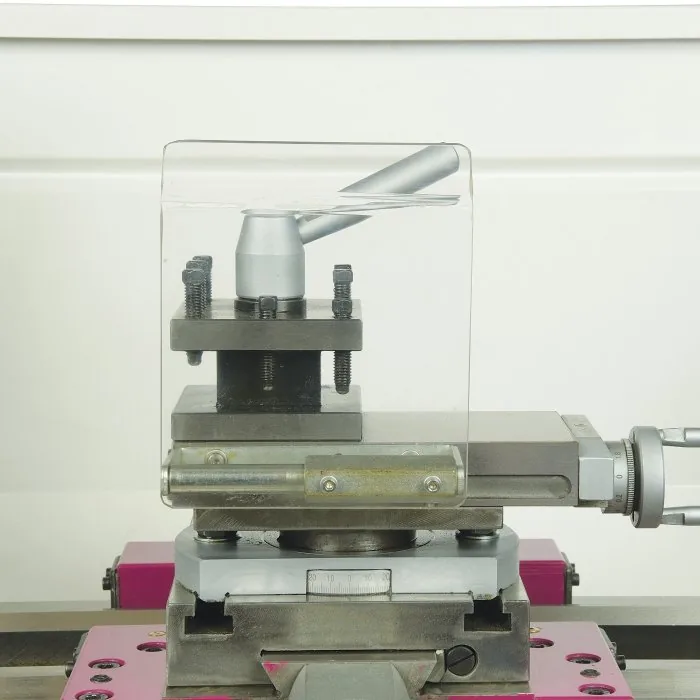

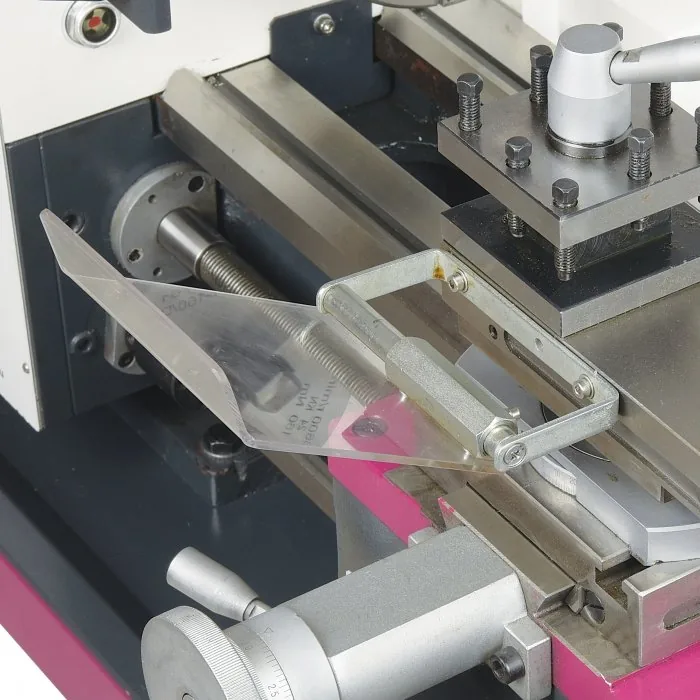

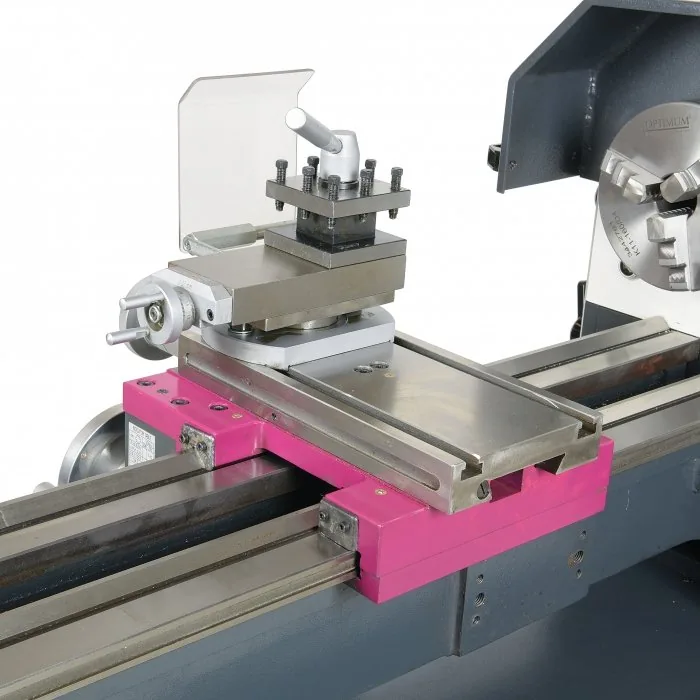

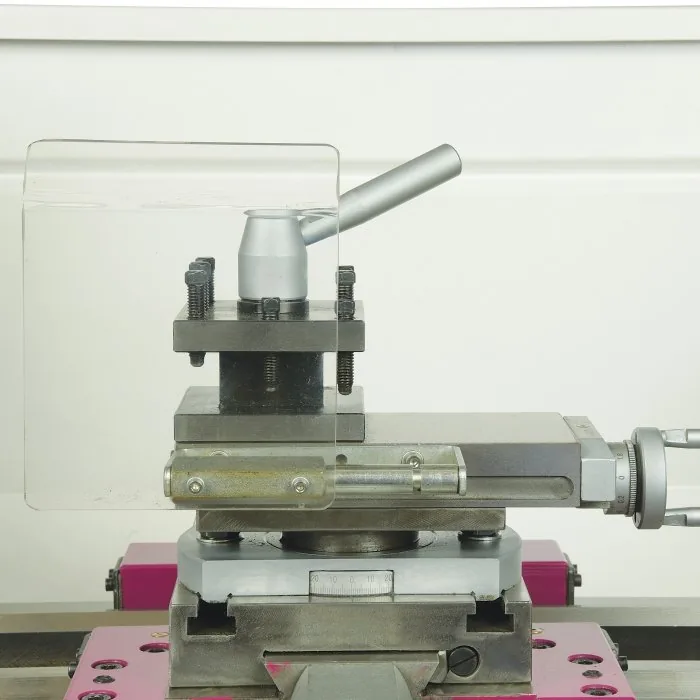

- Sliding tool post safety guard
- Cross slide & bed length are designed to fit Optimum DRO scales
About This Product

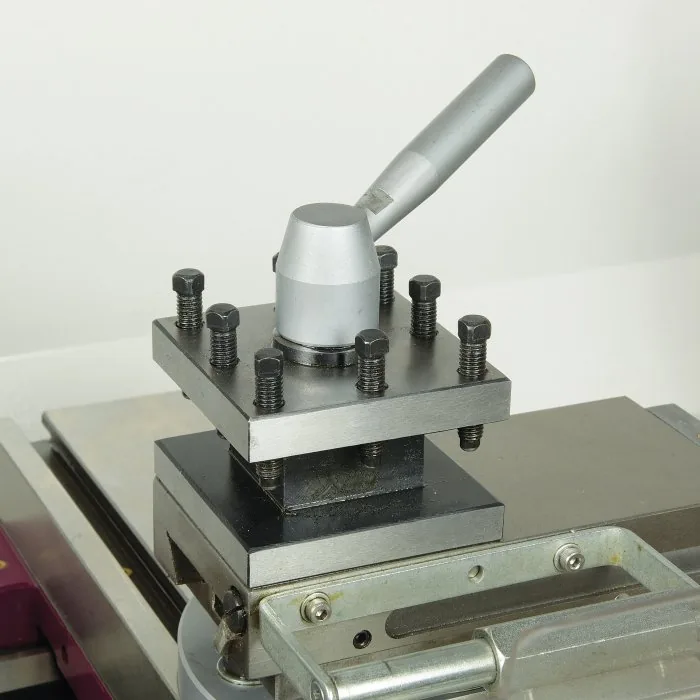

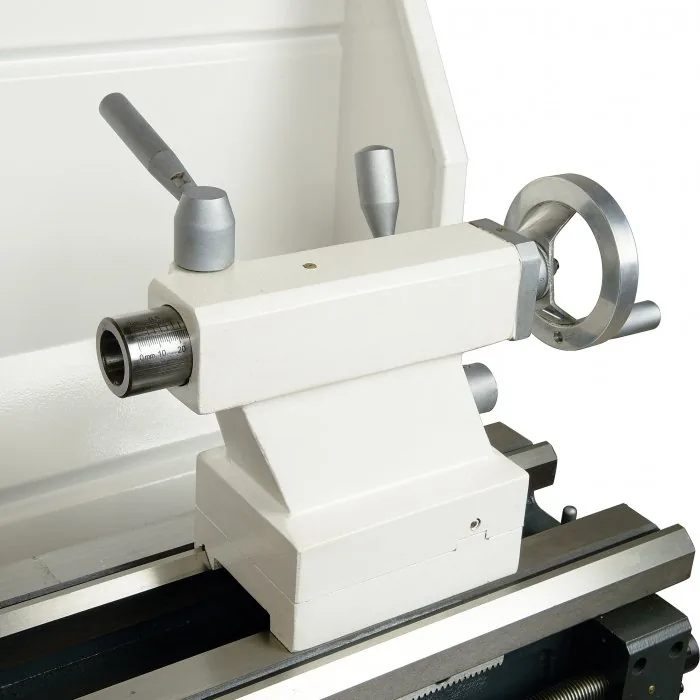

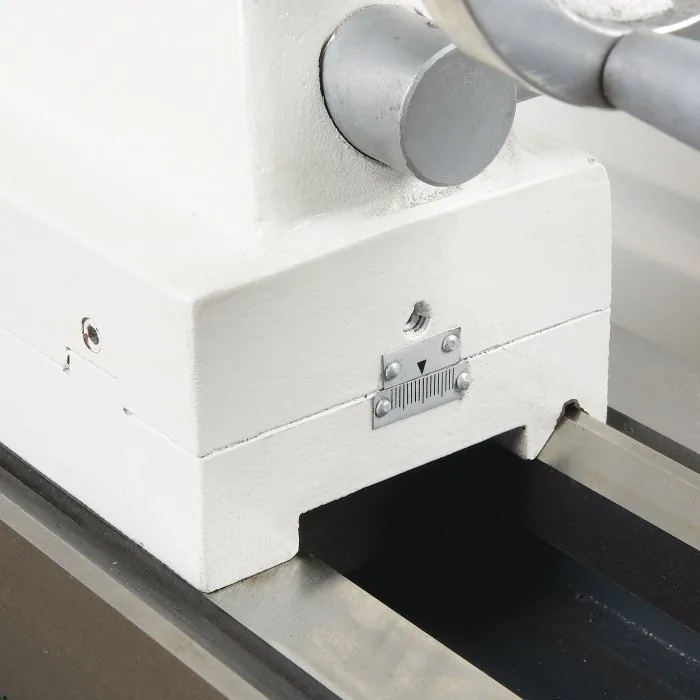

This new TU-3008G model geared head lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer for small component manufacturer. A very rigid 180mm cast iron bed width, induction hardened and ground slideways gives a high level of precision turning. The lathe capacity is 700mm between the centres and 300mm swing over the bed and with a generous 38mm spindle bore allowing larger stock to be placed through the headstock. The workhorse that drives this lathe has an upgraded powerful 2hp (1.5kW) motor providing smooth running. Other very useful features included are cross and longitudinal power feeds that’s not normally found of small conventional lathes, quick lock tailstock and both metric and imperial thread cutting, ranging from 8-56 tpi or 0.2-3.5mm pitch. Also included are a 4-way indexing tool post with 12mm tool shank capacity, fine adjustment on the tailstock for taper turning and the rear splash guard. A 160mm 3-jaw chuck with reverse jaws is also supplied. There are many additional options available including a milling head (BF-16AV) or (BF-20AV) to turn this machine into a very capable all round machining centre. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L691) for collection in store.

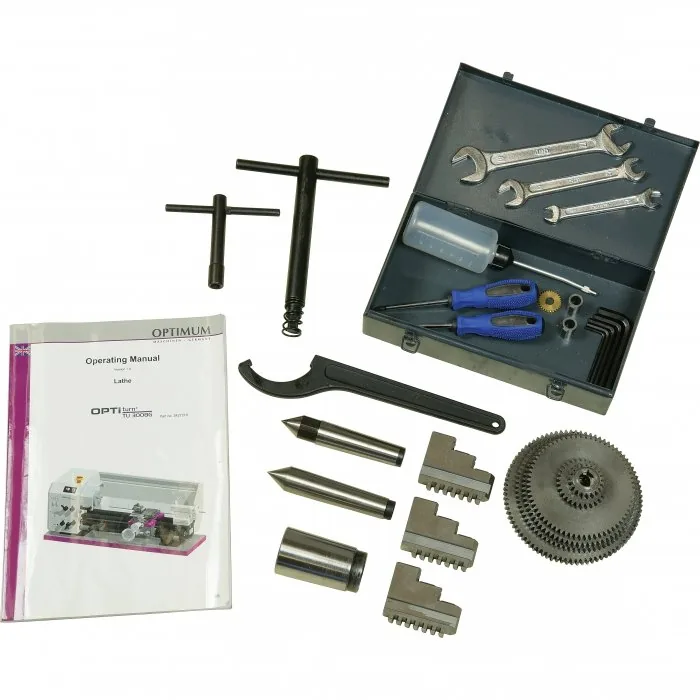

In the Box
- Change gears for metric & Imperial thread cutting
- Chuck guard
- Toolpost guard
- 2 dead centres
- 3-jaw chuck with reversible jaws
- Swarf drip tray
- Rear splash guard
Product Specifications
| Specification | Detail |
|---|---|
| Swing Over Bed (mm) | 300 |
| Distance Between Centres (mm) | 700 |
| Spindle Bore (mm) | 38 |
| Swing Over Cross-slide (mm) | 190 |
| Digital Readout System Fitted | Optional |
| Quick Change Toolpost Fitted | Optional |
| Tool Height To Suit (mm) | 12 |
| Centre Height (mm) | 150 |
| Spindle Nose Size or Type | D1-4 |
| Bed Width (mm) | 180 |
| Headstock Spindle Taper (MT) | 5 |
| Tailstock Taper (MT) | 3 |
| Cross Slide Travel (mm) | 150 |
| Compound Slide Travel (mm) | 65 |
| Leadscrew Type | Metric |
| Metric Cross Feed (X-Axis) (mm/rev) | 0.01 0.10 |
| Metric Longitudinal Feed (Z-Axis) (mm/rev) | 0.085 – 0.83 |
| Metric Thread Steps & Pitch (No. / mm) | 18 (0.2 – 3.5) |
| Imperial Thread Steps & TPI (No. / TPI) | 21 (8 – 56″) |
| 3 Jaw Chuck Diameter (mm) | 160 |
| 4 Jaw Chuck Diameter (mm) | Optional |
| Spindle Steps / Speeds (No. / rpm) | 12 (125 – 2400) |
| Motor Power (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 280 |
