Description
HAFCO

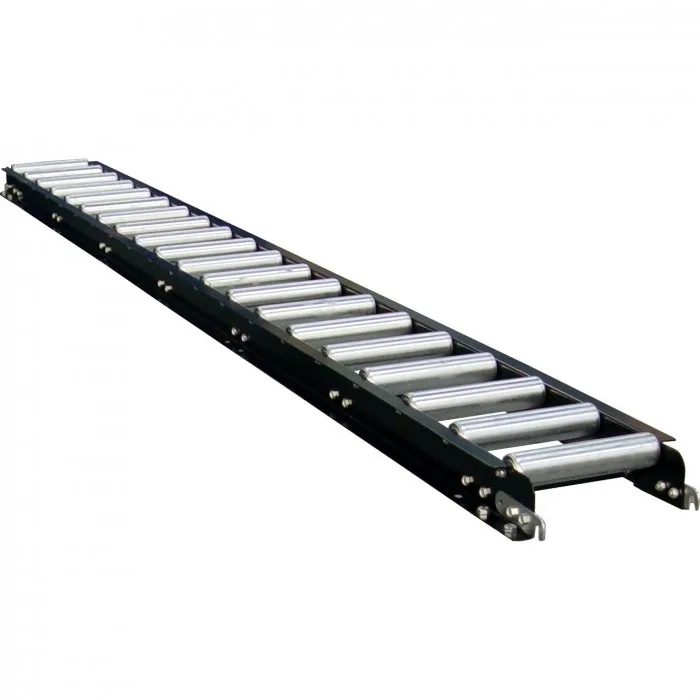

Roller Conveyor — RC-290, 290 x 3000mm Ø50mm Rollers
Part No: L812 | Barcode: 9344195026515 | Model: RC-290
HAFCO RC-290 Roller Conveyor (290 x 3000mm Ø50mm Rollers). Available to order through Alltools Geelong for collection in store.
Model RC-290
290 x 3000mm
Ø50mm Rollers
Key Features & Benefits
- Roller capacity of 60kg each
- 20 x Zinc plated steel rollers at 150mm pitch
- Rollers are Ø50mm with commercial bearings
- Frames are powder coated
- Conveyor is pre-assembled with 7 cross-members
- Frames are pre-drilled at 75mm pitch to accept “Optional 19 rollers” totalling to 39 rollers
- Please Note:
- Roller load capacity is calculated on even weight distribution over entire roller
- Total load capacity is calculated on even weight distribution over entire roller conveyor system
About This Product
Roller Conveyor (290 x 3000mm Ø50mm Rollers). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code L812) for collection in store.
In the Box
- 20 steel rollers @ 150mm pitch
Product Specifications
| Specification | Detail |
|---|---|
| Roller Width (mm) | 215 |
| Roller Pitch (mm) | 150 |
| No. Rollers (No.) | 20 |
| Roller Diameter (mm) | Ø50 |
| Frame Length (L) (mm) | 3000 |
| Frame Width (W) (mm) | 290 |
| Frame Height (H) (mm) | 80 |
| Load Capacity with 2 x Support Legs (kg) | 400 |
| Load Capacity with 3 x Support Legs (kg) | 1000 |
