Description
Intech Tools

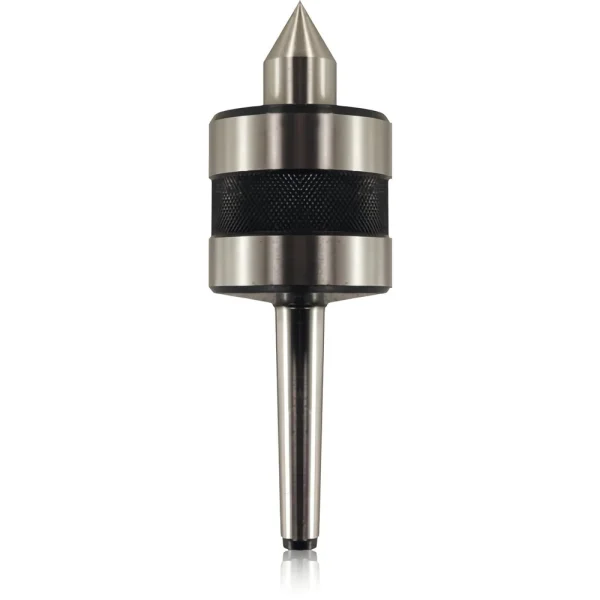

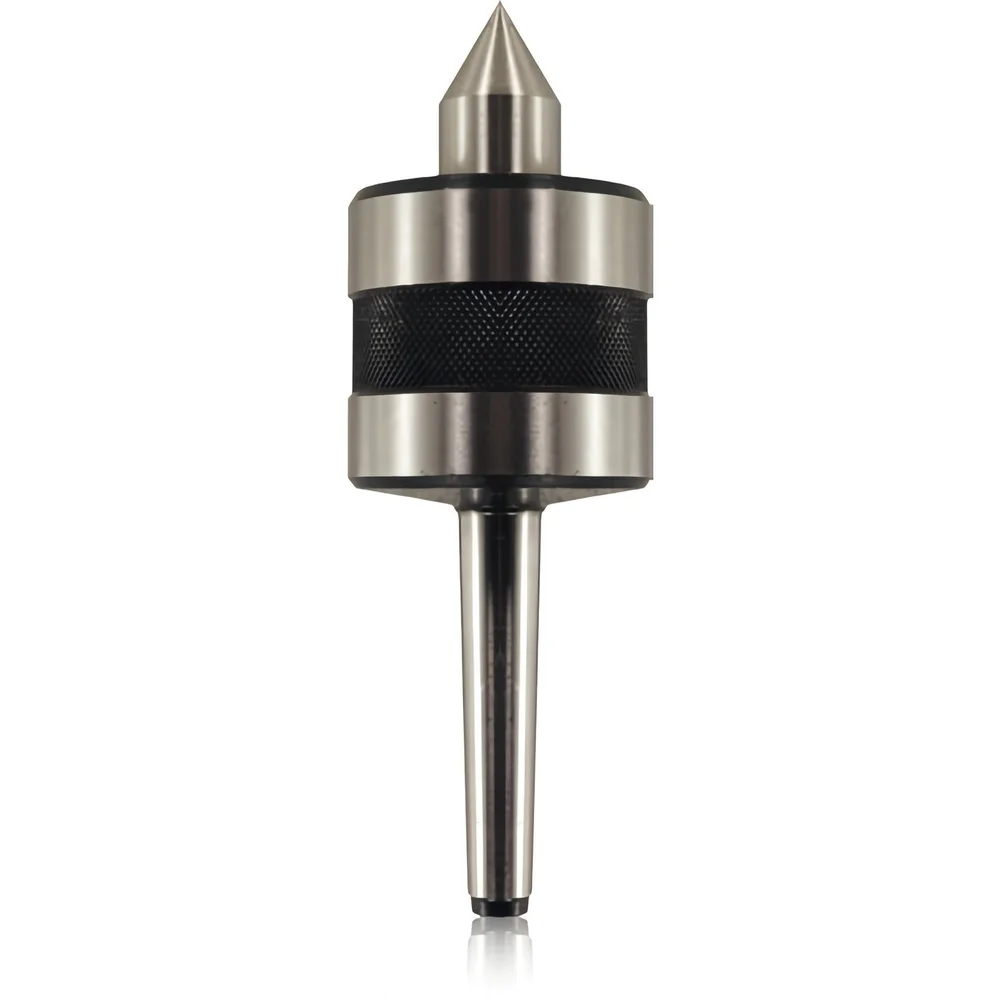

Intech Revolving Live Centre — MT1 Morse Taper
Part No: LCLC1 | Barcode: 9333608003359 | Brand: Intech Tools
The Intech LCLC1 is a sealed revolving live centre with MT1 morse taper, precision-ground 60° point, and a bearing pack designed for heavy lathe work. Preloaded needle rollers carry the radial load while a heavy-duty thrust ball bearing handles axial pressure, and built-in oil seals keep coolant, dirt and swarf out of the bearings.
MT1 Morse Taper
60° Point
Needle Roller Bearings
Heavy-Duty Thrust
Sealed Bearings
Key Features & Benefits
- MT1 taper — fits any standard MT1 tailstock with no sleeving required.
- Precision 60° point — accurately ground so the work runs true and the centre hole bears evenly under load.
- Preloaded needle roller bearings — full radial support for high-speed turning without chatter or runout.
- Heavy-duty thrust ball bearings — handle the axial load when feeding tail stock pressure or parting close to the centre.
- Sealed against coolant and swarf — built-in oil seals stop fluid and chips entering the bearing pack, extending service life.
- High-quality carbon steel body — through-hardened for durability in trade and toolroom use.
When to Use This Live Centre
Reach for the LCLC1 any time you are turning between centres on a lathe with a MT1 tailstock — long shafts, thread cutting, taper turning, or any operation where the work needs support but must be free to spin. The sealed bearing pack means you can run it under coolant without worrying about washout.
Product Specifications
| Part No. | Morse Taper | Barcode |
|---|---|---|
| LCLC1 ★ | MT1 | 9333608003359 |
| LCLC2 | MT2 | — |
| LCLC3 | MT3 | 9333608003373 |
| LCLC4 | MT4 | — |
| LCLC5 | MT5 | — |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
Browse our full range of lathe centres at Alltools Geelong.
