Description
Intech Tools

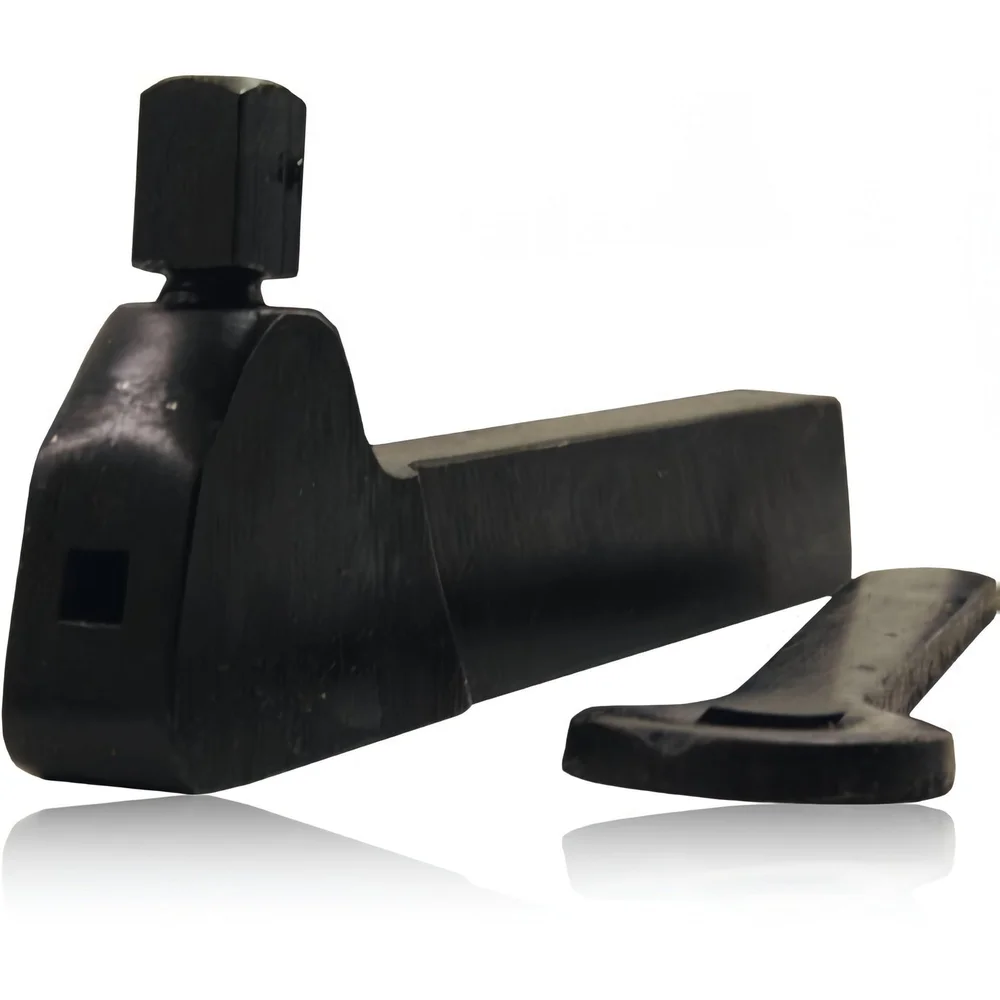

Intech Turning Tool Holder — Right Hand, 3/16″ Toolbit
Part No: LTTHR3/16 | Barcode: 9333608002826 | Brand: Intech Tools
The Intech LTTHR3/16 is a right hand lathe tool holder for 3/16″ HSS or carbide toolbits. The bit is held parallel and straight to the shank so the cutting edge gets full support, and the locking mechanism grips firmly so nothing shifts under load. Built from high-grade steel for consistent rigidity job after job.
Right Hand
3/16″ Toolbit
High-Grade Steel
Parallel Clamping
Secure Blade Lock
Key Features & Benefits
- Right Hand configuration — designed for turning toward the chuck (right-to-left feed) and facing — the angled head presents the cutting edge for right-hand cuts.
- Parallel toolbit clamping — the bit sits straight along the shank, giving maximum backing to the cutting edge so it does not deflect under cut.
- 3/16″ toolbit size — matches Intech LTTB toolbits and any standard 3/16″ HSS or carbide bit.
- High-grade steel body — stiff enough for taking heavier cuts without ringing or chatter.
- Secure locking mechanism — single-screw clamp holds the bit firmly so feed pressure does not push it back.
When to Use This Holder
Use the LTTHR3/16 for turning toward the chuck (right-to-left feed) and facing — the angled head presents the cutting edge for right-hand cuts. Match the 3/16″ toolbit size to the tool post slot on your lathe — most hobby lathes take 3/16″ or 5/16″, while toolroom and trade machines run 3/8″ or larger.
Product Specifications
| Part No. | Barcode | Hand | Toolbit Size |
|---|---|---|---|
| LTTHS3/16 | 9333608002758 | Straight | 3/16″ |
| LTTHR3/16 ★ | 9333608002826 | Right Hand | 3/16″ |
| LTTHS5/16 | 9333608002772 | Straight | 5/16″ |
| LTTHS3/8 | 9333608002789 | Straight | 3/8″ |
| LTTHR3/8 | 9333608002857 | Right Hand | 3/8″ |
| LTTHL3/8 | 9333608002925 | Left Hand | 3/8″ |
★ You are viewing the highlighted variant. Other sizes/hands in this series are also available.
Browse our full range of turning tool holders at Alltools Geelong.
