Milwaukee M12FDGA-0 — m12 fuel right angle die available at Alltools Geelong.
Milwaukee

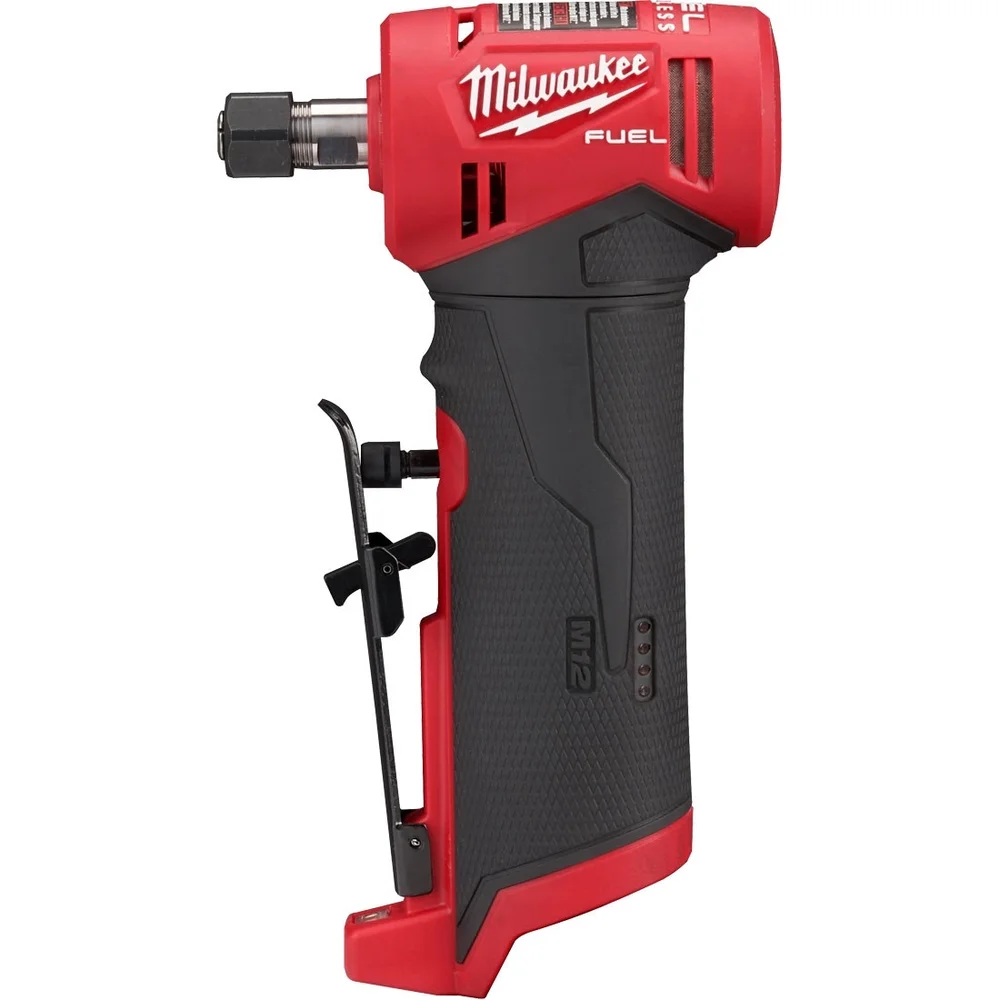

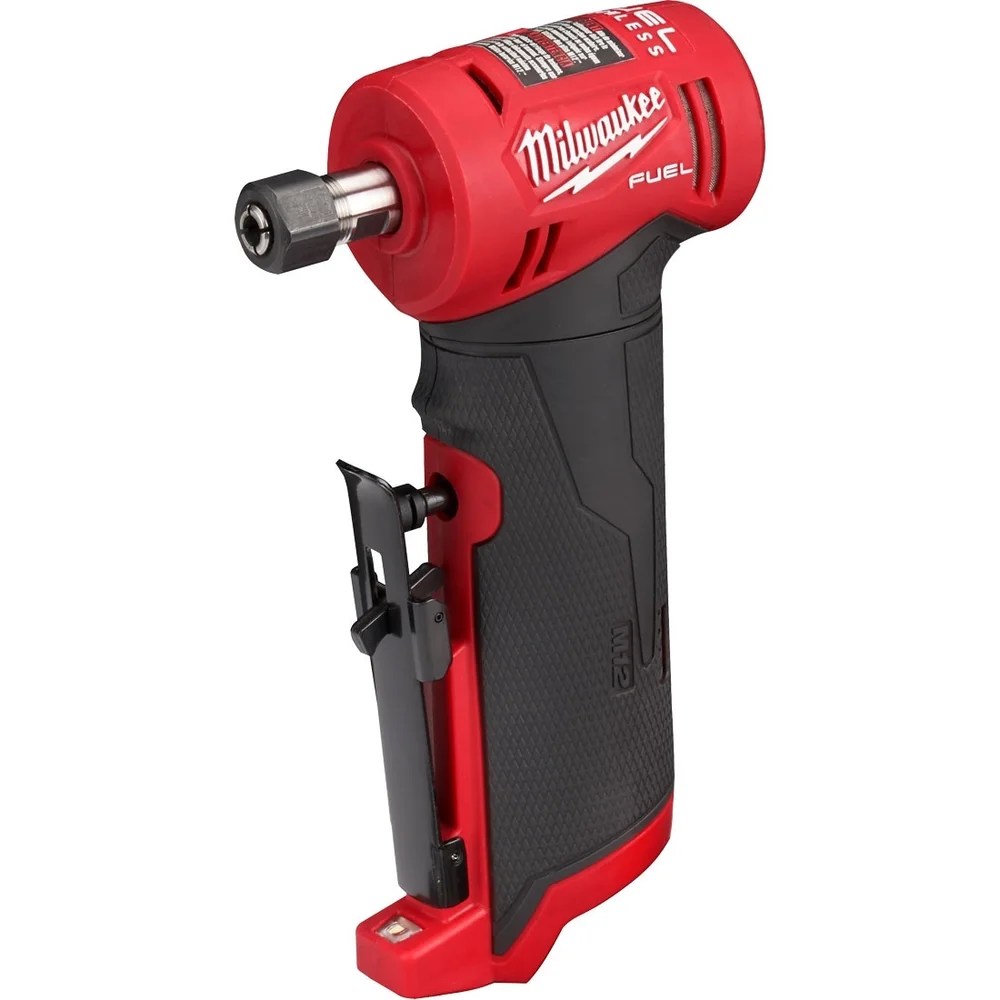

M12FDGA-0 M12 FUEL Right Angle Die Grinder
Part No: M12FDGA-0 | Barcode: 4892210183712
M12 FUEL brushless right-angle die grinder with 4-mode speed control up to 24,500 RPM and 0.3 HP output. The compact 119mm head length reaches into tight spaces that straight die grinders cannot access. Ships with 6mm and 8mm collets.
M12 FUEL
Brushless
4-Speed: up to 24.5K
Right Angle Head
119mm Head Length
0.3 HP
Suitable For
Metal Grinding
Weld Cleanup
Deburring
Polishing
Tight Spaces
Key Features & Benefits
- 4-mode speed control (10K/15K/20K/24.5K RPM) — one additional speed mode over the straight variant provides finer control at higher speeds for precision polishing.
- Right-angle head at 119mm — the compact 90-degree head reaches into inside corners, behind flanges, and between structures where a straight grinder cannot physically fit.
- 24,500 RPM maximum — highest speed in the M12 die grinder range for fine finishing and high-speed polishing with small wheels and points.
- Variable speed trigger — responsive trigger within each speed mode for progressive control from crawl to full speed.
- 0.3 HP POWERSTATE brushless motor — same power output as the straight variant in a right-angle form factor.
- 0.8 kg with 2.0 Ah battery — ultra-lightweight for extended one-handed use in awkward positions.
When to Use This Die Grinder
The M12FDGA-0 is the right-angle complement to the straight M12FDGS-0. Choose the right-angle variant when access angle matters — grinding inside corners of welded frames, deburring the back side of brackets, polishing inside pipe fittings, and any work where the cutting point needs to be perpendicular to your grip. The 119mm head length is compact enough for most automotive engine bay and fabrication shop access requirements.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Milwaukee Tool Australia, with local support and service.
Product Specifications
| Part No. | Type | Speed Modes | Collets | Voltage | Max Disc |
|---|---|---|---|---|---|
| M12FDGS-0 | Straight | 10K / 15K / 21K RPM | 6mm, 1/4″, 8mm | 12V | 50mm |
| M12FDGA-0 ★ | Right Angle | 10K / 15K / 20K / 24.5K RPM | 6mm, 8mm | 12V | 50mm |
| M18FDGRB0 | Braking Straight | — | — | 18V | — |
| M18FDGROVPDB0 | Braking Paddle | — | — | 18V | — |
★ You are viewing the highlighted variant. Other models in this series are also available.
