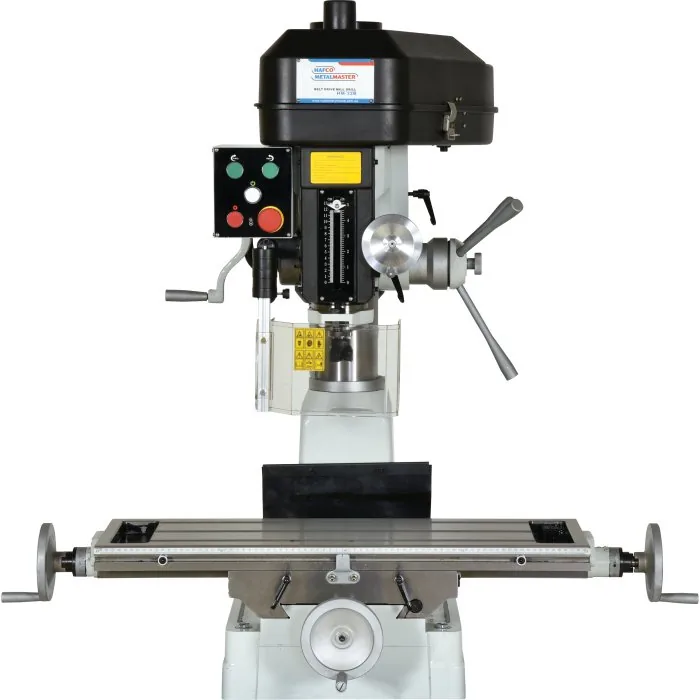

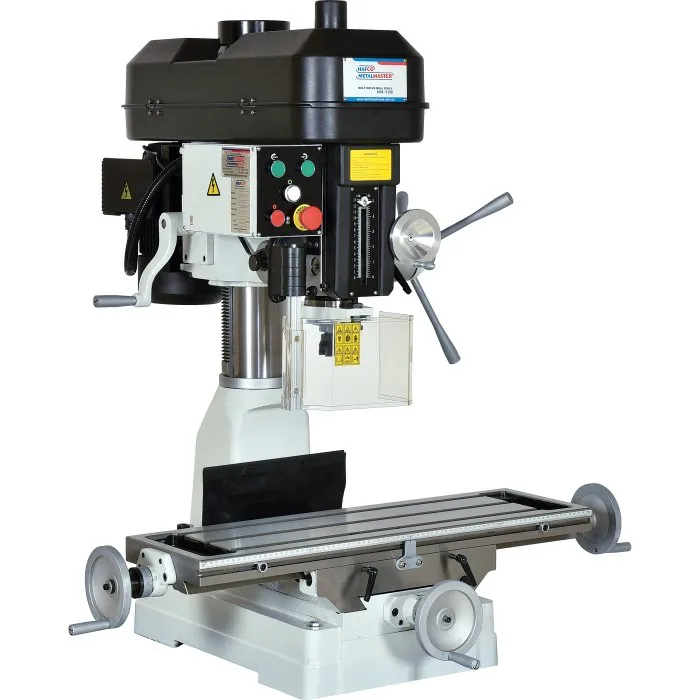

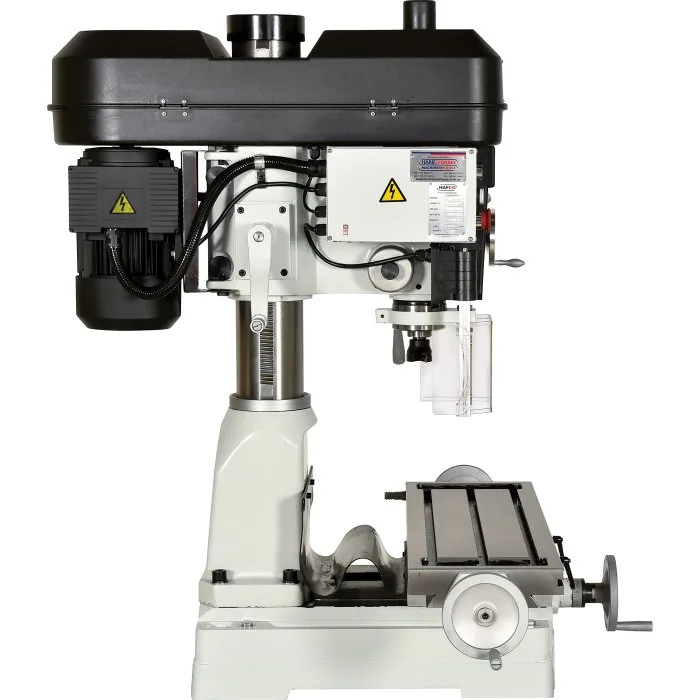

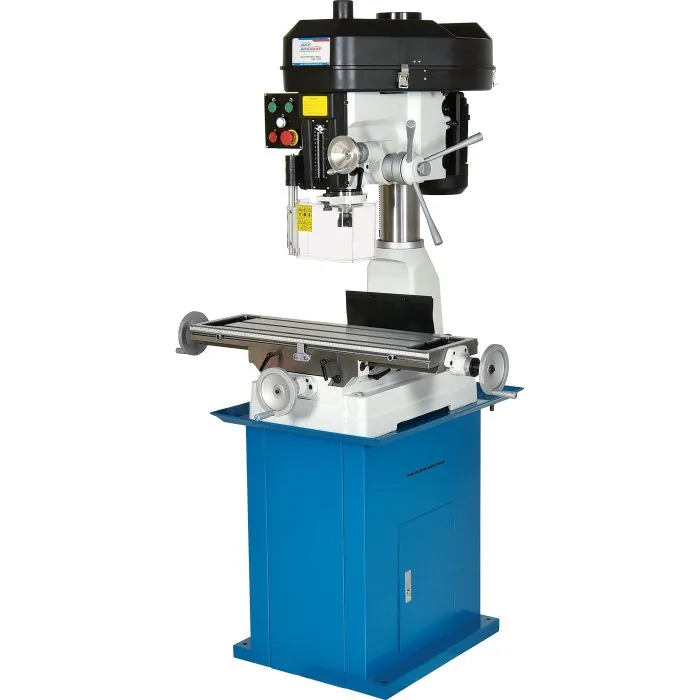

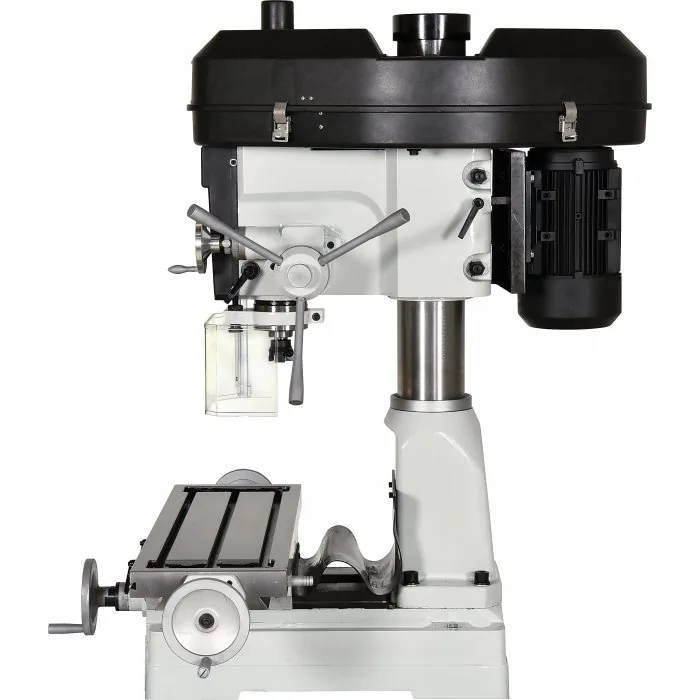

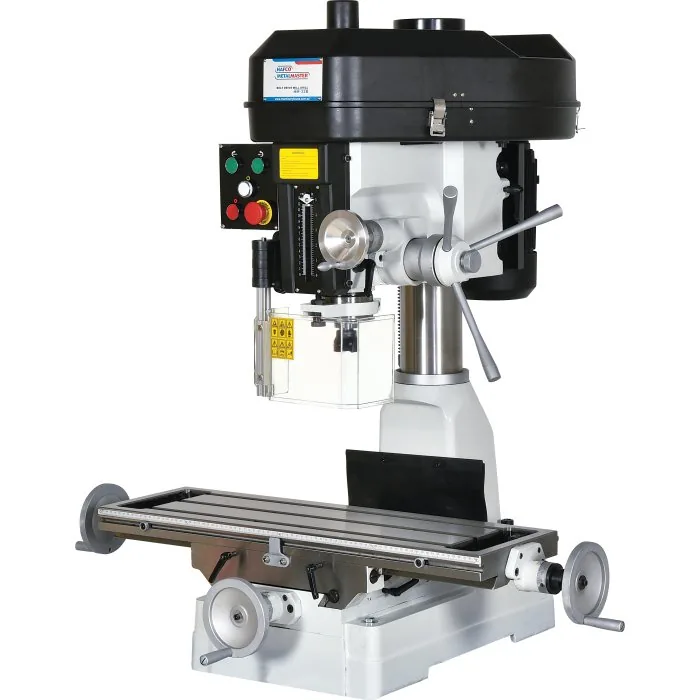

Mill Drill – Belt Drive — HM-32B, Table Travel: (X) – 540mm (Y) – 235mm (Z) – 310mm
Part No: M137 | Barcode: 9344195263309 | Model: HM-32B
HAFCO-METALMASTER HM-32B Mill Drill – Belt Drive (Table Travel: (X) – 540mm (Y) – 235mm (Z) – 310mm). This new model HM-32B is a rugged and well made machine with good capacities and plenty of power, a good choice for a serious home engineer.
Model HM-32B
Table Size: 820 x 240 mm
Spindle Taper – Vertical: 3MT
Spindle to Table: 465 mm
Spindle Travel / Diameter: 130 / 75 mm
Throat Depth (max.): 202 mm
Drilling Capacity: 31.5 mm
Key Features & Benefits

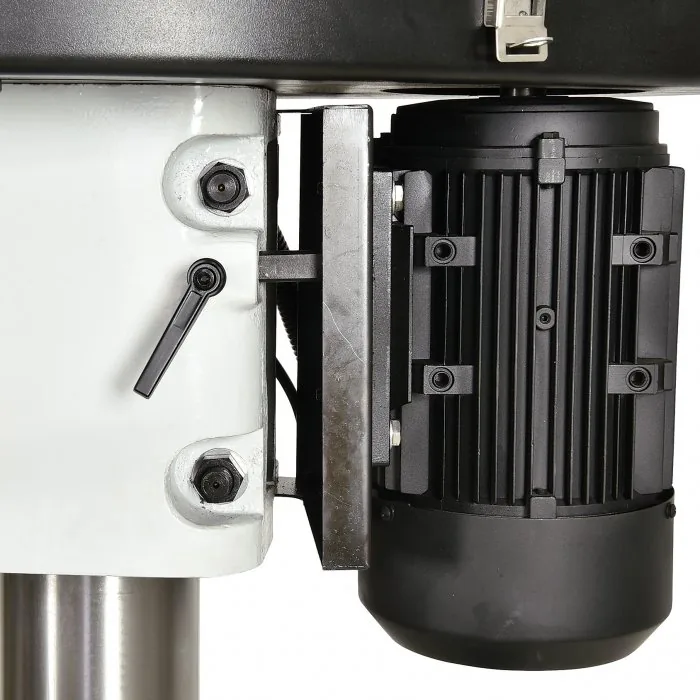

- Quiet B section belt drive system

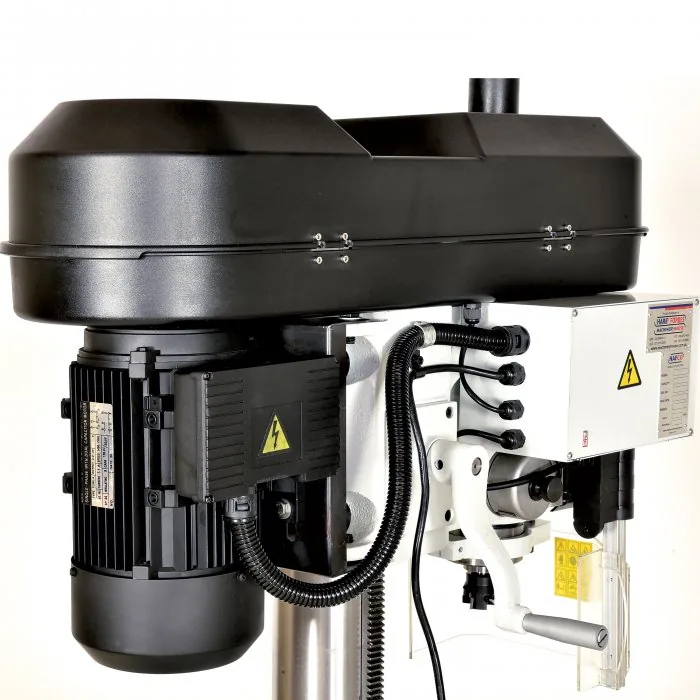

- Milling head rotates 360º on column

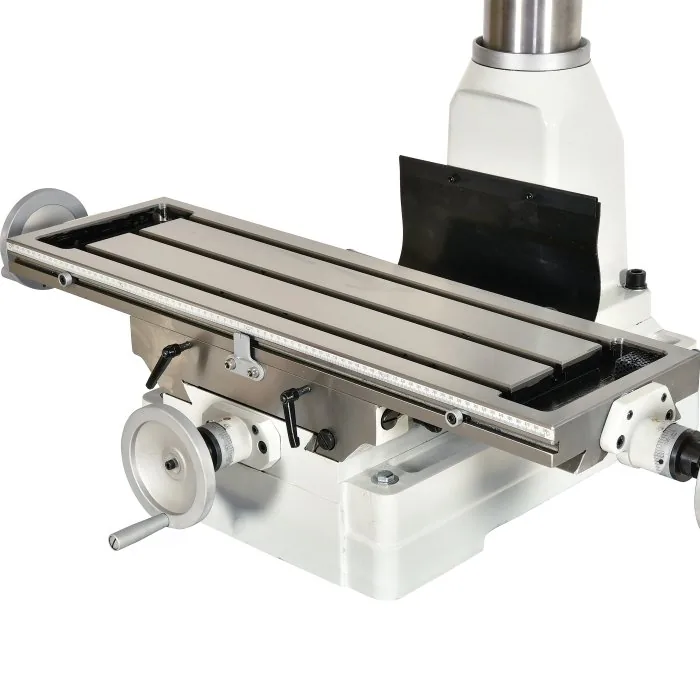

- Extra large 820 x 240mm ground work table with T-slots
- Adjustable leadscrew nuts eliminating backlash on both axis

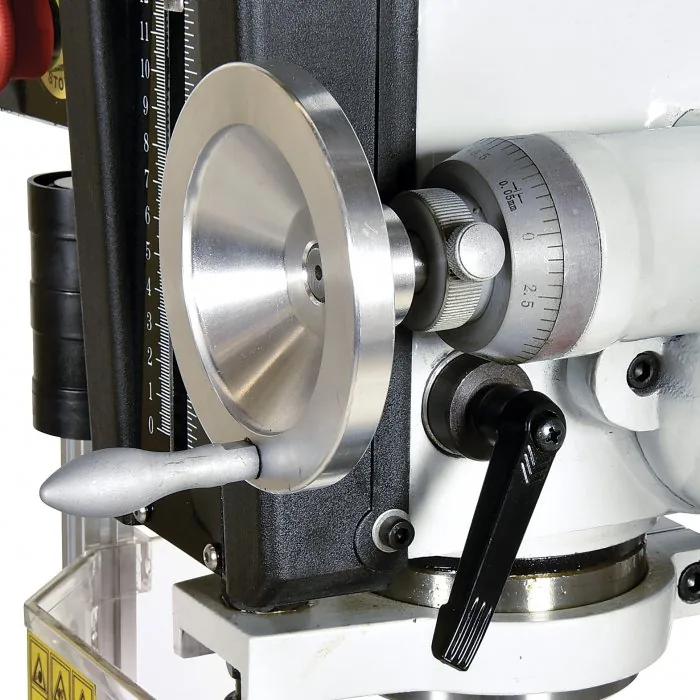

- Fine feed hand wheel operating quill feed

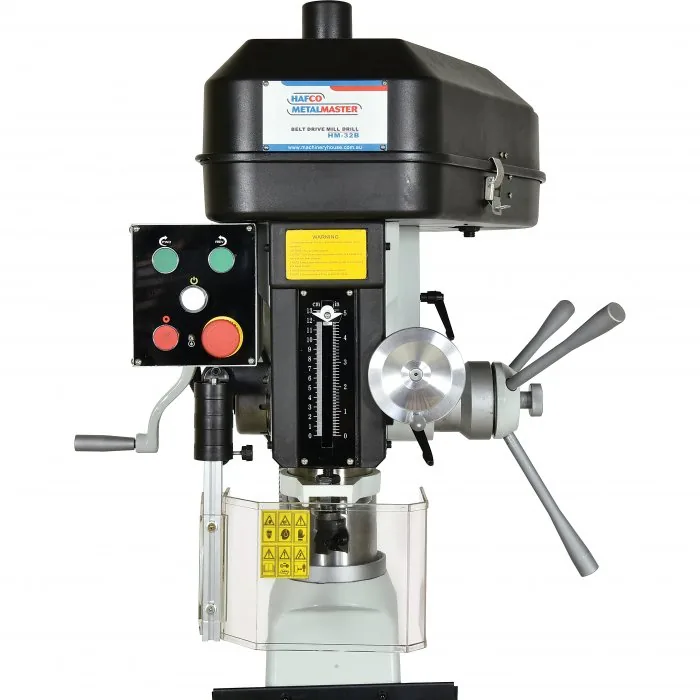

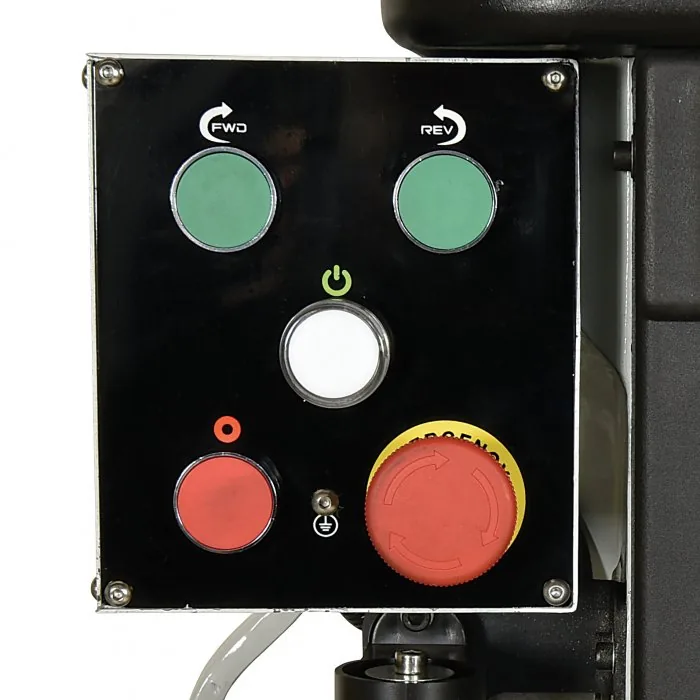

- Forward and reverse on/off switch with emergency stop
- 3MT spindle with 75mm diameter quill

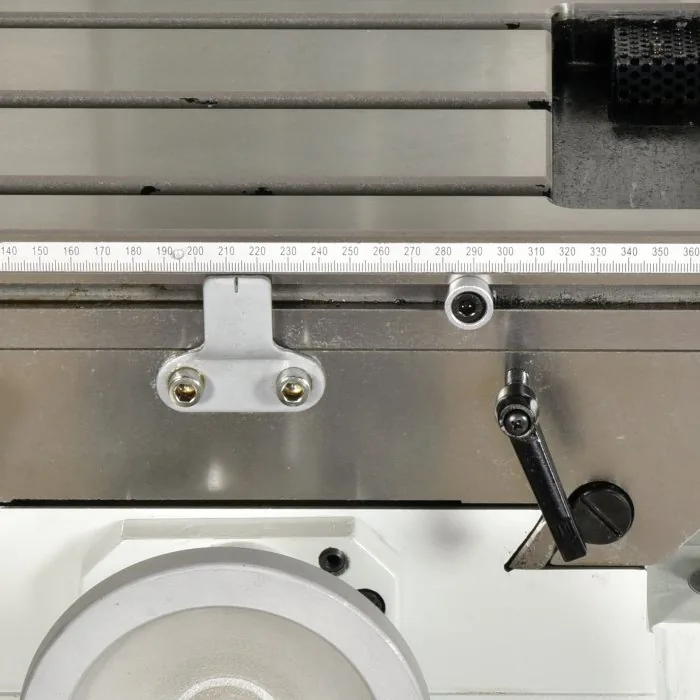

- Adjustable table and drill length stops

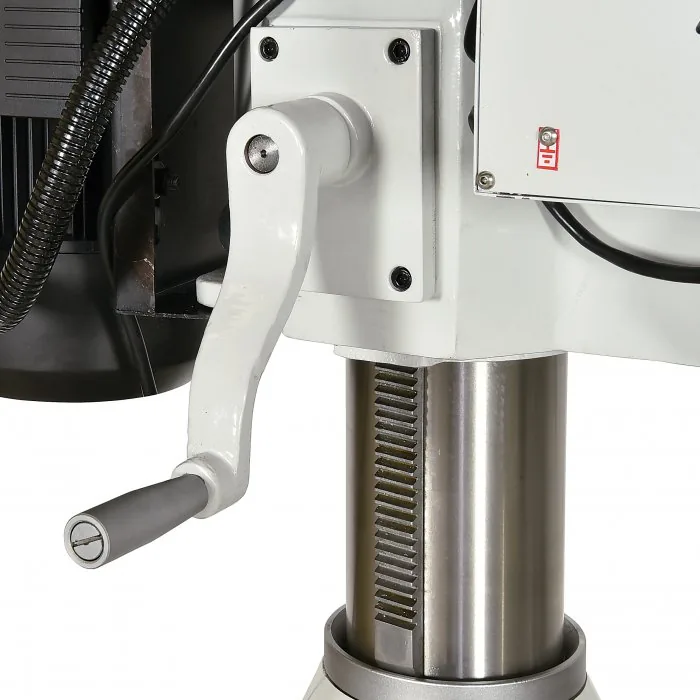

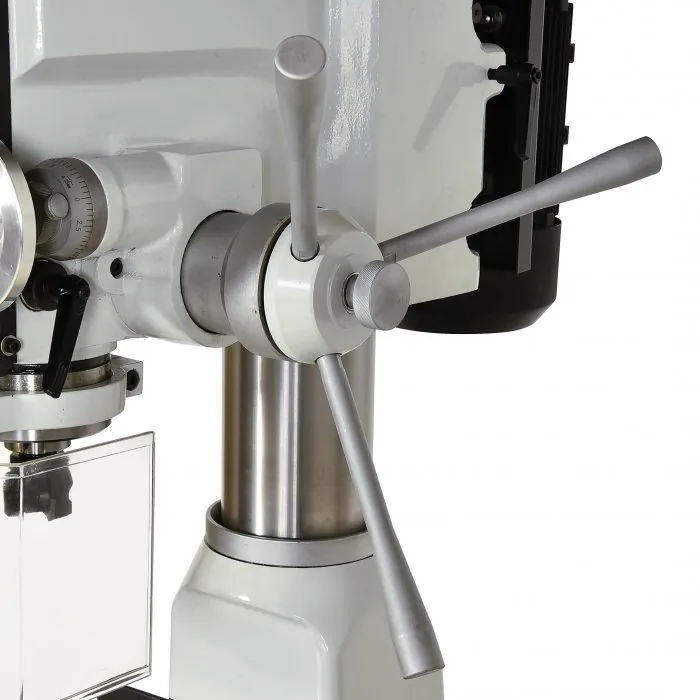

- Rack and pinion wind-up head

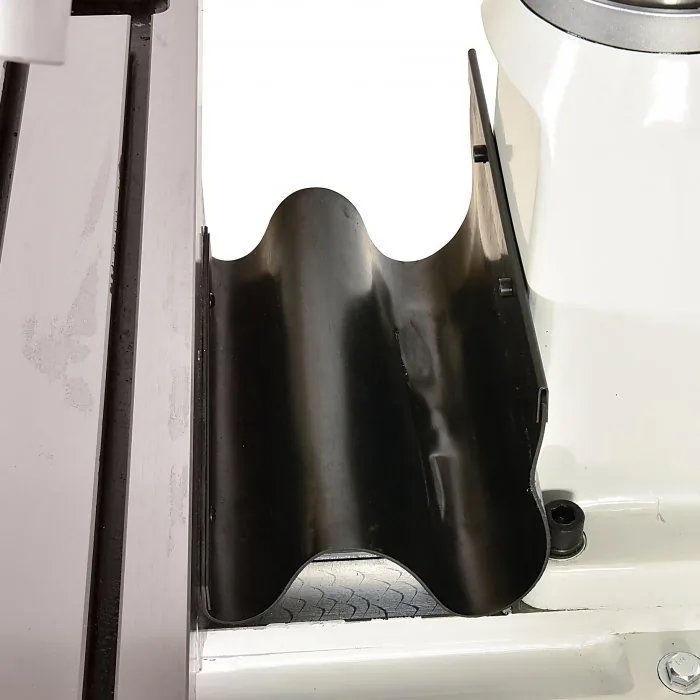

- Rear slide-way cover and slide clamps on all axis
- Spindle lock for quill
- Table locks on both axis

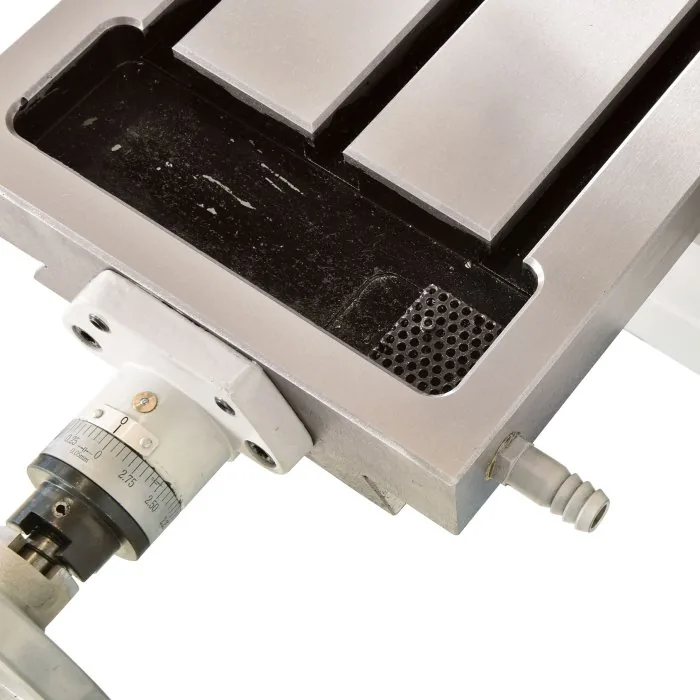

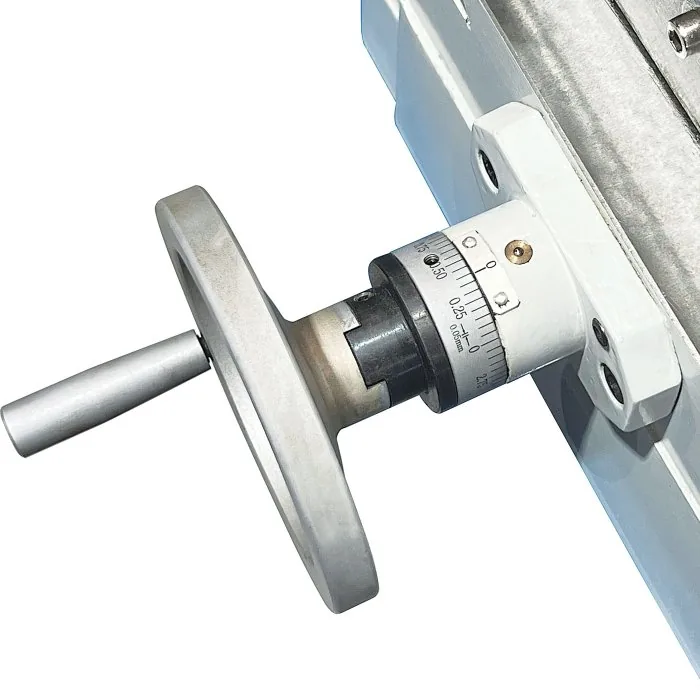

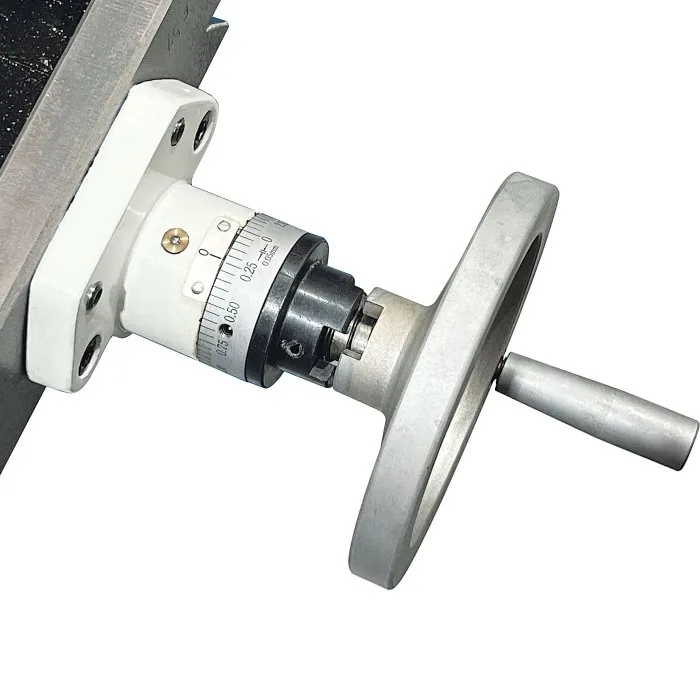

- Metric dial graduations @ 0.05mm for X & Y axis
About This Product

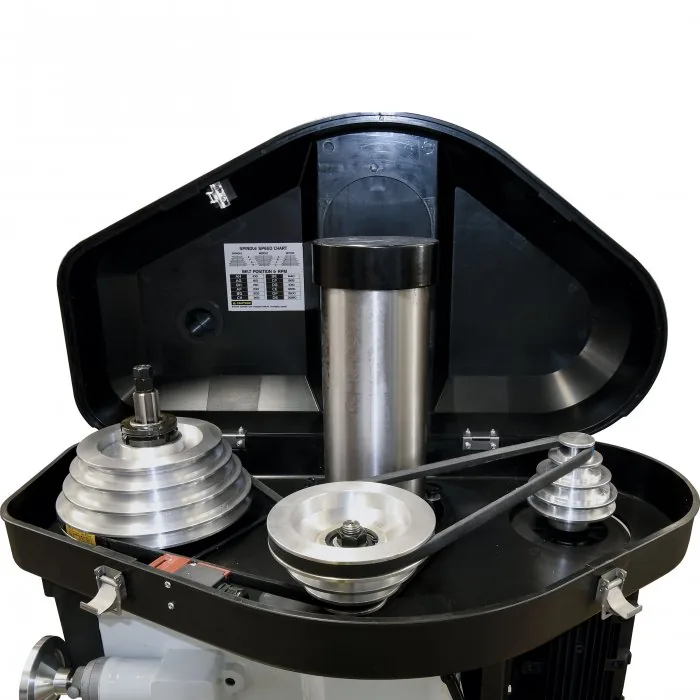

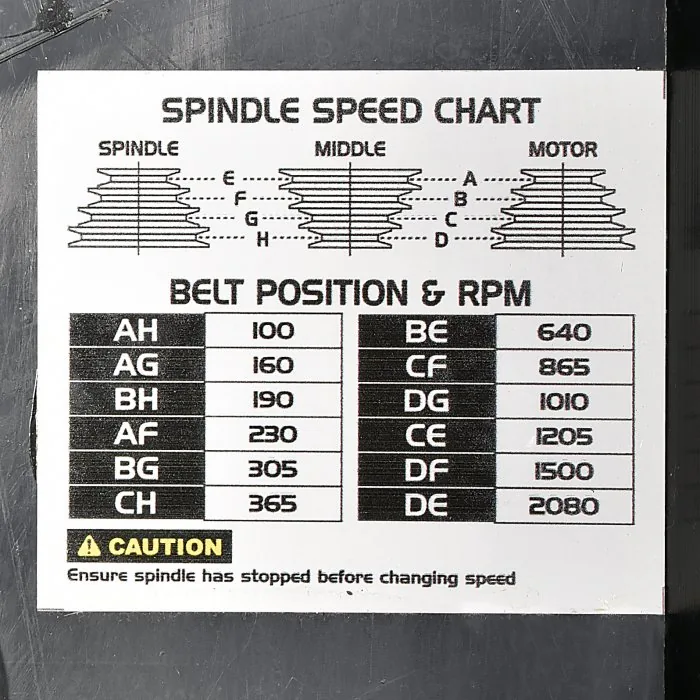

This new model HM-32B is a rugged and well made machine with good capacities and plenty of power, a good choice for a serious home engineer. The belt driven head provides a useful range of 12 speeds, 100-2080rpm and is quiet in operation, the head can be re-positioned on the column with the aid of a handle driven rack and pinion drive. The table has T slots to allow the work to be directly mounting to table, or in a milling vice, with two large diameter control hand wheels with metric calibrations for the longitudinal axis. The fine downfeed control can be locked firmly in position when milling and the mill also features an easy-to-read depth stop. Optional power feed provides smooth variable speed drive to longitudinal travel This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M137) for collection in store.
In the Box
- Drill chuck & arbor
- 3MT-2MT drill sleeve

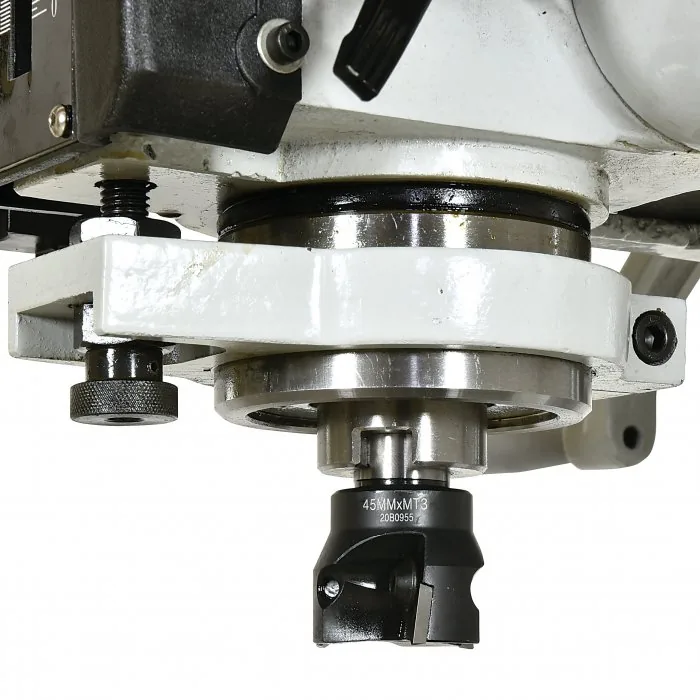

- Face cutter & arbor

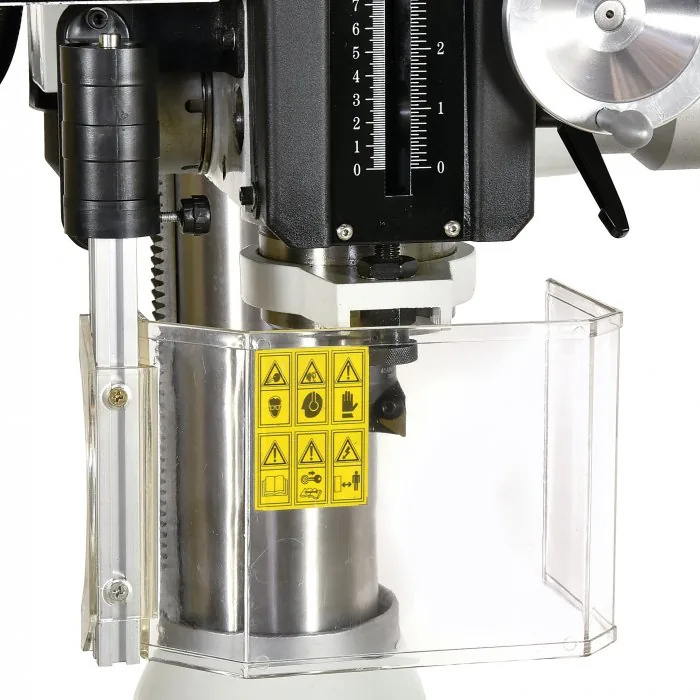

- Interlocked spindle safety guard
- 1/2″ x 12tpi whitworth drawbar
- M12 x 1.75mm metric drawbar
Product Specifications
| Specification | Detail |
|---|---|
| Digital Readout | Optional |
| Type | Vertical |
| Table Size (mm) | 820 x 240 |
| Column Type | Ø115mm |
| Spindle Taper – Vertical | 3MT |
| Longitudinal Travel (X-Axis) (mm) | 540 |
| Cross Travel (Y-Axis) (mm) | 235 |
| Vertical Travel (Z-Axis) (mm) | 310 |
| Type of Slides | Dovetail |
| Spindle to Table (mm) | 465 |
| Spindle Travel / Diameter (mm) | 130 / 75 |
| Throat Depth (max.) (mm) | 202 |
| Tilting Head (Left ~ Right) | Fixed |
| Tilting Head (Forward ~ Back) | Fixed |
| Drilling Capacity (mm) | 31.5 |
| End Milling Capacity (mm) | 22 |
| Face Milling Capacity (mm) | 80 |
| Power Feed – Longitudinal (X-Axis) (mm/min) | Optional |
| Table T-Slot Size (inch / mm) | 14 |
| Work Table Load Capacity (kg) | 55 |
| Spindle Speeds Vertical (No./ rpm) | 12 (100 – 2080) |
| Motor Power – Vertical Spindle (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 310 |
