TOOLMASTER

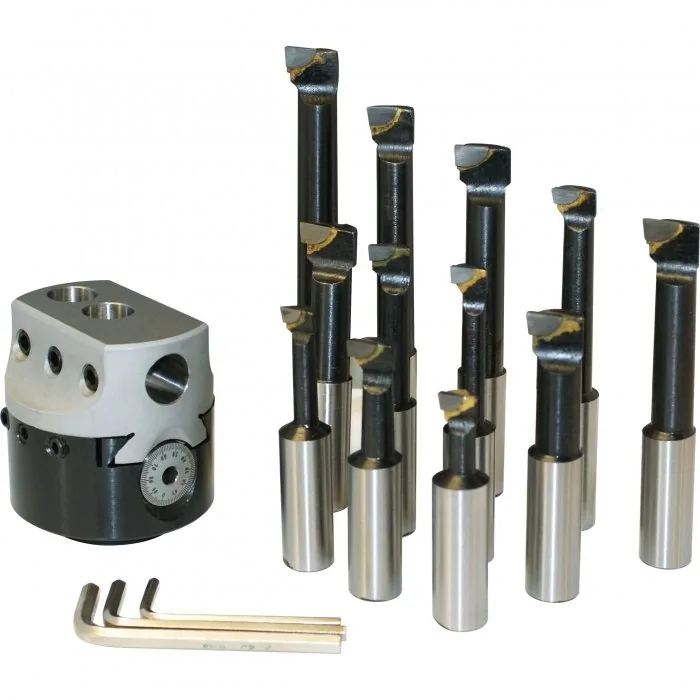

Precision Boring Head Kit — BC-3K, Ø75mm Head Requires Spindle Arbor To Suit Machine
Part No: M183 | Barcode: 9344195006722 | Model: BC-3K
TOOLMASTER BC-3K Precision Boring Head Kit (Ø75mm Head Requires Spindle Arbor To Suit Machine). This precision boring head features two vertical holes and one cross hole for securely holding boring bars. It allows precise adjustment of the boring bar at a right angle to the spindle axis, enabling accurate…
Model BC-3K
Ø75mm Head
Requires Spindle Arbor To Suit Machine
Key Features & Benefits
- Wide range of boring diameters and depths
- Boring diameter 10mm – 220mm
- Calibrated micro adjusting screw via a hexagon key.
- 1-1/2″ x 18TPI threaded body to mount optional arbors
- Accepts 18mm diameter boring bars

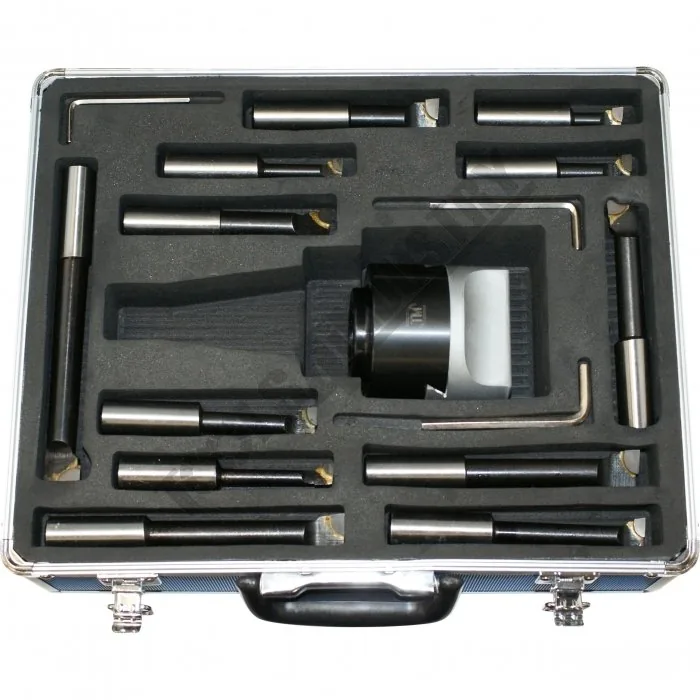

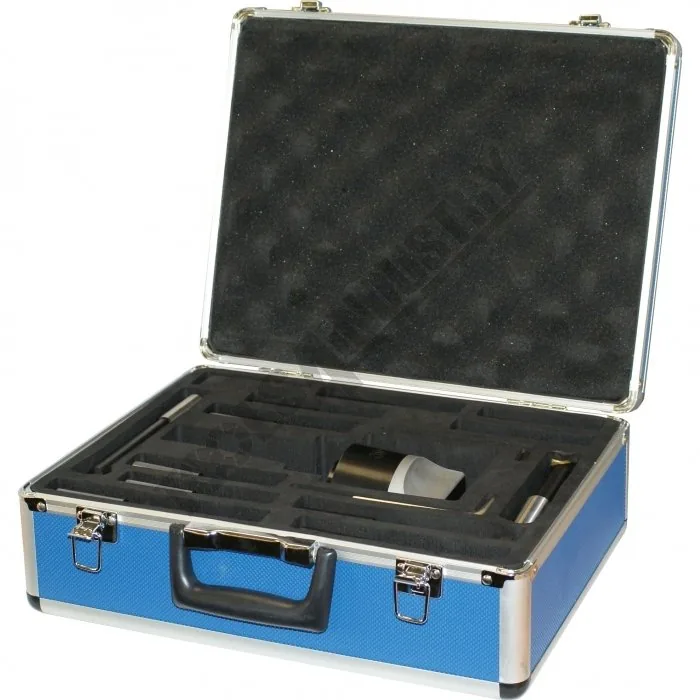

- Includes boring bars and aluminium foam padded case for protection
About This Product
This precision boring head features two vertical holes and one cross hole for securely holding boring bars. It allows precise adjustment of the boring bar at a right angle to the spindle axis, enabling accurate positioning for boring holes with diameters ranging from 10mm to 220mm. The hardened and ground direct-reading adjustment screw features a satin chrome dial face, providing 0.01mm precise adjustments with excellent visibility. Perfect for professionals seeking reliability in metalworking, this boring head delivers exceptional results. Note: Arbor sold separately. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M183) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Type | Boring |
| D (mm) | 75 |
| H (mm) | 80 |
| d (lowercase) (mm) | 18 |
| Centre Distance Between Holes (mm) | 23 |
| Micro Adjustment Travel (mm) | 25 |
| Nett Weight (kg) | 3.6 |
