Description
Milwaukee M18BLPDRC-0 — m18 brushless compact hammer drill available at Alltools Geelong. Shop our full m18 brushless compact hammer drill range in Geelong.
Milwaukee

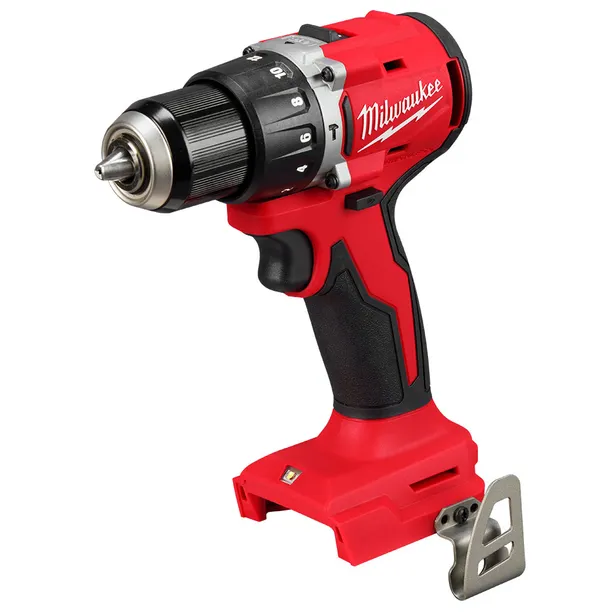

M18 Brushless Compact 13 mm Hammer Drill Driver — 62 Nm, Ultra-Short 148 mm
Part No: M18BLPDRC-0 | Barcode: 4892210233936
Milwaukee’s M18BLPDRC-0 is an ultra-compact 18V brushless hammer drill driver measuring just 148 mm long and weighing 1.04 kg bare. It delivers 62 Nm of torque with 12 clutch settings and 25,500 BPM hammer action, built for overhead work and tight-space drilling where a full-size drill is too bulky.
62 Nm Torque
25,500 BPM
1,700 RPM
13 mm Metal Chuck
148 mm Length
1.04 kg
18V M18 Platform
Suitable For
Light Masonry
Timber
Steel
Plasterboard
Cabinetry
Overhead Work
Key Features & Benefits
- Ultra-Compact 148 mm Length — one of the shortest 18V hammer drills available, fitting easily between studs, behind switchboards, and above ceiling grids.
- 1.04 kg Bare Weight — significantly lighter than full-size hammer drills, reducing arm fatigue during extended overhead drilling and driving sessions.
- All-Metal Gear Case and Chuck — provides the durability that full-size drills offer in a body half the size, standing up to daily site use.
- 12 Torque Settings + Drill + Hammer — variable clutch control for precision screw driving plus hammer mode for light masonry fixings up to 16 mm.
- 2-Speed Gearbox — low speed for high-torque driving and high speed (0–1,700 RPM) for fast drilling, both with variable-speed trigger control.
- REDLINK Intelligence — protects the tool and battery from overload, overheating, and over-discharge for reliable operation under demanding conditions.
When to Use This Compact Hammer Drill
The M18BLPDRC-0 is the drill for electricians, data cablers, and fit-out trades who work in tight spaces all day and need hammer-drill capability without the bulk. At 148 mm and just over a kilogram, it excels at overhead work in ceiling cavities, between closely spaced studs, and inside electrical enclosures. The 62 Nm output handles most general drilling and driving tasks — for heavy-duty work in hardwood or dense masonry, step up to the M18FPD30 FUEL hammer drill. This compact model is not a compromise tool; it is purpose-built for the 60–70% of drilling tasks that happen in spaces where full-size drills do not fit.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Tool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 18V |
| Max Torque | 62 Nm |
| No-Load Speed | 0–1,700 RPM |
| Impact Rate | 0–25,500 BPM |
| Chuck | 13 mm All-Metal |
| Clutch Settings | 12 + Drill + Hammer |
| Max Drilling — Masonry | 16 mm |
| Max Drilling — Steel | 13 mm |
| Max Drilling — Wood | 52 mm |
| Body Length | 148 mm |
| Weight (bare) | 1.04 kg |
| Motor | Brushless |
| Battery Platform | M18 REDLITHIUM |
| Warranty | 5 Years |
