Milwaukee

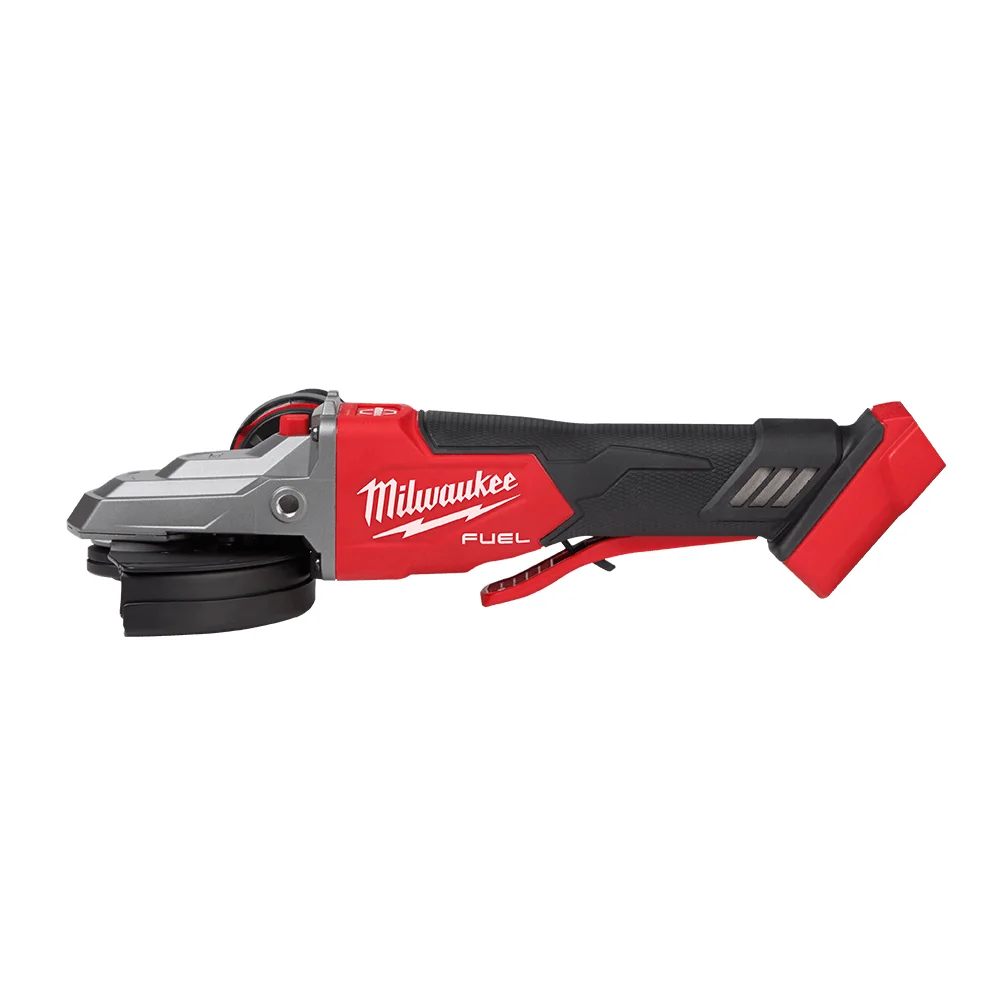

M18FAGF125XPDB-0 M18 FUEL 125mm Flathead Braking Angle Grinder — Skin Only
Part No: M18FAGF125XPDB-0 | Barcode: 4892210196774
The Milwaukee M18FAGF125XPDB-0 is an M18 FUEL 125mm flathead angle grinder with a low-profile head design that provides access into tight 40° angles where standard grinders cannot reach. RAPID STOP braking halts the disc in under 2 seconds, and at just 1.4 kg it is the lightest model in the Milwaukee M18 FUEL 125mm grinder range. Supplied as a skin — compatible with all Milwaukee M18 REDLITHIUM batteries.
125mm Disc
M18 (18V)
8,500 RPM
Flathead Design
40° Access
RAPID STOP <2 sec
1.4 kg
Skin Only
Suitable For
Confined Space Grinding
Corner & Edge Work
Metal Grinding
Cut-Off Operations
Weld Clean-Up
Fabrication
Key Features & Benefits
- Flathead Low-Profile Design (40° Access) — The reduced head height allows the disc to reach into corners and tight angles as narrow as 40°, eliminating the need for a separate die grinder in confined-space work.
- RAPID STOP Brake (<2 seconds) — Disc stops in under 2 seconds after releasing the paddle — faster than most M18 FUEL grinders and critical for safe tool changes in confined work areas.
- Lightest M18 FUEL 125mm Grinder at 1.4 kg — Exceptional power-to-weight ratio for a FUEL platform tool, reducing fatigue during overhead and access grinding where extra weight becomes a real burden.
- POWERSTATE Brushless Motor — Delivers consistent 8,500 RPM performance throughout the battery charge for sustained grinding and cutting tasks.
- Deadman Paddle Switch — No-lock design releases power immediately on grip loss — the safest switch type for confined-space work where recovery from slip is harder.
- FIXTEC Nut & Keyless Guard — Tool-free disc changes and guard repositioning, essential for productivity in confined spaces where you may be changing discs frequently.
- REDLINK PLUS Intelligence — Continuous electronic protection of motor, battery, and gearing against overload, overheat, and over-discharge.
When to Use This Grinder

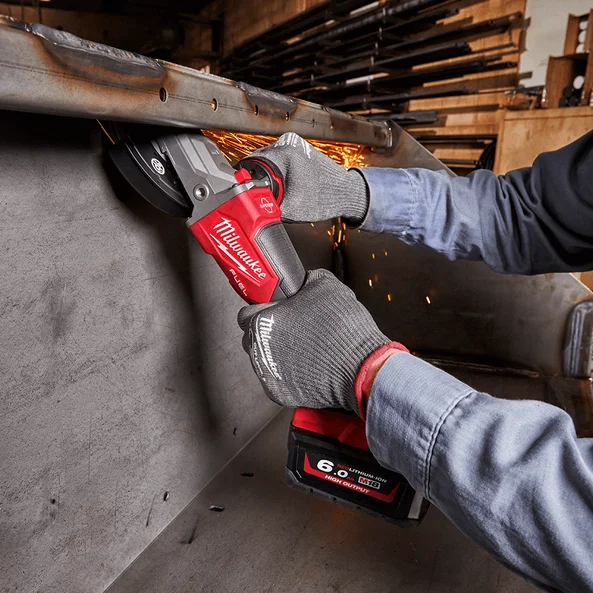

The M18FAGF125XPDB-0 is the specialist choice when you regularly grind or cut in tight corners, under flanges, inside structural sections, or any space where a standard grinder’s head height limits access. The 40° access angle is a genuine advantage in boilermaking, pipe fitting, and structural steel work. Its 1.4 kg weight also makes it the best option for overhead grinding where standard FUEL models become tiring. For open-area grinding, a standard-profile grinder will be equally effective at lower cost.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Tool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Detail |
|---|---|
| Model ★ | M18FAGF125XPDB-0 |
| Voltage | 18V (M18) |
| Disc Diameter | 125mm (5") |
| No-Load Speed | 8,500 RPM |
| Head Access Angle | 40° (flathead design) |
| Body Length | 356mm |
| Weight (tool only) | 1.4 kg |
| Disc Stop Time | <2 seconds (RAPID STOP) |
| Spindle Thread | M14 |
| Motor | POWERSTATE Brushless |
| Battery | M18 REDLITHIUM (sold separately) |
Note: This tool may not be shipped in its original packaging. Australian warranty still applies.
