Milwaukee

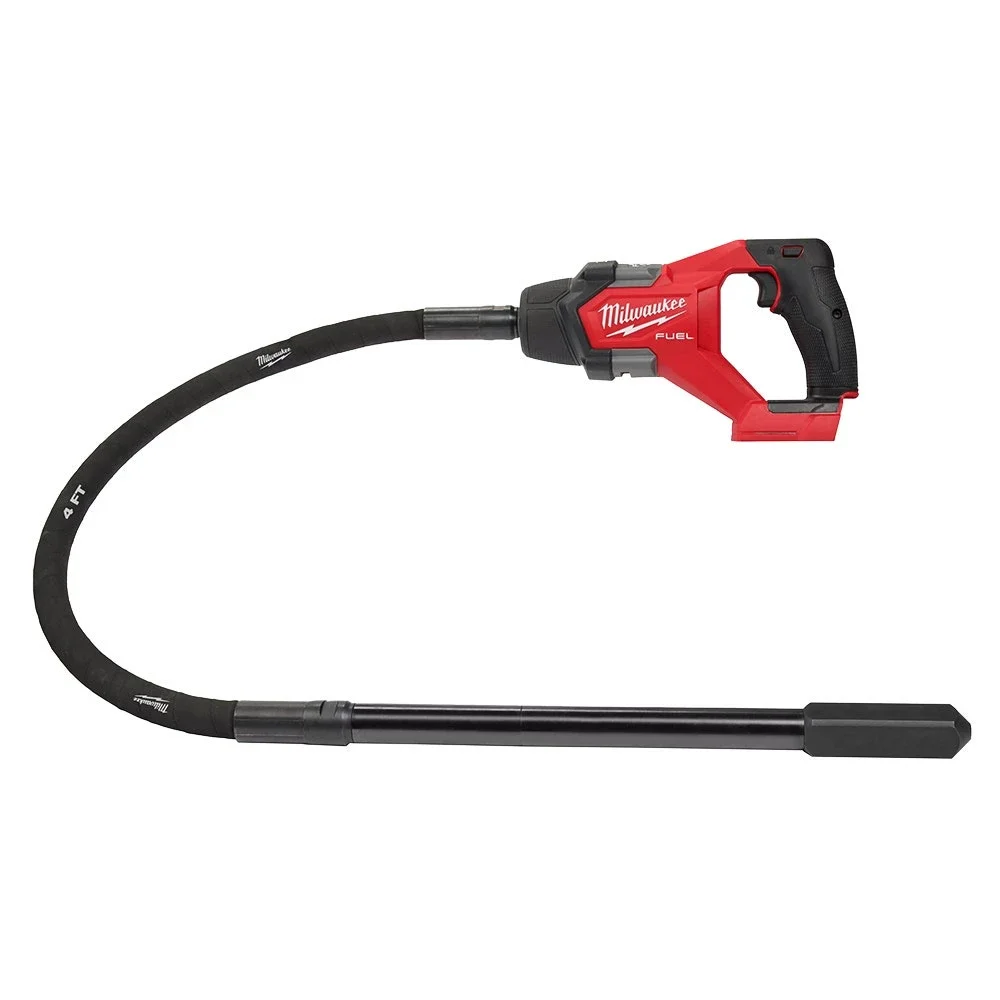

M18FCVN120 18V FUEL 1200mm Needle Concrete Vibrator — 25.4mm Head
Part No: M18FCVN120 | Barcode: 4892210211835
The Milwaukee M18FCVN120 is an 18V FUEL brushless cordless concrete vibrator with a 1,200mm (4′) shaft and 25.4mm (1″) square head. Delivering up to 12,500 VPM and 1.8 HP peak, it consolidates up to 18.9 m³ of concrete per charge — equivalent to approximately two truck loads on a single M18 5.0Ah battery.
18V M18 FUEL
12,500 VPM
1.8 HP Peak
1,200mm Shaft
25.4mm Head
18.9 m³ Per Charge
Variable Speed
Suitable Applications
Concrete Consolidation
Footings
Slabs
Columns
Retaining Walls
Precast Elements
Key Features & Benefits
- POWERSTATE brushless motor delivering 1.8 HP peak — provides the vibration power needed to consolidate concrete in footings, slabs, and columns effectively.
- 0–12,500 vibrations per minute with variable speed trigger — allows precise control to match vibration intensity to the pour size and concrete mix.
- 18.9 m³ consolidation per charge — handles approximately two full truck loads of concrete on a single M18 5.0Ah battery, eliminating cord and fuel dependencies.
- 1,200mm (4′) shaft length — reaches standard footing and slab depths without extension, covering most residential and light commercial pours.
- 25.4mm (1″) square head diameter — fits between standard rebar spacing in footings and narrow formwork sections.
- Cordless operation — eliminates the need for generators, extension cords, and fuel-powered vibrator units on remote or confined pour sites.
- Overload protection — prevents motor damage when working in dense or heavily reinforced concrete sections.
When to Use This Vibrator
Choose the M18FCVN120 for consolidating concrete in residential footings, slabs, retaining walls, and light commercial pours where a portable cordless vibrator eliminates the need for generators or compressed air. The 1,200mm shaft handles standard Australian footing depths up to 900mm with room to spare, while the 25.4mm head fits between standard rebar configurations. The variable speed trigger lets you reduce vibration intensity for thinner sections to avoid aggregate segregation. At 18.9 m³ per charge, most single-truck residential pours can be completed on one battery. Skin only — battery and charger sold separately.
Pro Tip: Insert the vibrator vertically and withdraw it slowly at a steady rate of about 75mm per second. Overlap insertion points by half the vibrator’s effective radius for complete consolidation without honeycombing.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Voltage | VPM | Peak HP | Head Dia. (mm) | Shaft Length (mm) | Capacity Per Charge (m³) | Weight (kg) | Barcode |
|---|---|---|---|---|---|---|---|---|
| M18FCVN120 ★ | 18V | 0–12,500 | 1.8 | 25.4 | 1,200 | 18.9 | 5.0 | 4892210211835 |
★ You are viewing the highlighted variant.
