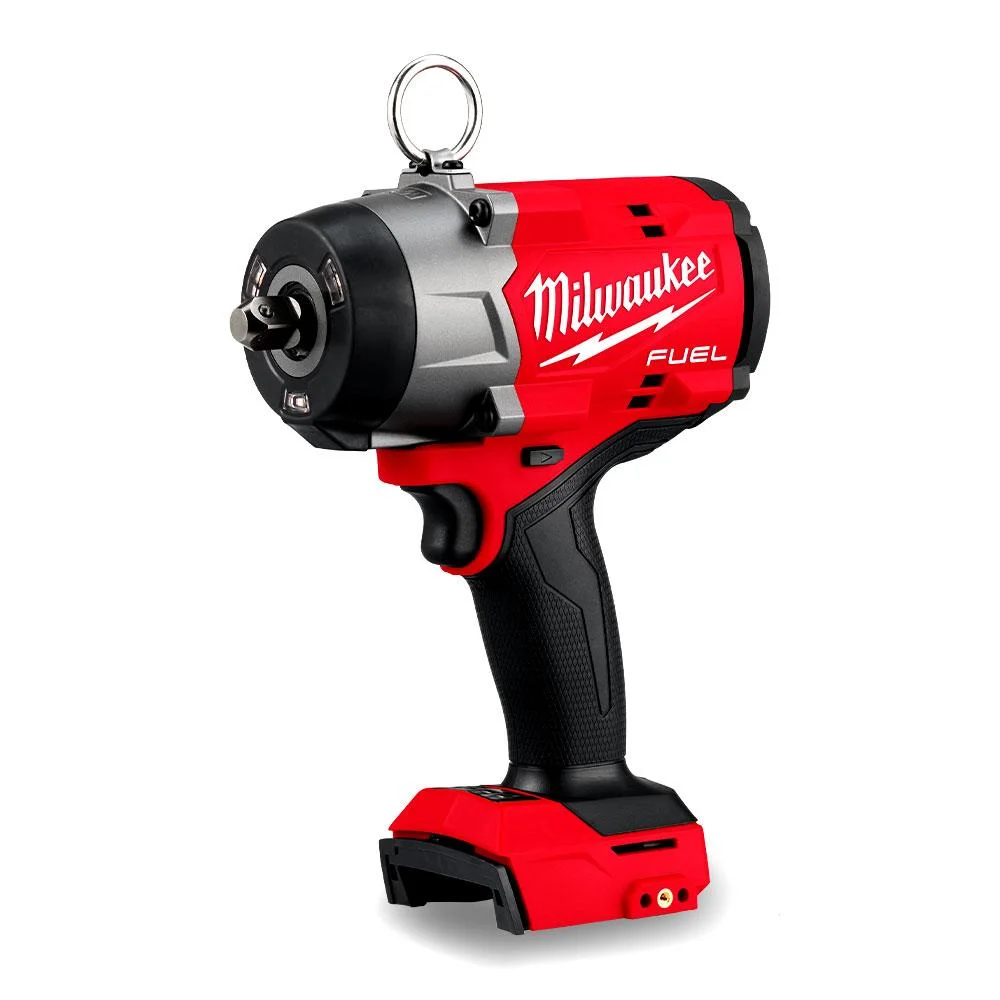

M18FHIW2P120 — M18 FUEL 1/2″ High Torque Impact Wrench with Pin Detent
Part No: M18FHIW2P120 | Barcode: 4892210224002
The Milwaukee M18FHIW2P120 is the M18 FUEL 1/2″ High Torque Impact Wrench with pin detent anvil, delivering up to 1,490Nm nut-busting torque and 1,220Nm fastening torque in a compact 185mm body. The pin detent provides the most secure socket retention for vertical and overhead work where socket drop-off is a safety concern.
18V M18 FUEL
1/2″ Pin Detent
1,490Nm Nut-Busting
1,220Nm Fastening
4-Mode Control
185mm Compact
2.4kg
Brushless
Suitable For
Heavy Automotive
Structural Steel
Overhead Work
Industrial Maintenance
Key Features & Benefits
- 1,490Nm nut-busting torque — breaks seized lug nuts, structural bolts, and heavy-duty fasteners across automotive and construction applications.
- 1,220Nm fastening torque — sustained output for seating large structural bolts and lag screws to specification.
- Pin detent anvil — positive socket locking mechanism prevents socket drop-off during overhead, vertical, and inverted work, a critical safety feature when working at height or under vehicles on hoists.
- 185mm compact body — shorter than the friction ring version, fitting into tight wheel arches and between structural members.
- 4-mode drive control — includes bolt removal mode (full torque then reduced RPM) and auto shut-off mode (68Nm max for hand-tight applications).
- POWERSTATE brushless motor — delivers consistent performance under heavy sustained load.
- Battery isolation system — secured battery connection controls vibration transmitted to the battery pack during high-impact operation.
- Tri-LED work light — three-angle illumination around the anvil eliminates shadows in dark work environments.
When to Use This Impact Wrench
The M18FHIW2P120 is the right choice when socket security is critical — overhead structural bolting, working on vehicle hoists where a dropped socket is a safety hazard, and any vertical application where gravity works against you. The pin detent holds the socket positively in place where a friction ring could allow it to slide off under vibration. Choose this over the friction ring M18FHIW2F12-0 when you work overhead frequently, or choose the friction ring version when fast socket changes are the priority.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Tool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Anvil | Nut-Busting | Fastening | Max RPM | Max IPM | Length | Weight |
|---|---|---|---|---|---|---|---|
| M18FHIW2F12-0 | Friction Ring | 2,034Nm | 1,491Nm | 2,000 | 2,400 | 193mm | — |
| M18FHIW2P120 ★ | Pin Detent | 1,490Nm | 1,220Nm | 2,000 | 2,700 | 185mm | 2.4kg |
★ You are viewing the highlighted variant. Other models in this series are also available.
