Description
ALIGN
Air Power Drawbar — PD-150, 3000rpm
Part No: M247 | Barcode: 9344195016363 | Model: PD-150
ALIGN PD-150 Air Power Drawbar (3000rpm). The Align air power drawbar kit has everything you need to streamline tool changes and increase production. The kit comes supplied with M12 & M16 extra-long drawbars and a drive body so you can cut and fabricate it to the exact length needed for your mill.
Model PD-150
3000rpm
Speed: 3000 rpm
Voltage: 24 V
Key Features & Benefits
- Suits NT30, NT40 spindle milling machines
- Air filter and lubricator
- A compressed air supply of 90PSI or equivalent and a 24V supply on the machine will be required for this item
- Optional drawbar available to suit R8 spindle milling machines
About This Product
The Align air power drawbar kit has everything you need to streamline tool changes and increase production. The kit comes supplied with M12 & M16 extra-long drawbars and a drive body so you can cut and fabricate it to the exact length needed for your mill. The adapter plate is already drilled to suit most mills, but is large enough to allow you to drill or slot mounting holes to fit your configuration. Installation information can be viewed by clicking “Downloads” and please note, some machining or modification maybe required to suit your machine. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M247) for collection in store.

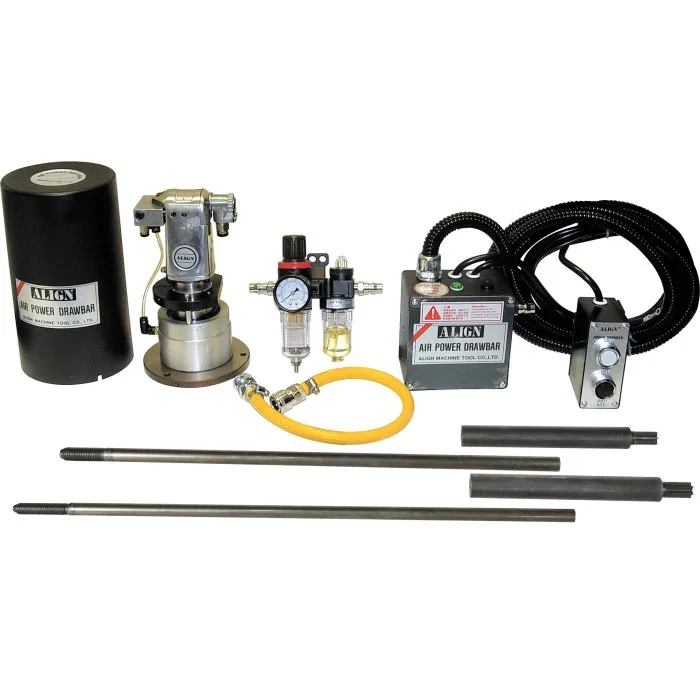

In the Box
- M12 Two piece drawbar to suit NT30 Taper
- M16 Two piece drawbar to suit NT40 Taper
Product Specifications
| Specification | Detail |
|---|---|
| Speed (rpm) | 3000 |
| Torque (ft/lb) | 150 |
| Air Pressure Required (PSI) | 90 |
| Voltage (V) | 24 |
| Nett Weight (kg) | 9.2 |
