Description
TOOLMASTER

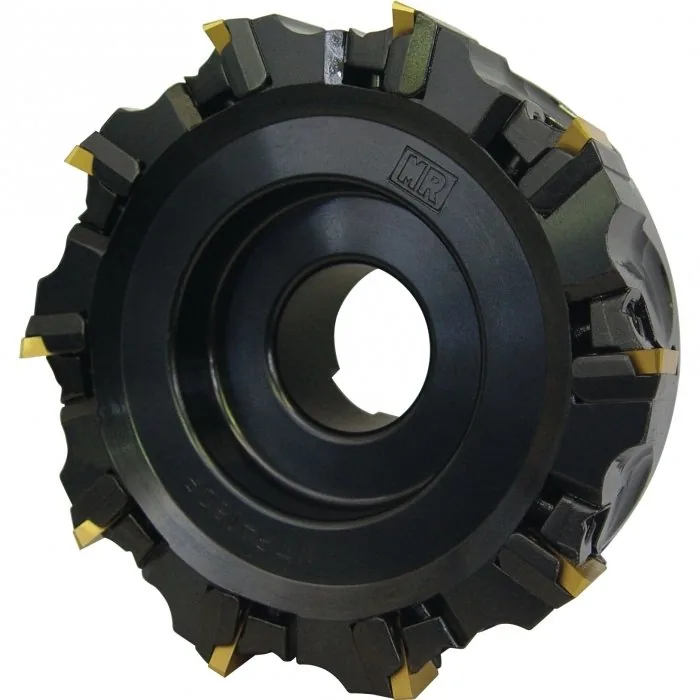

Face Mill 90º – Positive Rake — MTP4160, Ø160mm Insert tip not included
Part No: M504 | Barcode: 9344195015359 | Model: MTP4160
TOOLMASTER MTP4160 Face Mill 90º – Positive Rake (Ø160mm Insert tip not included). POSITIVE RAKE FACE MILL – 160mm x 90º Use carbide Inserts (ISO) TPKN2204 (L069) NOTE: Carbide Inserts not included
Model MTP4160
Ø160mm
Insert tip not included
Key Features & Benefits
- Suitable for steel, cast iron and non-ferrous metals
- Low cutting pressure
- Cuts true 90º
About This Product
POSITIVE RAKE FACE MILL – 160mm x 90º Use carbide Inserts (ISO) TPKN2204 (L069) NOTE: Carbide Inserts not included This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M504) for collection in store.
In the Box
- Lock key for insert
Product Specifications
| Specification | Detail |
|---|---|
| Cutter Approach Angle (deg) | 90º |
| D (mm) | 160 |
| H (mm) | 60 |
| d (lowercase) | 40mm |
| Number of Inserts (No.) | 10 |
| Replacement Insert Tips | (L069) |
| Nett Weight (kg) | 6.65 |
