Holemaker

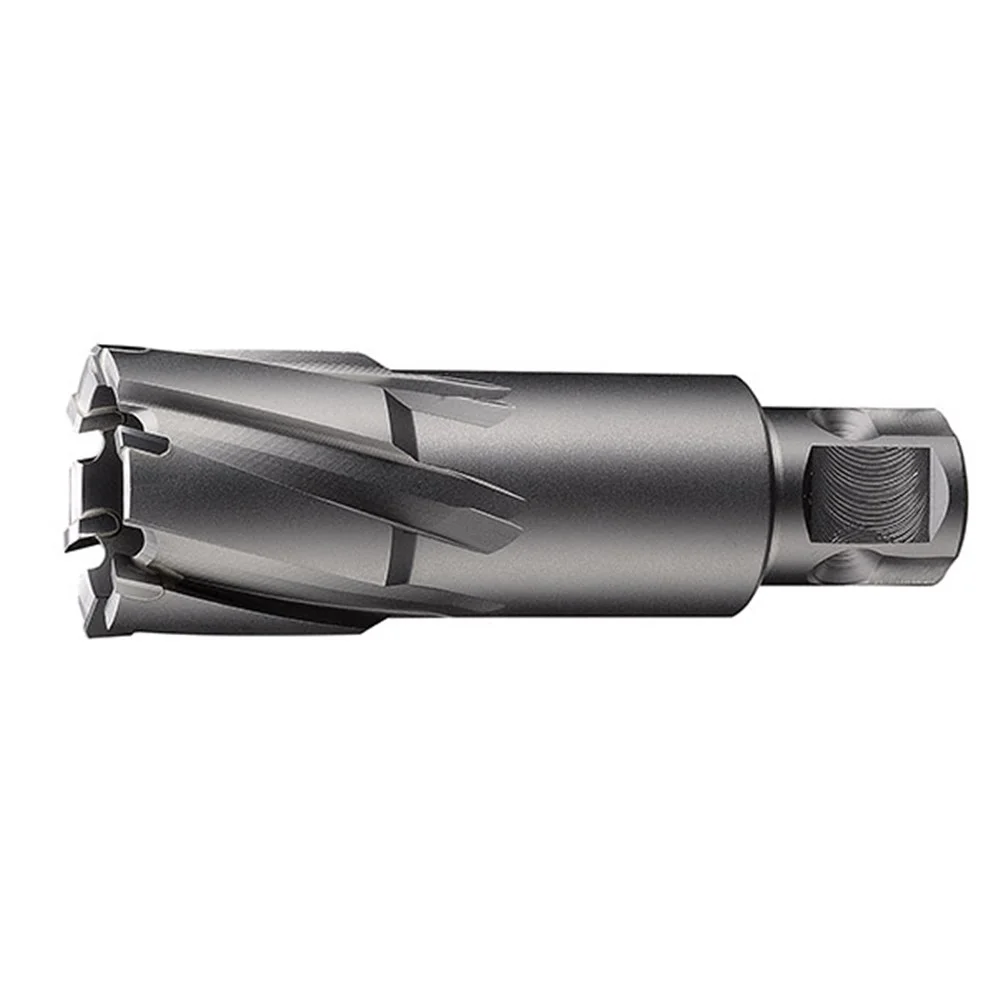

MAX50-75A Maxi-Cut TCT Annular Cutter 75mm x 50mm — 3/4″ Shank
Part No: MAX50-75A | Barcode: 9328042009029 | Product Group: Mag Drill Cutters
Holemaker Maxi-Cut 75mm x 50mm TCT annular cutter with tungsten carbide cutting teeth for heavy-duty cutting in mild steel, stainless steel, and Bisalloy wear plate. 3/4″ shank with replaceable and sharpenable carbide teeth.
75mm Diameter
50mm Cutting Depth
TCT (Tungsten Carbide)
3/4″ Shank
Sharpenable Teeth
Replaceable Teeth
Compatible Materials
Mild Steel
Stainless Steel
Bisalloy Wear Plate
Hardened Steel
Structural Steel
Key Features & Benefits
- Tungsten Carbide Tipped (TCT) Teeth — far harder and more durable than HSS, essential for cutting stainless steel, Bisalloy, and other hard or abrasive materials.
- 75mm Cutting Diameter — large-diameter capacity for heavy structural and plate work that exceeds the range of standard Gold Series HSS cutters.
- 50mm Cutting Depth — handles thick plate and structural sections up to 50mm in a single pass.
- Sharpenable and Replaceable Teeth — carbide teeth can be resharpened to extend cutter life, and individual teeth can be replaced when damaged, reducing long-term cost.
- 3/4″ Universal Shank — fits most magnetic base drilling machines with standard 3/4″ arbors.
When to Use This Cutter
The MAX50-75A is the choice when you need large 75mm holes in tough materials that would destroy HSS cutters. Use it for stainless steel, Bisalloy wear plate, hardened steels, and any application where tungsten carbide’s superior hardness and heat resistance are needed. Requires pilot pin SP18050 (8mm). For mild steel holes under 40mm diameter, the Gold Series TiN HSS cutters are more cost-effective.
Pro Tip: TCT cutters require lower cutting speeds than HSS. Reduce your RPM and use generous cutting fluid. The carbide teeth are harder but more brittle than HSS — avoid impacts and ensure the workpiece is securely clamped. When teeth dull, they can be resharpened on a diamond wheel.
Authorised Australian Dealer — This product is sourced directly from Holemaker Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Diameter | Cutting Depth | Tooth Material | Shank | Pilot Pin | Barcode |
|---|---|---|---|---|---|---|
| MAX50-75A ★ | 75mm | 50mm | TCT (Tungsten Carbide) | 3/4″ (19.05mm) | SP18050 (8mm) | 9328042009029 |
