HAFCO

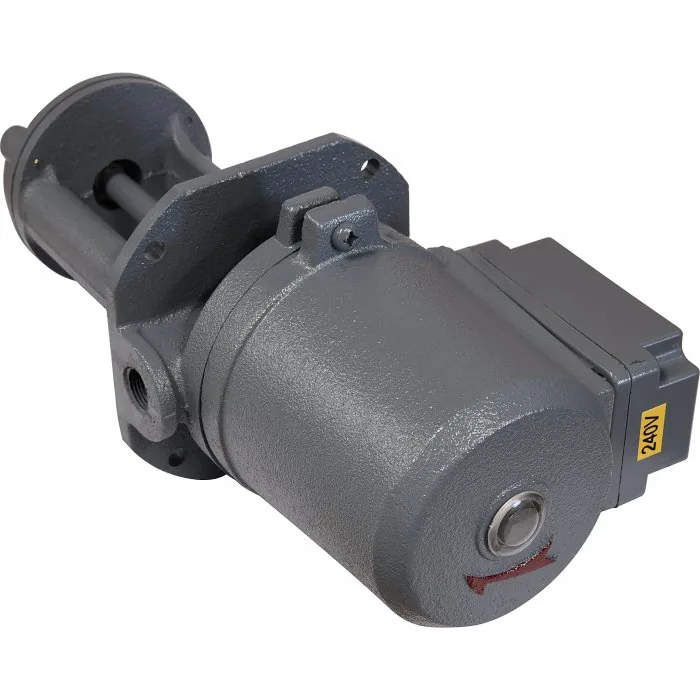

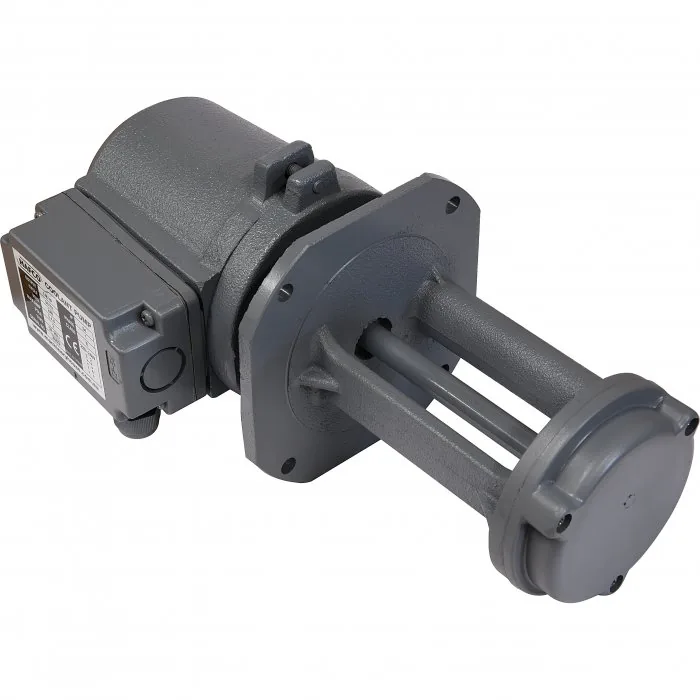

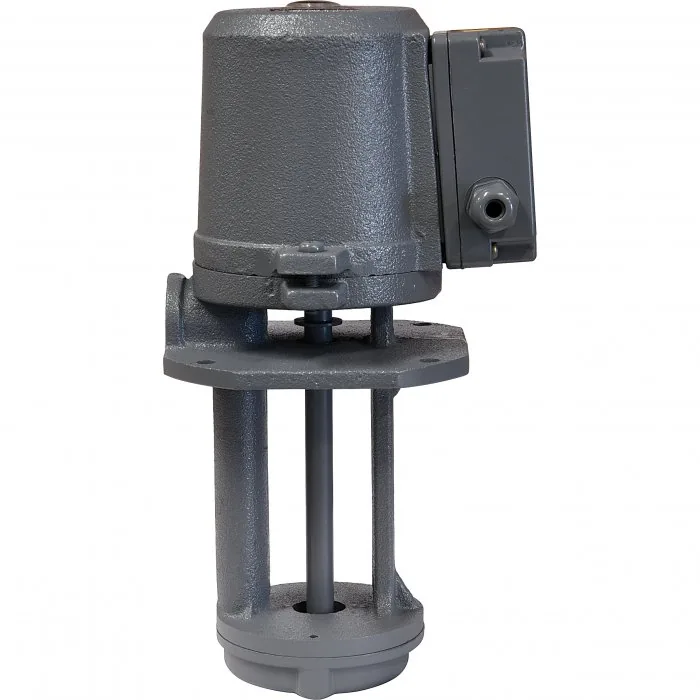

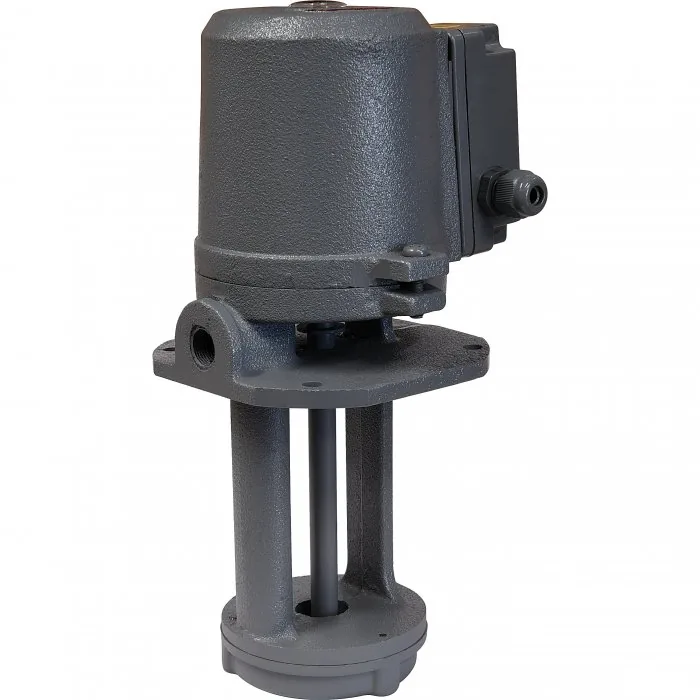

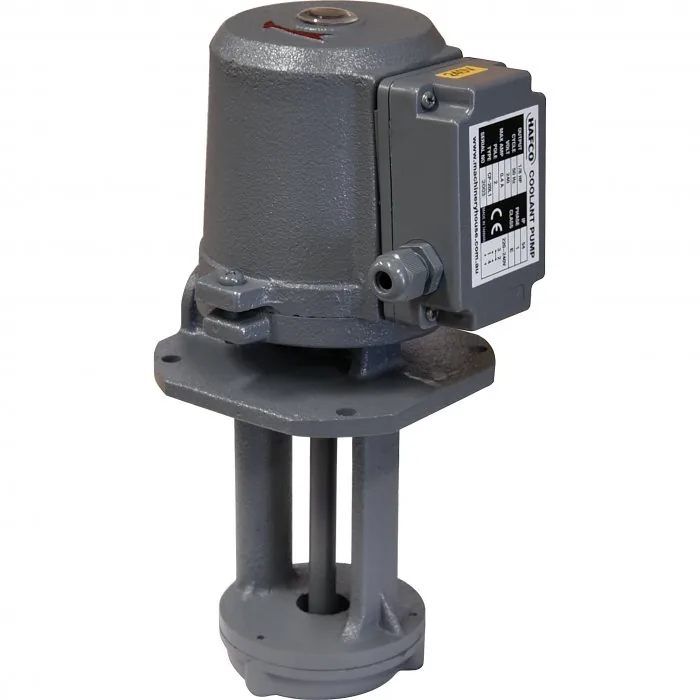

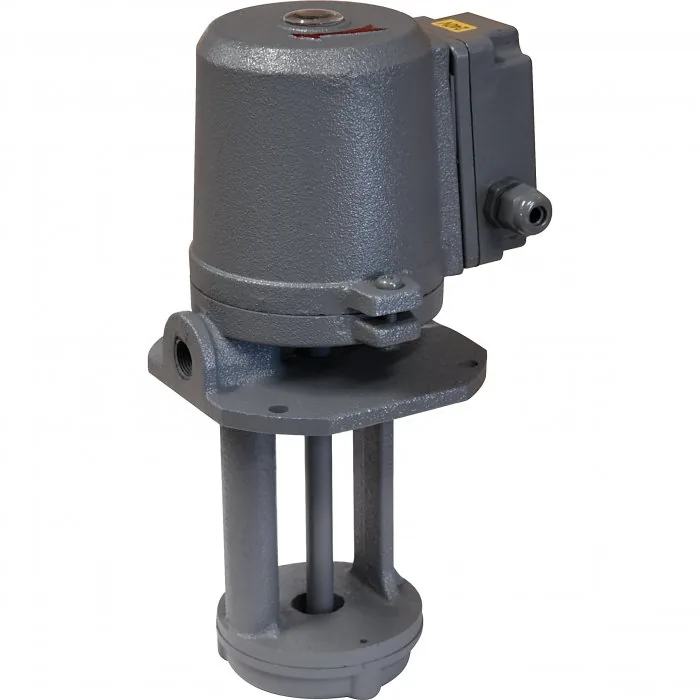

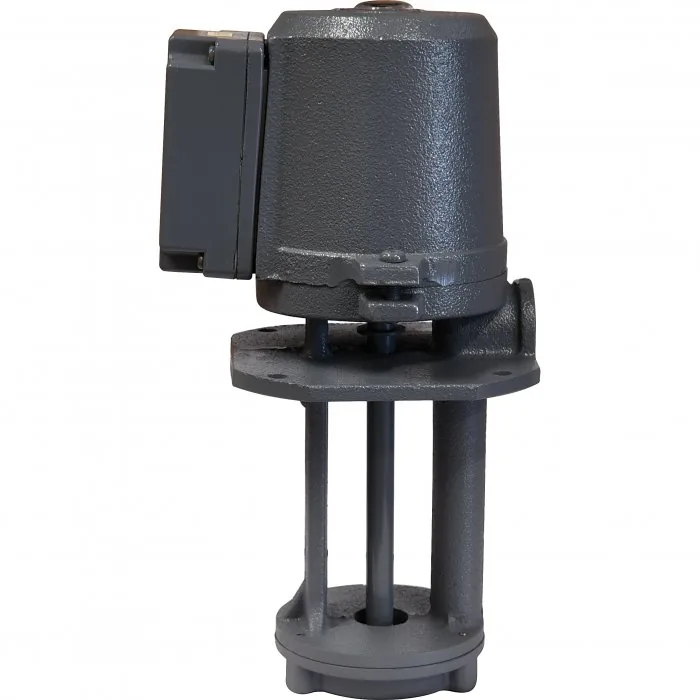

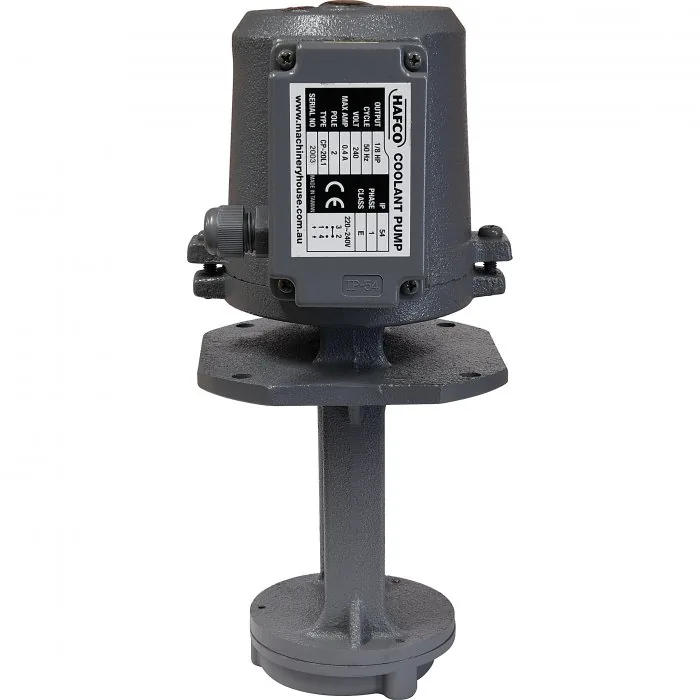

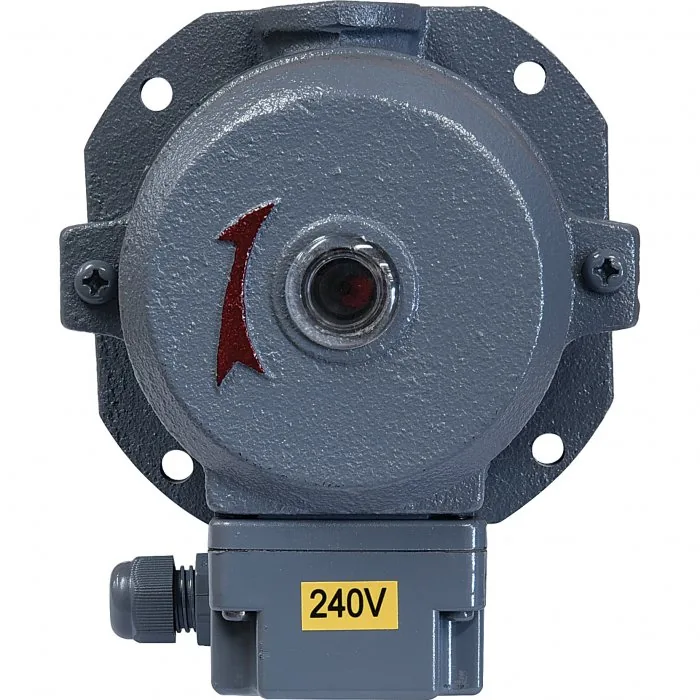

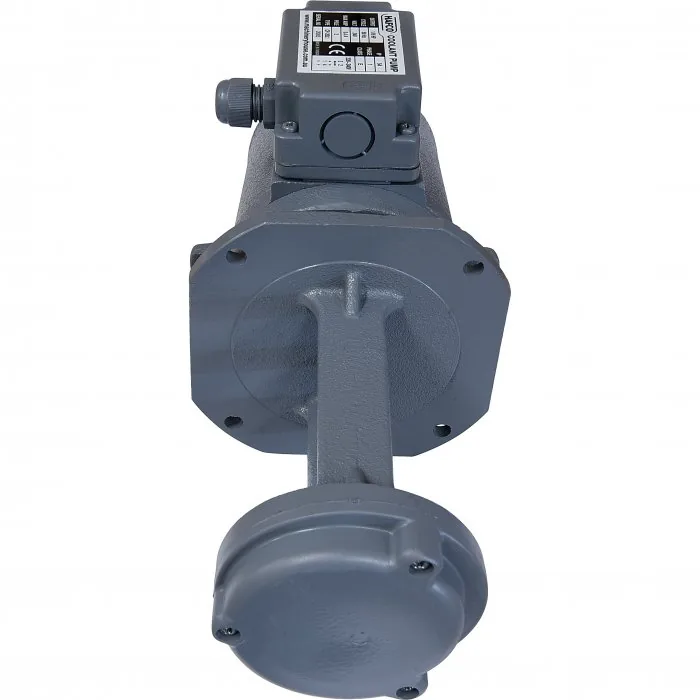

Coolant Pump — CP-20L1, 1/8hp, 240V Motor 135mm Submersible Leg & 20 Litres/Min. At 1 Metre Lift
Part No: P232 | Barcode: 9344195010699 | Model: CP-20L1
HAFCO CP-20L1 Coolant Pump (1/8hp, 240V Motor 135mm Submersible Leg & 20 Litres/Min. At 1 Metre Lift). 135mm Leg COOLANT PUMP BARE – 240V Bare pump for almost any application
Model CP-20L1
1/8hp, 240V Motor
Motor Power: 1/8 hp
Voltage / Amperage: 240 / 10
Key Features & Benefits
- 20 litres/min. at 1 metre lift
- 135mm submersible leg
- Non-corrosive plastic impellers
- Please Note: Motor housing should never be submersed or have any fluid splashed on it
About This Product
135mm Leg COOLANT PUMP BARE – 240V Bare pump for almost any application This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P232) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Type | Coolant Pump |
| Discharge at 1 metre Lift (L/min) | 20 |
| Length (L) (mm) | 290 |
| Submerge Depth (L1) (mm) | 134 |
| 4 Mount Holes (PCD) (mm) | 128 |
| Threaded Outlet (BSPT) | Ø3/8″ |
| A (mm) | 96 |
| B (mm) | 95 |
| C (mm) | 290 |
| D (mm) | 134 |
| E (mm) | 121 |
| F (mm) | 90 |
| G (mm) | 156 |
| H | 3/8″ PT |
| I (mm) | 128 |
| J (mm) | 8 |
| K (mm) | 6 |
| Motor Power (hp) | 1/8 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Dimensions (L x W x H) (mm) | 300 x 150 x 210 |
| Nett Weight (kg) | 6.1 |
