Description
M7

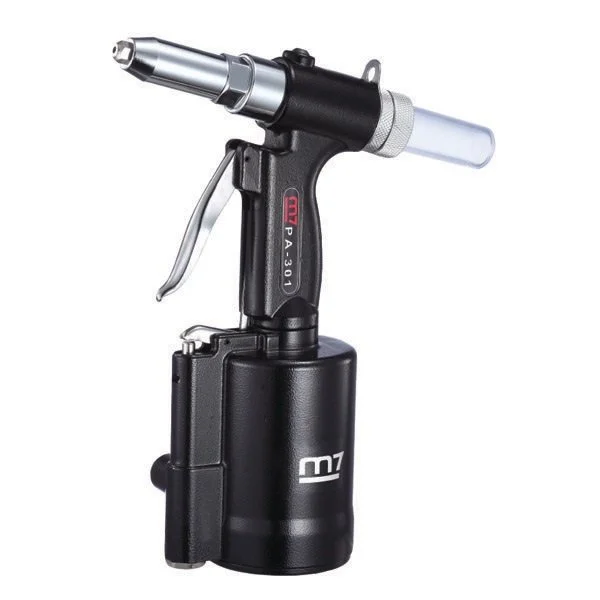

M7 Air Hydraulic Riveter 2.4–4.8mm PA301
Part No: PA301 | Barcode: 4711225450223
The M7 PA301 is an air-hydraulic riveter for setting blind (pop) rivets from 2.4mm to 4.8mm quickly and effortlessly in sheet metal, panels and fabrication work. Air-over-hydraulic power sets rivets with a light squeeze and no arm fatigue.
2.4–4.8mm rivets
16mm stroke
1,045 kgf traction
Quick-release valve
Low vibration
90 PSI
Key Features & Benefits
- Air-hydraulic power — Sets rivets up to 4.8mm with minimal effort — far faster than a hand riveter.
- 16mm long stroke — Pulls even long-grip rivets fully home in a single action.
- Quick-release air valve — Returns the cylinder rapidly for high-speed repetitive riveting and prevents overloading.
- Low vibration & noise — Quiet, comfortable operation reduces fatigue over long riveting runs.
When to Use This Riveter
Reach for the PA301 for volume blind-riveting of sheet metal, panels, ducting and general fabrication with rivets up to 4.8mm. Ideal for production and automotive body work.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from M7 Australia, with local support and service.
Product Specifications
| Part No. | Rivet Capacity | Stroke | Traction |
|---|---|---|---|
| PA301 ★ | 2.4–4.8mm | 16mm | 1,045 kgf |
| PA201 | 2.4–6.4mm | 14mm | 1,603 kgf |
★ You are viewing the highlighted variant. Other models in this series are also available.
