Description
MEASU-MAX

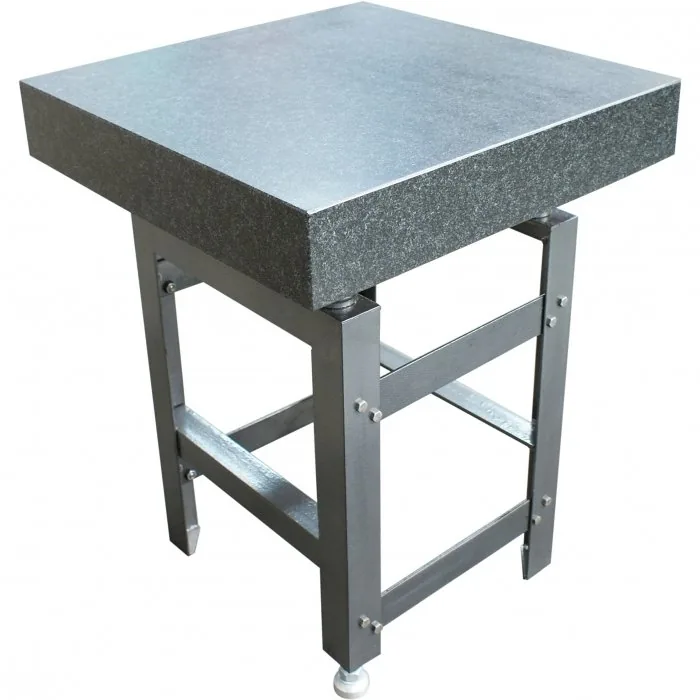

Granite Surface Plate — 38-810, 600 x 600mm
Part No: Q810 | Barcode: 9344195006616 | Model: 38-810
MEASU-MAX 38-810 Granite Surface Plate (600 x 600mm). Granite surface plates have become the preferred choice over cast iron plates due to their superior performance and practicality. Unlike cast iron, granite is resistant to rust, warping, and impact damage, ensuring long-lasting accuracy.
Model 38-810
600 x 600mm
Key Features & Benefits
- Manufactured to Grade O, Precision DIN00
- Flatness within 3.253/μm
- Hard wearing
- Test Certificate
- 1000mm work height
About This Product

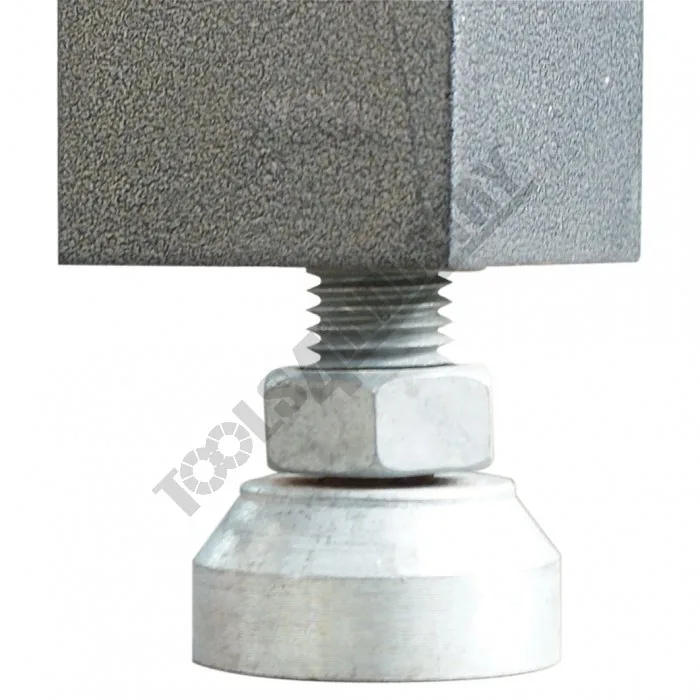

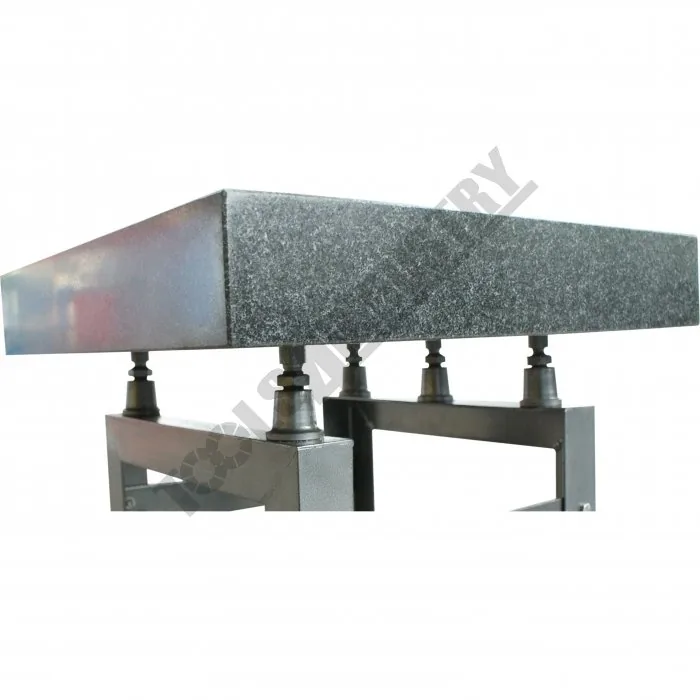

Granite surface plates have become the preferred choice over cast iron plates due to their superior performance and practicality. Unlike cast iron, granite is resistant to rust, warping, and impact damage, ensuring long-lasting accuracy. Its lower coefficient of thermal expansion minimizes distortions caused by temperature changes, making it ideal for precision applications. Additionally, granite’s non-magnetic and non-seizing properties contribute to smoother, more reliable operation. Precision granite surface plates are crafted from dense black granite, which is stronger, more stable, and more wear-resistant than lighter-colored varieties. This high-density material ensures exceptional stiffness and accuracy, allowing for reduced plate thickness without compromising performance. MeasuMAX granite surface plates come with an adjustable leveling metal stand equipped with five jacks for easy levelling. Each plate is calibrated in a controlled 20°C environment to guarantee precise measurements. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code Q810) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Surface Material Type | Granite |
| Surface Plate (L x D x H) (mm) | 600 x 600 x 100 |
| Stand (L x D x H) (mm) | 460 x 410 x 680 |
| Nett Weight (kg) | 100 |
