MEASUMAX

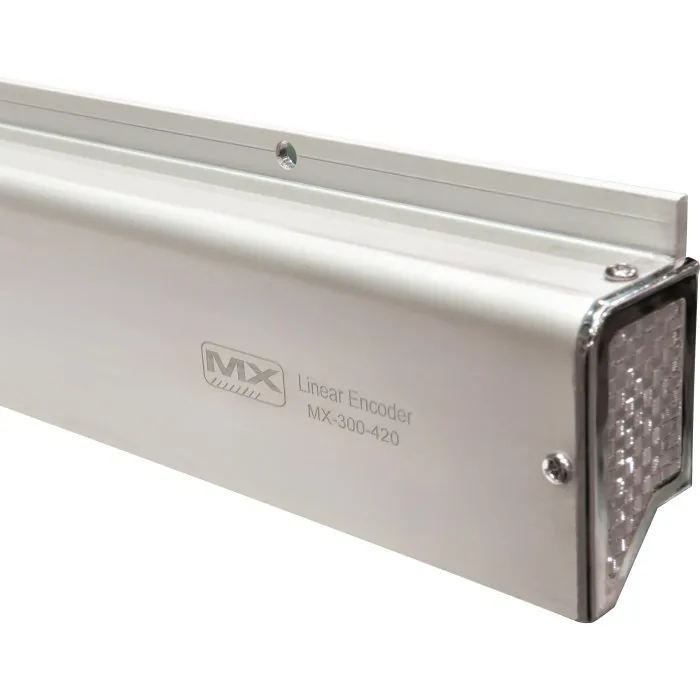

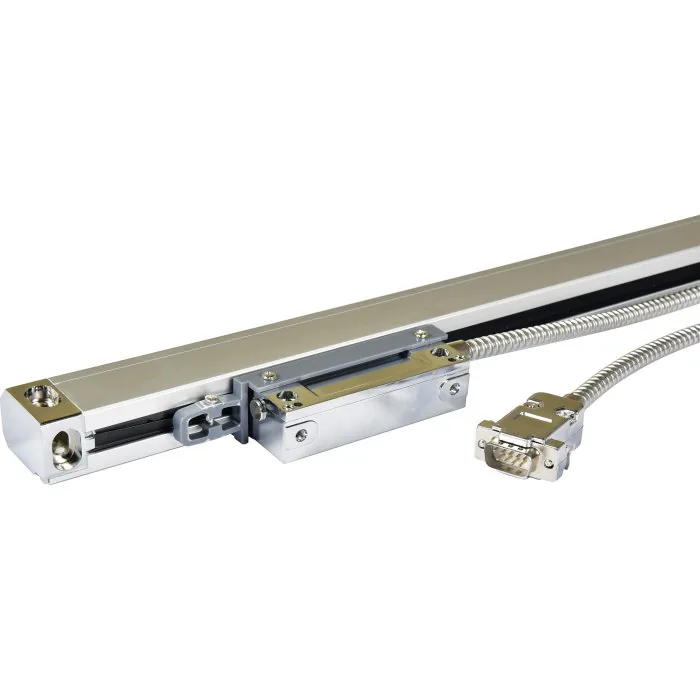

920mm Digital Readout Scale — MX-300-920/5U, MX-300 Standard Scale 5µm Resolution
Part No: Q8536 | Barcode: 9344195323041 | Model: MX-300-920/5U
MEASUMAX MX-300-920/5U 920mm Digital Readout Scale (MX-300 Standard Scale 5µm Resolution). The Measumax MX-300 & MX-600 series linear scales are available in measuring lengths from 370 to 3000mm. With a 5μm resolution and a response speed of 60m/min these scales deliver 100% accuracy.
Model MX-300-920/5U
MX-300 Standard Scale
5µm Resolution
Travel – Maximum: 920 mm
Maximum Speed: 60M/Min
Key Features & Benefits
- NSK Japanese, five bearing sliding structure for a smooth and accurate movement along the length of the scale
- Glass scale with 5μm resolution
- Scale body made from extruded Aluminium with wiper seals providing IP54 protection
- MX-300 series 15 x 34.5mm (W x H) section
- 3m connection cable with 9 pin D-Sub connector
About This Product
The Measumax MX-300 & MX-600 series linear scales are available in measuring lengths from 370 to 3000mm. With a 5μm resolution and a response speed of 60m/min these scales deliver 100% accuracy. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code Q8536) for collection in store.
In the Box

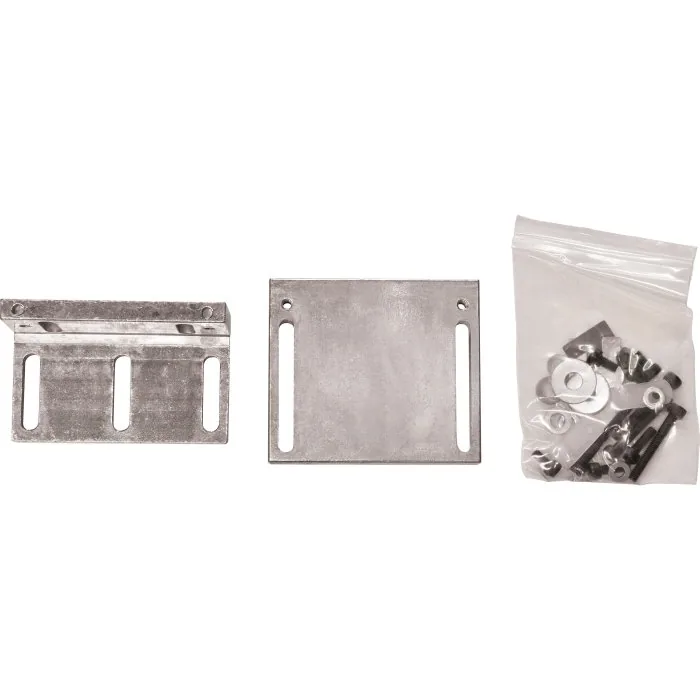

- 920mm Linear scale
- Scale cover
- 1 x Angle ‘B2’ Bracket Slotted and Tapped (40x50x8mm x 80mm wide)
- 1 x Flat ‘D2’ Bracket Slotted and Tapped (70x80x10mm)
- Screws and washers
Product Specifications
| Specification | Detail |
|---|---|
| Type | Linear Scale |
| Travel – Maximum (mm) | 920 |
| Overall Length (L) (mm) | 1026 |
| Scale Resolution (µm) | 5μm (0.005mm) |
| Grating Pitch | 20μm (0.02mm) |
| Accuracy (µm) | ±0.005mm，±0.01mm/M |
| Output Signal | 5V TTL |
| Connector | 9 pin D-Sub |
| Cable Length (Metre) | 3m metal conduit |
| Working Temperature (°C) | -10℃—60℃ |
| Sealing Protection Class | Class: IP54 |
| Maximum Speed (M/min) | 60M/Min |
| Reference Point | Every 50mm |
| Backing Support Plate (Yes / No) | Yes |
