VERTEX

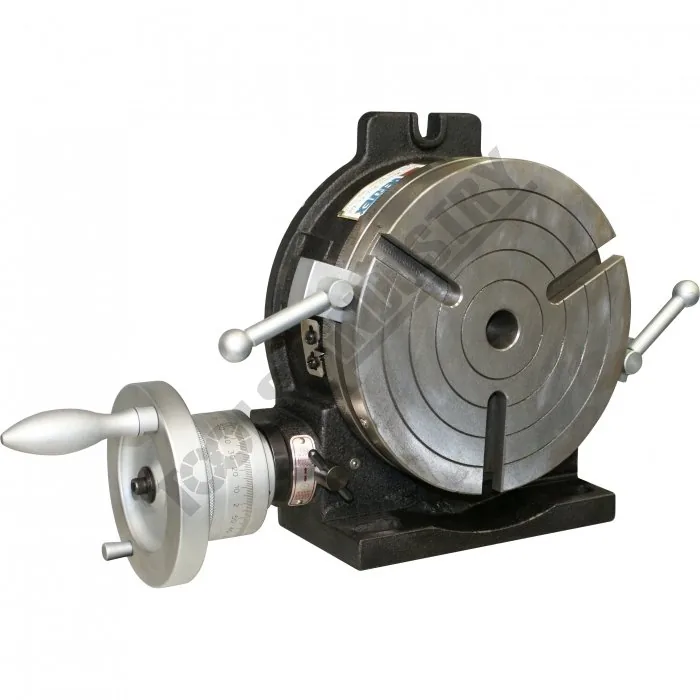

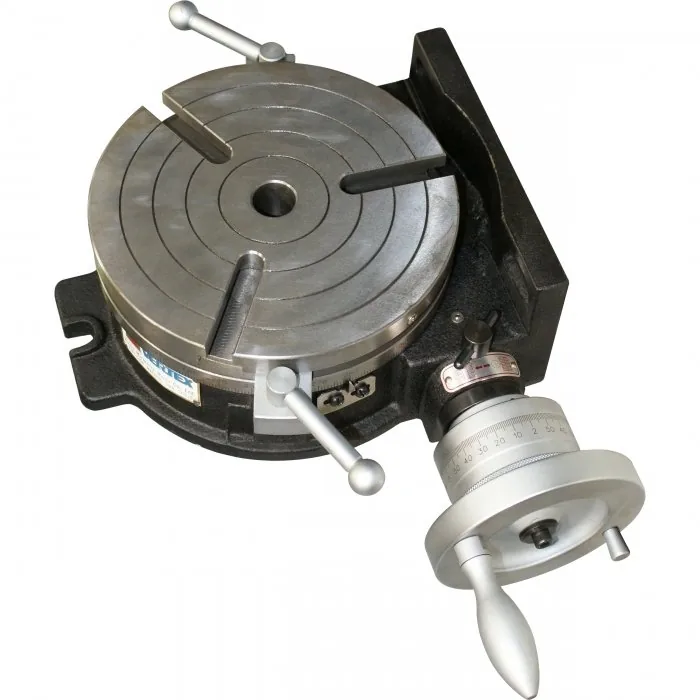

Vertex Rotary Table — HV-8, Ø203mm
Part No: R008 | Barcode: 9344195019050 | Model: HV-8
VERTEX HV-8 Vertex Rotary Table (Ø203mm). The Vertex Rotary Table has been designed to be used where a precision work positioning device is required. It allows the operator to mill or drill components at exact intervals around a fixed axis.
Model HV-8
Ø203mm
Key Features & Benefits
- The Vertex Rotary Table is manufactured from high-density Meehanite cast iron with ground surface areas on the table and body to ensure smooth rotation
- Critical wear parts are hand finished for ultra precision
- All tables are tested for accuracy using ‘Heidenhain’ electronic equipment to ensure continuing quality
- Worm is hardened and precision ground, with a ratio of 90:1
- Table is graduated to a full 360º so one turn of the handle moves the table 4º
- The collar on the handle is graduated with a vernier scale, readings down to 10 seconds are possible
About This Product
The Vertex Rotary Table has been designed to be used where a precision work positioning device is required. It allows the operator to mill or drill components at exact intervals around a fixed axis. Additional indexing plates can be fitted to allow the Vertex Rotary Table to be used as a Dividing Head. The Vertex Rotary Table can be used in both the horizontal or vertical plane. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code R008) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Size (mm) | 203 |
| A1 (mm) | 100 |
| D (mm) | 200 |
| H (mm) | 105 |
| H1 (mm) | 135 |
| A (mm) | 265 |
| B (mm) | 220 |
| e (mm) | 14 |
| g (mm) | 17 |
| Number of T-Slots (No.) | 3 |
| T-Slot Size (mm) | 14 |
| Taper In Centre (MT) | 3MT |
| Nett Weight (kg) | 30 |
