Allstate Trailer Spares R1907FG — ford 5 stud galvanised lazy available at Alltools Geelong. Shop our full ford 5 stud galvanised lazy range in Geelong.
Allstate Trailer Spares

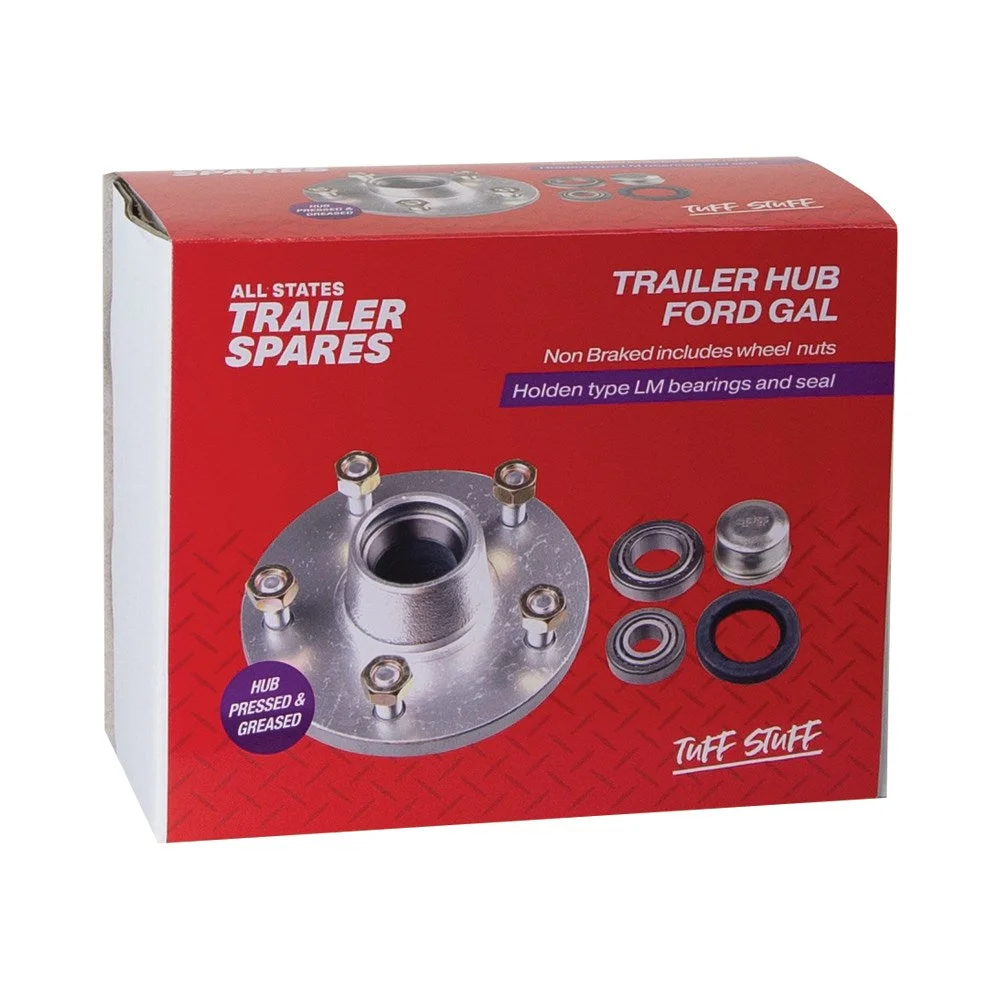

Ford 5-Stud Galvanised Lazy Trailer Hub with LM (Holden) Bearings
Part No: R1907FG | Barcode: 9343965000700 | Series: ASTSS Lazy Hubs
Galvanised (zinc-plated) lazy trailer hub with ford 5-stud stud pattern (5×114.3 PCD) pre-fitted with LM (Holden) bearings, seals and dust cap. Ready to bolt onto your trailer axle for a complete hub assembly.
Ford 5-Stud
5×114.3 PCD
LM Bearings
Galvanised
Lazy Hub
Suitable For
Box Trailers
Car Trailers
Boat Trailers
Ford 5-Stud Wheels
Key Features & Benefits
- Galvanised finish — zinc-plated steel construction provides excellent corrosion resistance, ideal for trailers exposed to rain, coastal air and boat ramp submersion.
- Ford 5-Stud stud pattern — 5×114.3 PCD bolt pattern to accept ford 5-stud pattern wheels, one of the most common configurations on Australian trailers.
- LM (Holden) bearings pre-fitted — hub comes with bearings, seals and dust cap already installed. Simply bolt on and grease — no bearing pressing or seal fitting required.
- Lazy hub design — the hub rotates on the axle stub via the bearings while the axle remains fixed. Standard design for unbraked trailer axles up to 750kg per hub.
- Australian distributed by ASTSS — All States Trailer Spares is a family-owned Australian distributor with over 2,500 trailer parts in their range.
When to Use This Hub
Choose the R1907FG when you need a galvanised lazy hub with ford 5-stud stud pattern and LM (Holden) bearings. Before ordering, confirm your stud pattern by measuring the PCD (pitch circle diameter) of your existing hub or wheels. You also need to match the bearing type — check your existing bearings or measure the stud diameter (11mm = Holden/LM, 12.4mm = Ford/SLM).
Authorised Australian Dealer — This product is sourced directly from Allstate Tooling Solutions Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Stud Pattern | PCD | Bearing Type |
|---|---|---|---|
| R1907FG ★ | Ford 5-Stud | 5×114.3 | LM (Holden) |
| R1907TG | HT 5-Stud | 5×120.65 | LM (Holden) |
| R1908FG | Ford 5-Stud | 5×114.3 | SLM Slimline |
| R1908TG | HT 5-Stud | 5×120.65 | SLM Slimline |
| R1909B | Land Cruiser 6-Stud | 6×139.7 | LM (Holden) |
| R1909C | Land Cruiser 6-Stud | 6×139.7 | SLM Slimline |
★ You are viewing the highlighted variant. Other hub configurations are also available.
