Allstate Trailer Spares
HT 5-Stud Galvanised Lazy Trailer Hub with SLM Slimline (Ford) Bearings
Part No: R1908TG | Barcode: 9343965000717 | Series: ASTSS Lazy Hubs

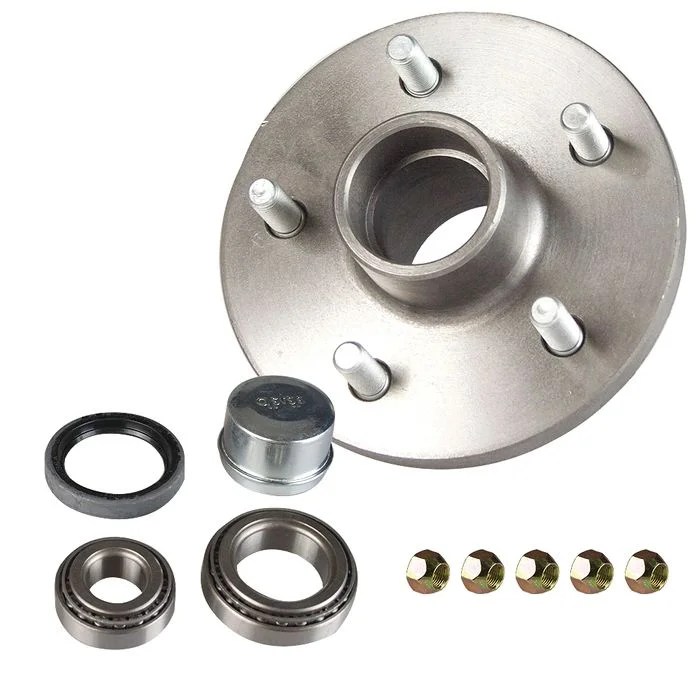

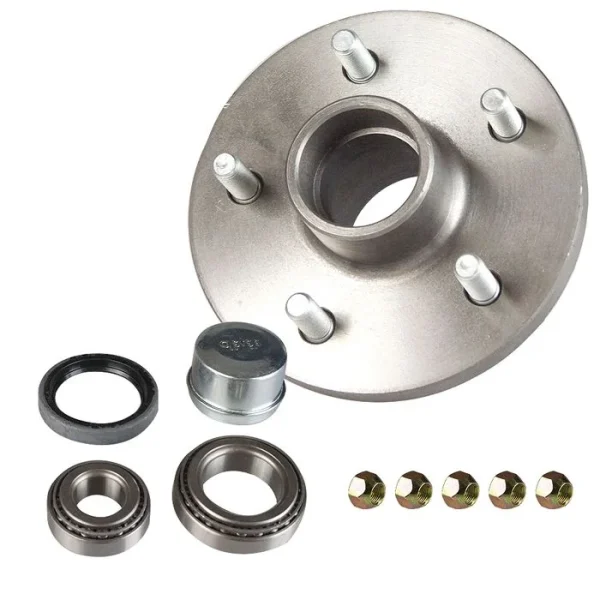

Galvanised (zinc-plated) lazy trailer hub with ht 5-stud stud pattern (5×120.65 PCD) pre-fitted with SLM Slimline (Ford) bearings, seals and dust cap. Ready to bolt onto your trailer axle for a complete hub assembly.
HT 5-Stud
5×120.65 PCD
LM Bearings
Galvanised
Lazy Hub
Suitable For
Box Trailers
Car Trailers
Boat Trailers
HT 5-Stud Wheels
Key Features & Benefits
- Galvanised finish — zinc-plated steel construction provides excellent corrosion resistance, ideal for trailers exposed to rain, coastal air and boat ramp submersion.
- HT 5-Stud stud pattern — 5×120.65 PCD bolt pattern to accept ht 5-stud pattern wheels, one of the most common configurations on Australian trailers.
- SLM Slimline (Ford) bearings pre-fitted — hub comes with bearings, seals and dust cap already installed. Simply bolt on and grease — no bearing pressing or seal fitting required.
- Lazy hub design — the hub rotates on the axle stub via the bearings while the axle remains fixed. Standard design for unbraked trailer axles up to 750kg per hub.
- Australian distributed by ASTSS — All States Trailer Spares is a family-owned Australian distributor with over 2,500 trailer parts in their range.
When to Use This Hub
Choose the R1908TG when you need a galvanised lazy hub with ht 5-stud stud pattern and SLM Slimline (Ford) bearings. Before ordering, confirm your stud pattern by measuring the PCD (pitch circle diameter) of your existing hub or wheels. You also need to match the bearing type — check your existing bearings or measure the stud diameter (11mm = Holden/LM, 12.4mm = Ford/SLM).
Authorised Australian Dealer — This product is sourced directly from Allstate Tooling Solutions Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Stud Pattern | PCD | Bearing Type |
|---|---|---|---|
| R1907FG | Ford 5-Stud | 5×114.3 | LM (Holden) |
| R1907TG | HT 5-Stud | 5×120.65 | LM (Holden) |
| R1908FG | Ford 5-Stud | 5×114.3 | SLM Slimline |
| R1908TG ★ | HT 5-Stud | 5×120.65 | SLM Slimline |
| R1909B | Land Cruiser 6-Stud | 6×139.7 | LM (Holden) |
| R1909C | Land Cruiser 6-Stud | 6×139.7 | SLM Slimline |
★ You are viewing the highlighted variant. Other hub configurations are also available.
