Description
Allstate Trailer Spares R5205 — trailer shackle pin x 3. available at Alltools Geelong. Shop our full trailer shackle pin x 3. range in Geelong.
Allstate Trailer Spares

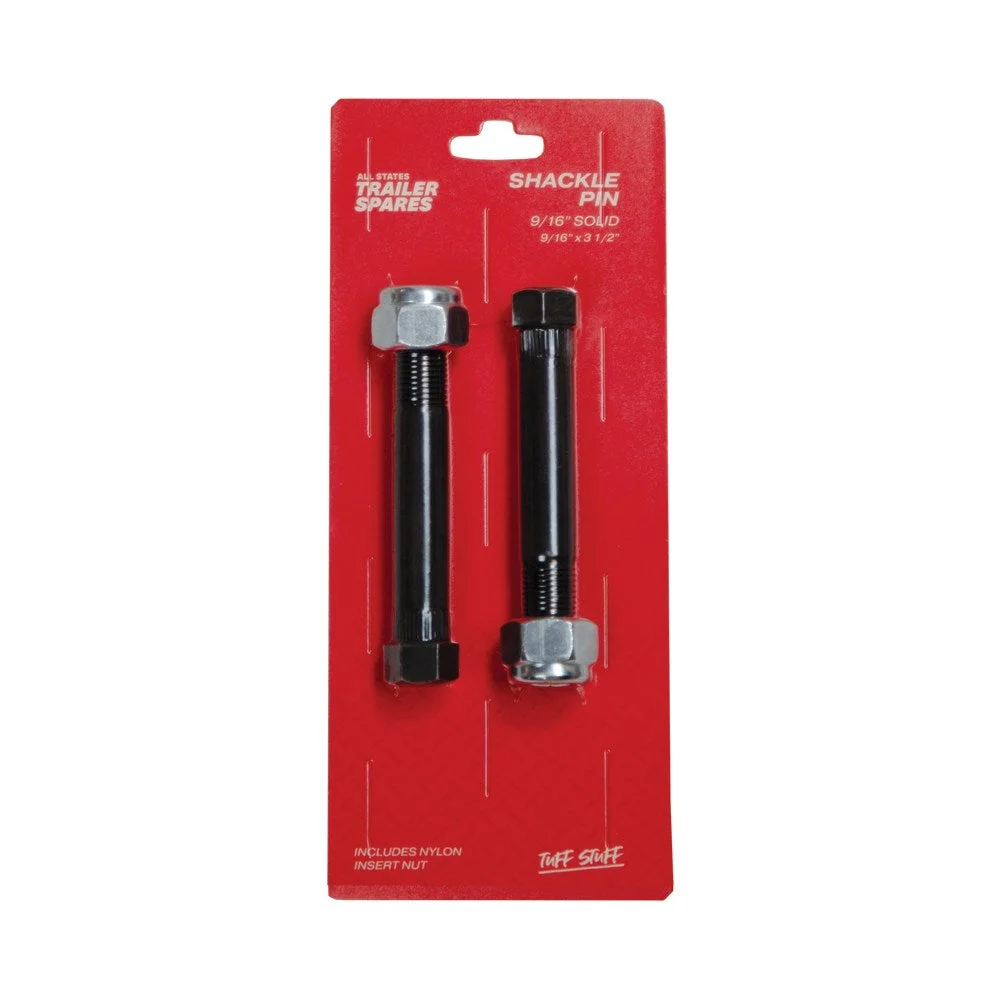

Trailer Shackle Pin 9/16″ x 3.5″ Solid UNF
Part No: R5205 | Barcode: 9343965000526 | Series: ASTSS Fasteners
Solid high tensile shackle pin for trailer leaf spring suspension. 9/16″ x 3.5″ diameter with UNF thread, designed to connect leaf spring eyes to shackle plates on Australian trailers.
9/16″ x 3.5″
UNF Thread
Solid
High Tensile
Suitable For
Leaf Spring Trailers
Shackle Plates
Box Trailers
Boat Trailers
Key Features & Benefits
- Solid design — solid pin for applications where grease is applied externally during service intervals.
- 9/16″ x 3.5″ diameter — matches standard Australian trailer shackle plates with 1/2″ bolt holes. The UNF thread ensures compatibility with standard nyloc nuts.
- High tensile steel — manufactured from high tensile steel to withstand the constant pivoting loads that shackle pins endure during towing over rough roads.
- Includes nyloc nut — self-locking nyloc nut prevents the pin from backing out under vibration, maintaining a secure connection.
When to Use This Pin
Use the R5205 solid shackle pin when replacing worn pins on trailers that are serviced regularly and where external greasing is part of the maintenance routine. If you prefer low-maintenance operation, the R5205A greaseable version allows lubrication via a grease nipple.
Authorised Australian Dealer — This product is sourced directly from Allstate Tooling Solutions Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Size | Thread | Type |
|---|---|---|---|
| R5205 ★ | 9/16″ x 3.5″ | UNF | Solid |
| R5205A | 9/16″ x 3.5″ | UNF | Greaseable |
| R5208 | 5/8″ x 3.5″ | UNF | Greaseable |
★ You are viewing the highlighted variant. Other sizes and types are also available.
