Allstate Trailer Spares

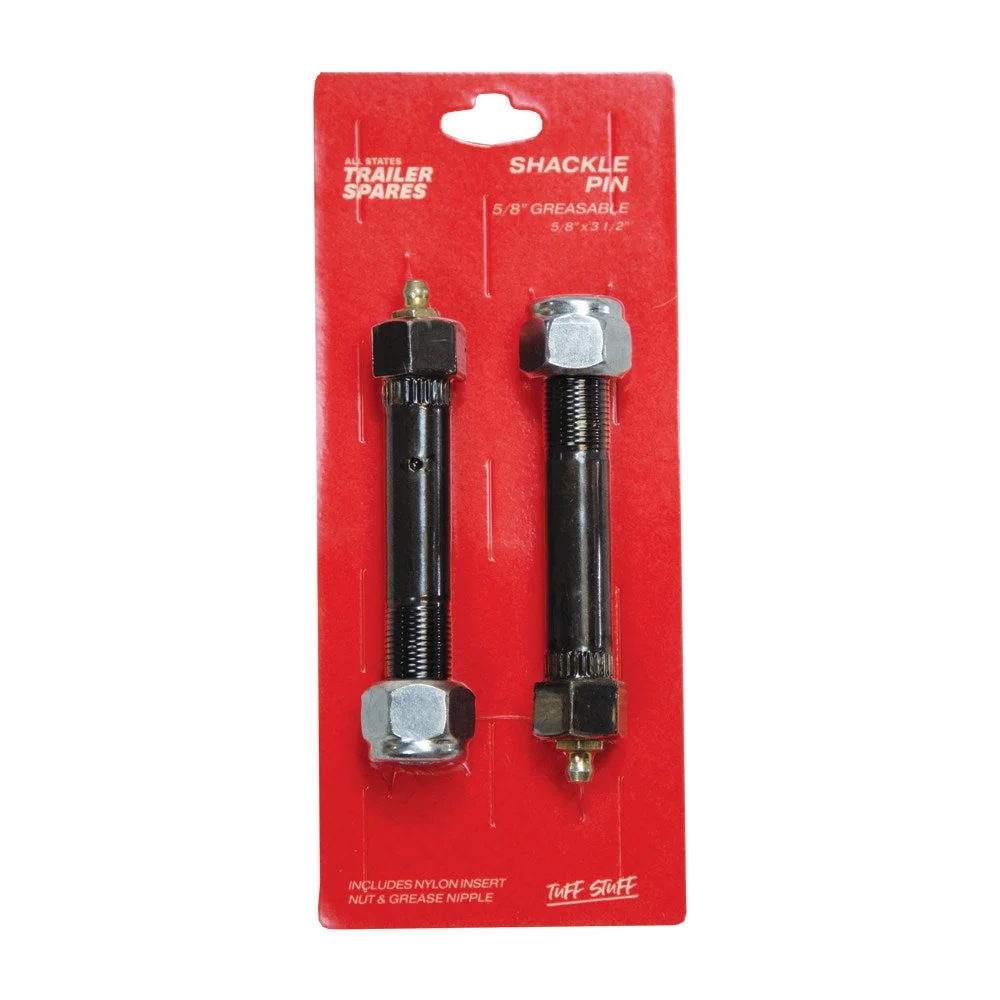

Trailer Shackle Pin 5/8″ x 3.5″ Greaseable UNF
Part No: R5208 | Barcode: 9343965003428 | Series: ASTSS Fasteners
Greaseable high tensile shackle pin for trailer leaf spring suspension. 5/8″ x 3.5″ diameter with UNF thread, designed to connect leaf spring eyes to shackle plates on Australian trailers.
5/8″ x 3.5″
UNF Thread
Greaseable
High Tensile
Suitable For
Leaf Spring Trailers
Shackle Plates
Box Trailers
Boat Trailers
Key Features & Benefits
- Greaseable design — built-in grease nipple allows lubrication of the shackle pivot point without disassembly, reducing wear and extending bushing life.
- 5/8″ x 3.5″ diameter — matches standard Australian trailer shackle plates with 9/16″ bolt holes. The UNF thread ensures compatibility with standard nyloc nuts.
- High tensile steel — manufactured from high tensile steel to withstand the constant pivoting loads that shackle pins endure during towing over rough roads.
- Includes nyloc nut — self-locking nyloc nut prevents the pin from backing out under vibration, maintaining a secure connection.
When to Use This Pin
Use the R5208 for trailers with 5/8″ shackle bolt holes. This is the larger diameter pin for heavier-duty springs. The grease nipple allows lubrication without disassembly.
Authorised Australian Dealer — This product is sourced directly from Allstate Tooling Solutions Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Size | Thread | Type |
|---|---|---|---|
| R5205 | 9/16″ x 3.5″ | UNF | Solid |
| R5205A | 9/16″ x 3.5″ | UNF | Greaseable |
| R5208 ★ | 5/8″ x 3.5″ | UNF | Greaseable |
★ You are viewing the highlighted variant. Other sizes and types are also available.
