Description
Recoil

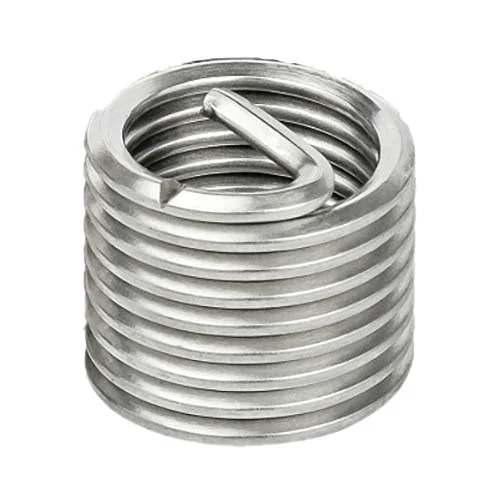

Recoil Thread Insert — M16 × 2
Part No: RC25163 | Barcode: 20317251636 | Thread: M16 × 2
Recoil M16 × 2 thread inserts are pre-wound 304 stainless steel wire coils that rebuild M16 × 2 threads to original specification. Use them to refill a Recoil M16 × 2 repair kit or to reinforce M16 × 2 threads in soft alloys during production.
Recoil RC25163 — Thread Insert M16x2 available at Alltools Geelong. Shop our full Thread Insert M16x2 range in Geelong.
M16 × 2
Metric Coarse
304 Stainless Steel
Diamond-Section Wire
Helically Coiled
Kit-Compatible
Suitable For
Aluminium
Cast Iron
Magnesium
Mild and Alloy Steel
Key Features & Benefits
- 304 stainless steel coil — diamond-section wire springs out against the tapped thread to lock in place and resist pull-out and corrosion.
- Restores M16 × 2 to standard — re-forms the hole to the original M16 × 2 bolt size for a stronger-than-original thread.
- Refill or production use — ideal as replacement inserts for the matching Recoil kit, or for reinforcing threads in soft castings.
- Permanent reinforcement — spreads fastener load over a wider area, increasing thread life in high-vibration assemblies.
When to Use This Insert
Choose the Recoil RC25163 insert in M16 × 2 when you already own the matching Recoil tap and installation tool and simply need additional inserts, or when reinforcing M16 × 2 threads in aluminium and other soft materials. Match the insert thread size and pitch to your fastener using the table below.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Recoil Australia, with local support and service.
Product Specifications
| Part No. | Thread Size | Thread Form |
|---|---|---|
| RC25053 | M5 × 0.8 | Metric Coarse |
| RC25063 | M6 × 1 | Metric Coarse |
| RC25083 | M8 × 1.25 | Metric Coarse |
| RC28103 | M10 × 1 | Metric Fine |
| RC27103 | M10 × 1.25 | Metric Fine |
| RC25104 | M10 × 1.5 | Metric Coarse |
| RC28123 | M12 × 1.25 | Metric Fine |
| RC25123 | M12 × 1.75 | Metric Coarse |
| RC28140 | M14 × 1.25 | Metric Fine |
| RC28148 | M14 × 1.25 | Metric Fine |
| RC25163 ★ | M16 × 2 | Metric Coarse |
| RC23043 | 1/4″-20 UNC | UNC |
| RC24043 | 1/4″-28 UNF | UNF |
| RC23053 | 5/16″-18 UNC | UNC |
| RC24053 | 5/16″-24 UNF | UNF |
| RC23063 | 3/8″-16 UNC | UNC |
| RC24063 | 3/8″-24 UNF | UNF |
| RC23073 | 7/16″-14 UNC | UNC |
| RC24083 | 1/2″-20 UNF | UNF |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
