S227A Pneumatic Planishing Hammer

$352.00

METALMASTER PPH-51 Pneumatic Planishing Hammer (1.2mm Mild Steel Capacity 500mm Throat Depth). The PPH-51 Planishing Hammer has been long used in metal fabrication and restoration to smooth large areas of metal after it has been roughly shaped with a hammer and sand bag. Common uses are for custom motorcycle gas…

Available to Order — Collect in Geelong (typically 2–7 business days)

Special Order

Extended Range — Special Order. Sourced from Hare & Forbes and delivered to our Geelong store free of freight.
Collect in store, typically 2–7 business days (subject to Hare & Forbes stock and dispatch warehouse).

Big machine? We unload it with our forklift and load it straight onto your ute or trailer at our Geelong store — no residential-delivery problems.

Shipping & returns info
Barcode: 9344195007033Brand: HAFCOGTIN: 9344195007033 Categories: ,

Description

METALMASTER

Pneumatic Planishing Hammer — PPH-51, 1.2mm Mild Steel Capacity 500mm Throat Depth

Part No: S227A  |  Barcode: 9344195007033  |  Model: PPH-51

METALMASTER PPH-51 Pneumatic Planishing Hammer (1.2mm Mild Steel Capacity 500mm Throat Depth). The PPH-51 Planishing Hammer has been long used in metal fabrication and restoration to smooth large areas of metal after it has been roughly shaped with a hammer and sand bag. Common uses are for custom motorcycle gas…

Model PPH-51
1.2mm Mild Steel Capacity
500mm Throat Depth
Mild Steel – Capacity: 1.2 / 18
Throat Depth: 500 mm
Throat Height: 390 mm
Speed – blows per minute: 875 – 1350 BPM

Key Features & Benefits

  • 500mm throat capacity
  • 1.2mm mild steel capacity

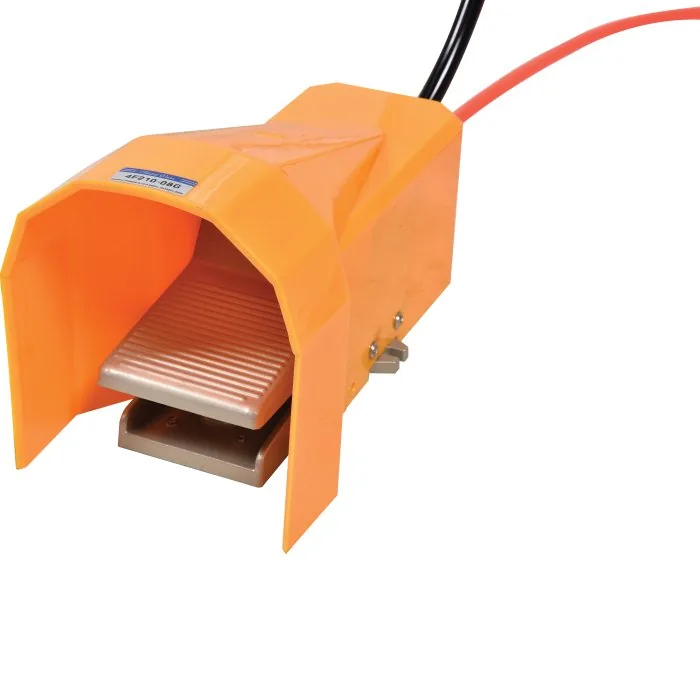

  • Foot pedal operation

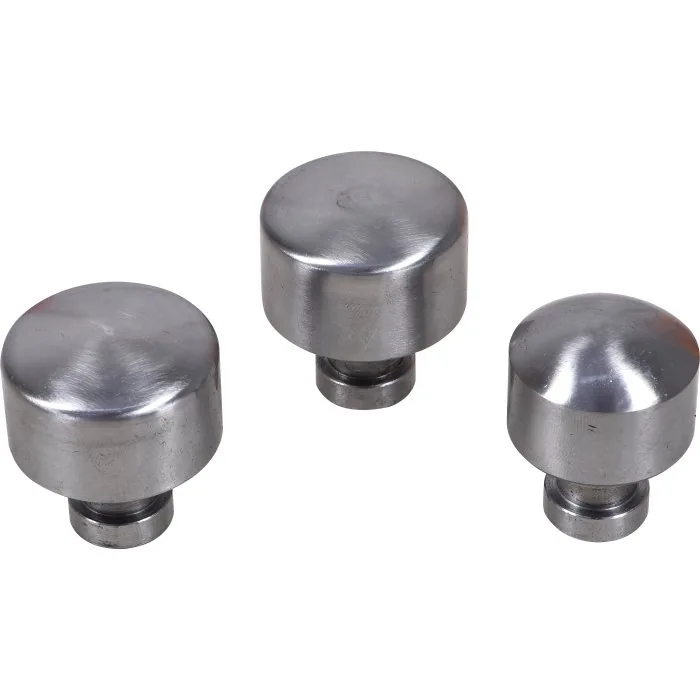

  • Comes with 25, 50, 76mm radius anvils
  • 875-1350 blows/minute
  • 50 – 100PSI pressure
  • 4cfm air consumption
  • Overall height 1220mm
  • The footprint of the machine is 750mm x 350mm

About This Product

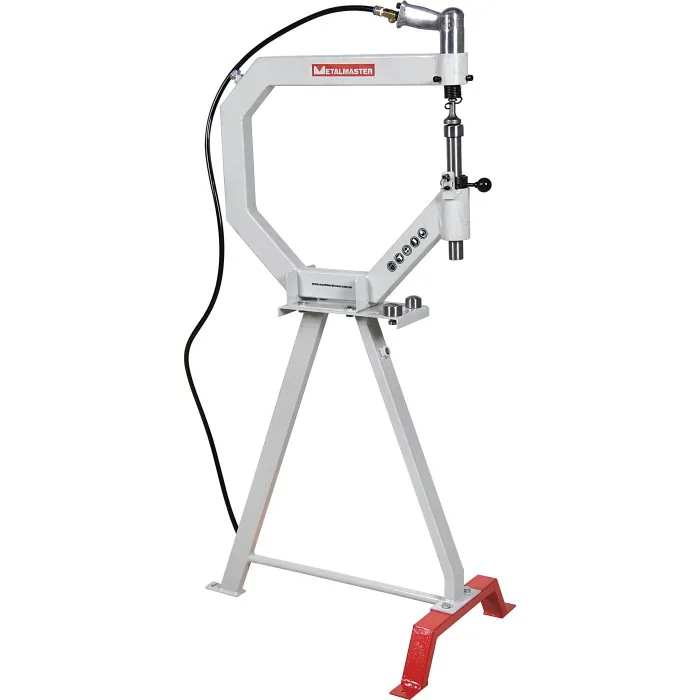

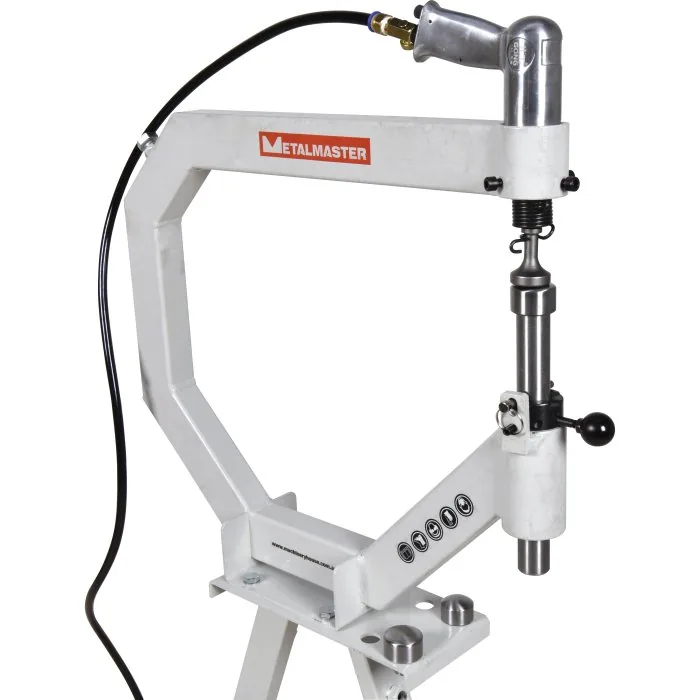

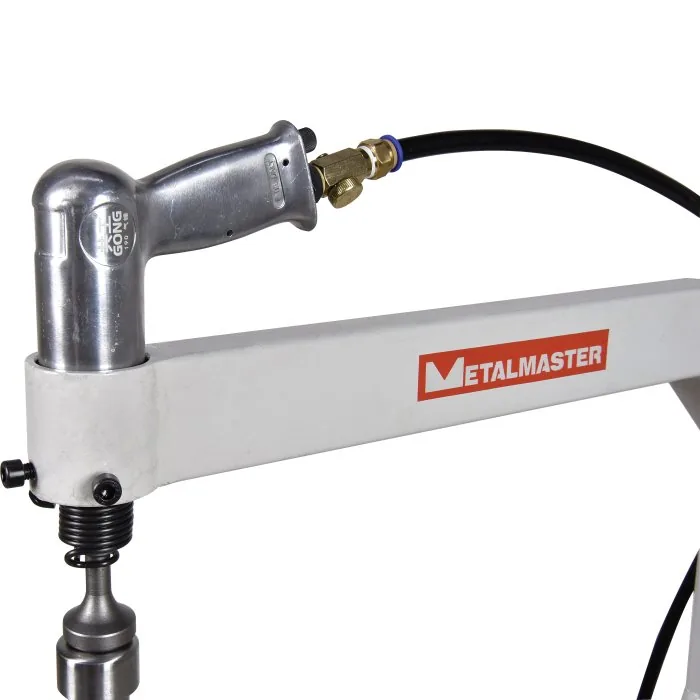

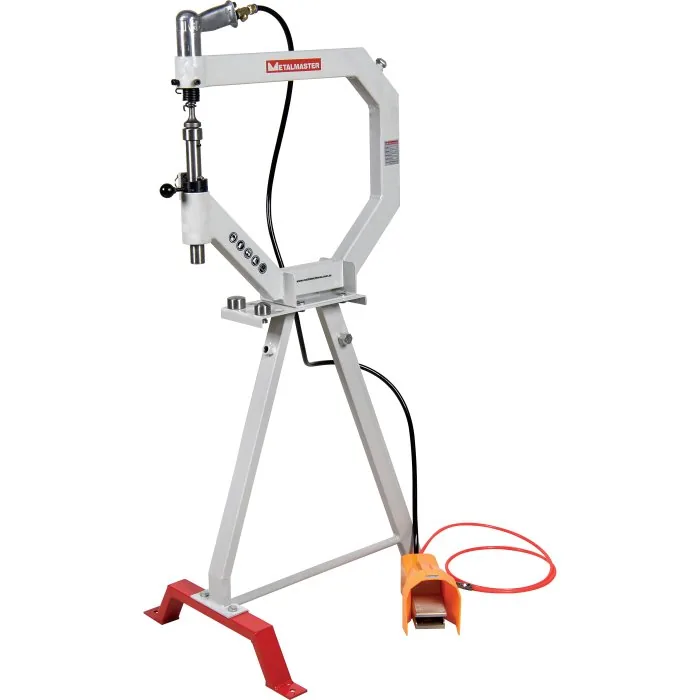

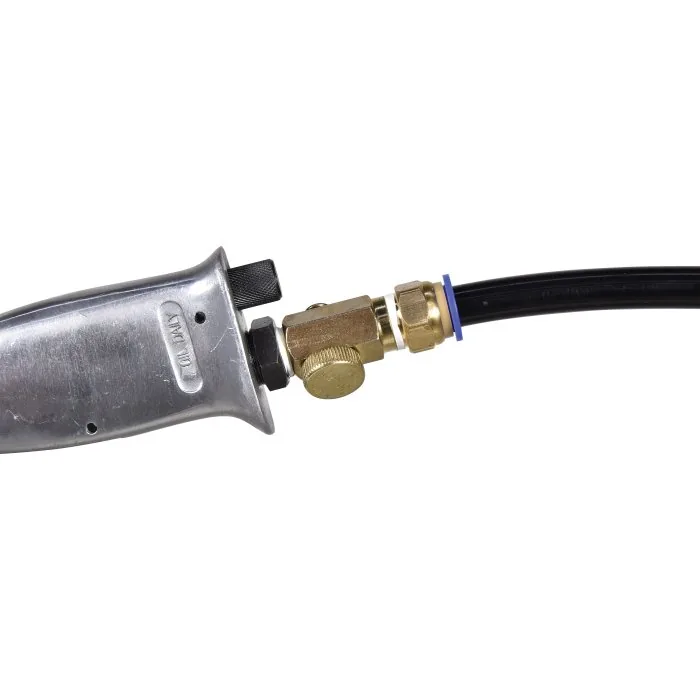

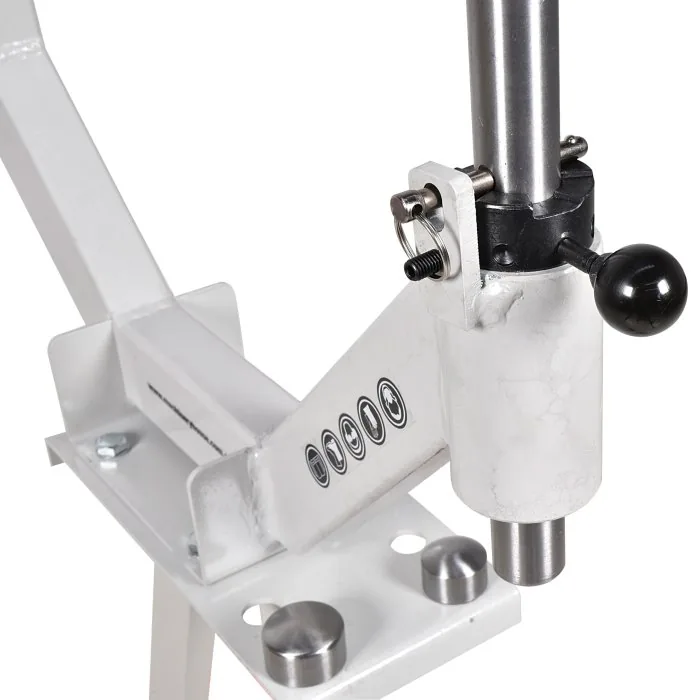

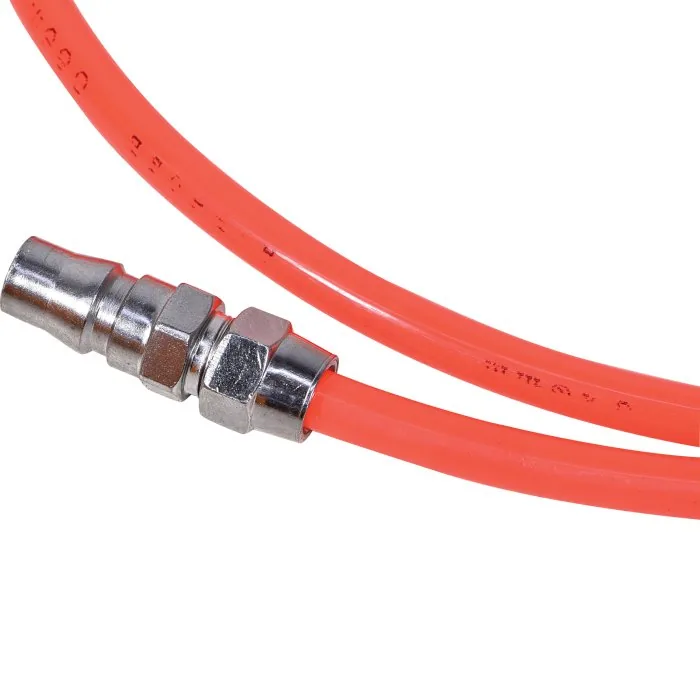

The PPH-51 Planishing Hammer has been long used in metal fabrication and restoration to smooth large areas of metal after it has been roughly shaped with a hammer and sand bag. Common uses are for custom motorcycle gas tank and fender manufacturing, street rod bodies, patch panels for auto restoration, repair and metal sculpting. The power head is a heavy-duty aircraft rivet gun, sturdy steel fabricated frame with 500mm throat depth, is beefy enough to smooth 1.2mm mild steel. A quick release allows the lower shaft to slide down, to accept panels with deep flanges. The power head adjustment controls the intensity from 875-1350 blows per minute. A foot control starts and stops the hammering while being hooked up to compressed air. Includes Ø32mm flat top die, 25, 50 and 76mm radius anvils. The machine weigh’s 25kg and has bolt holes to be easily secured to floor. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S227A) for collection in store.

Product Specifications

Pneumatic Planishing Hammer — Specifications
Specification Detail
Machine (Type) Pneumatic Planishing Hammer
Mild Steel – Capacity (mm / Gauge) 1.2 / 18
Throat Depth (mm) 500
Throat Height (mm) 390

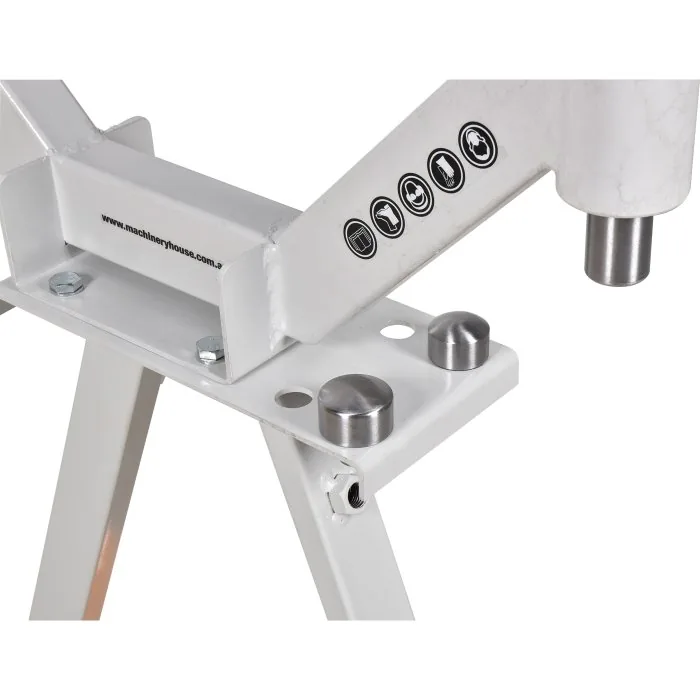

Radius Anvil Sizes (mm) 25, 50, 76
Speed – blows per minute (BPM) 875 – 1350
Air Consumption (CFM) 4
Working Height (mm) 965
Air Pressure (psi) 50-100 PSI Maximum
Machine Dimensions (LxWxH) (mm) 400 x 710 x 1230
Nett Weight (kg) 25
Brand: METALMASTERModel: PPH-51Order Code: S227ABarcode: 9344195007033Availability: Special order — collect in store
