METALMASTER

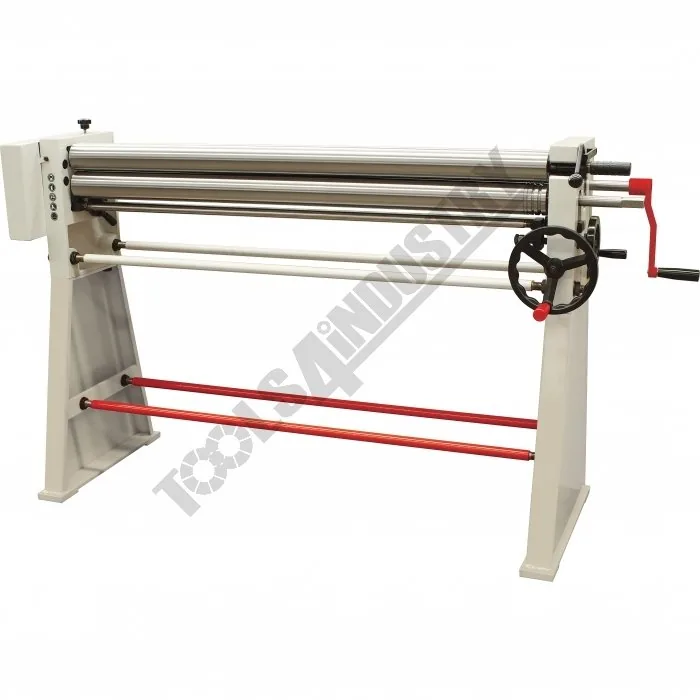

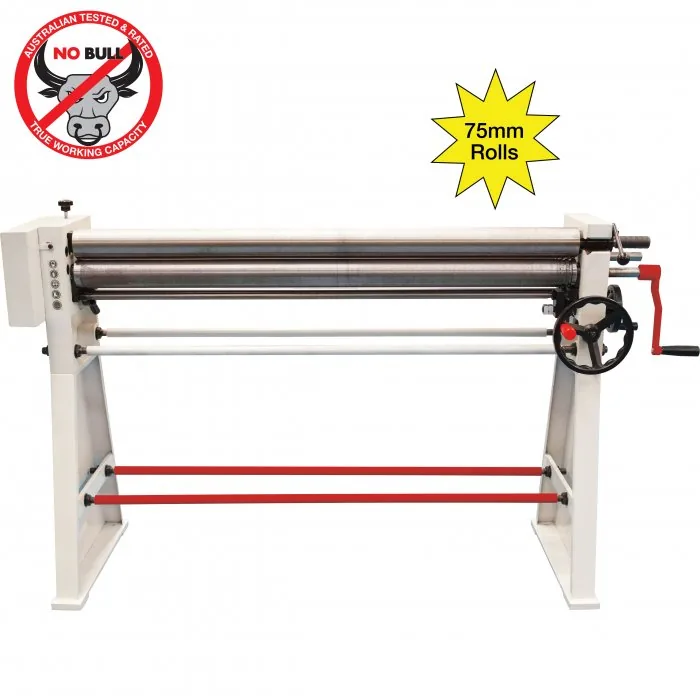

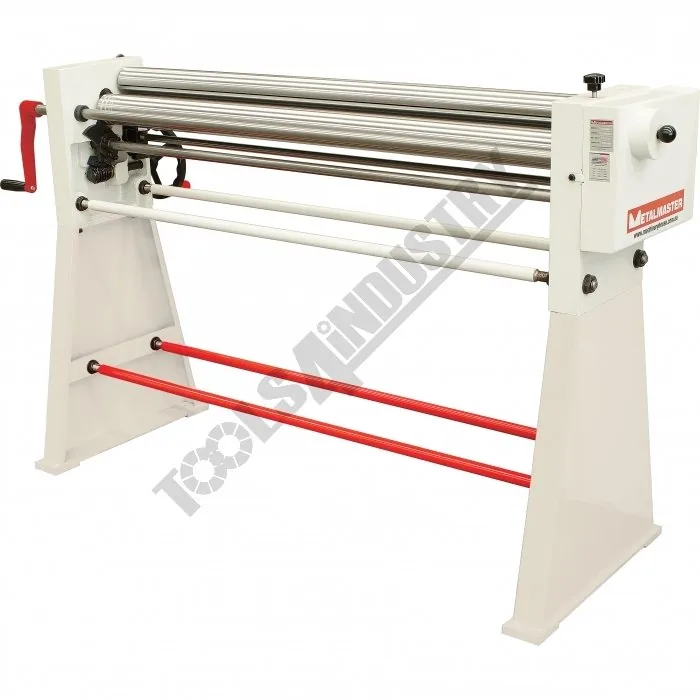

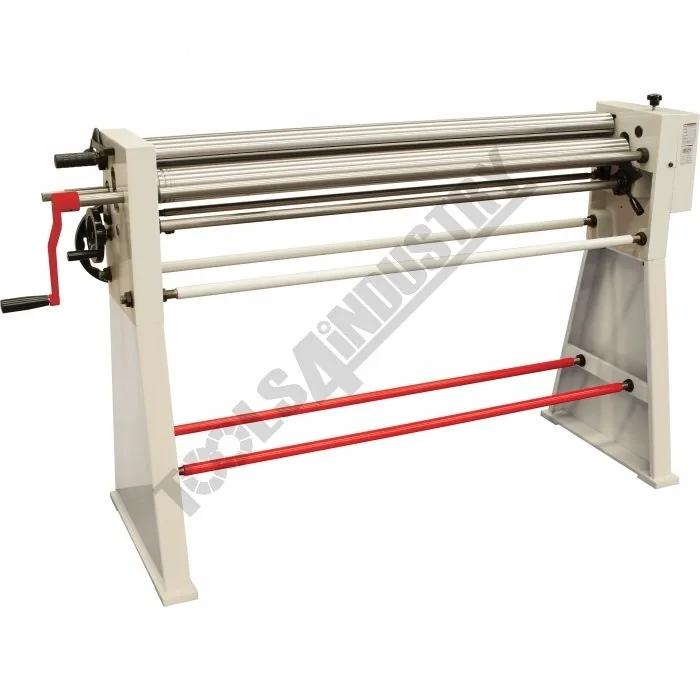

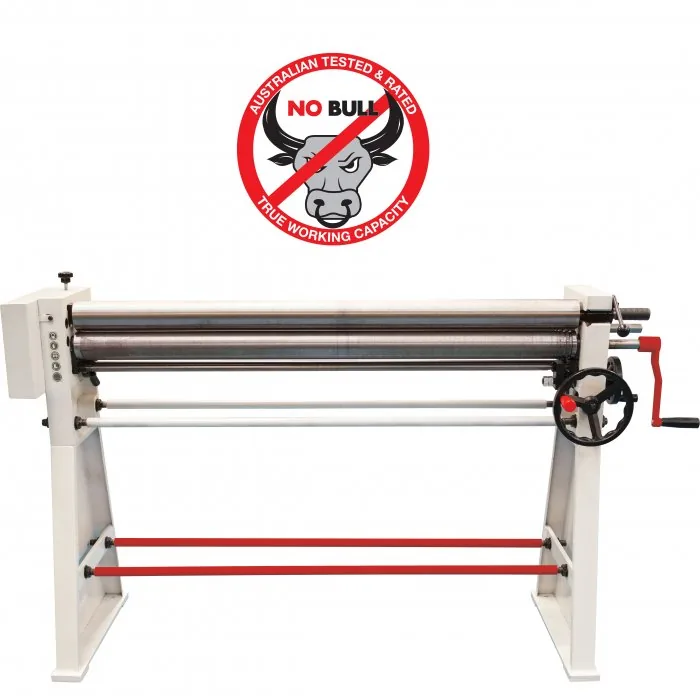

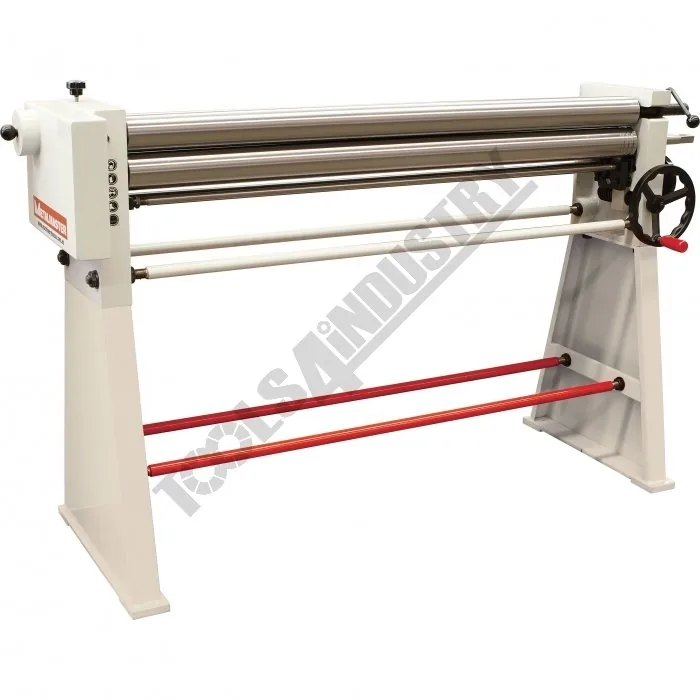

Manual Sheet Metal Curving Rolls — SRG-50E, 1250 x 1.6mm Mild Steel Capacity 2 Speed Roller Drive System, 3.5:1 & 1:1, Includes Wiring Grooves & Quick Action Swivel Out Top Roller
Part No: S276 | Barcode: 9344195128554 | Model: SRG-50E
METALMASTER SRG-50E Manual Sheet Metal Curving Rolls (1250 x 1.6mm Mild Steel Capacity 2 Speed Roller Drive System, 3.5:1 & 1:1, Includes Wiring Grooves & Quick Action Swivel Out Top Roller). The SRG-50E sheet metal curving rolls are engineered for precision and ease of use. A single handwheel adjusts both sides of…
Model SRG-50E
1250 x 1.6mm Mild Steel Capacity
Capacity – Mild Steel: 1.6 mm
Key Features & Benefits

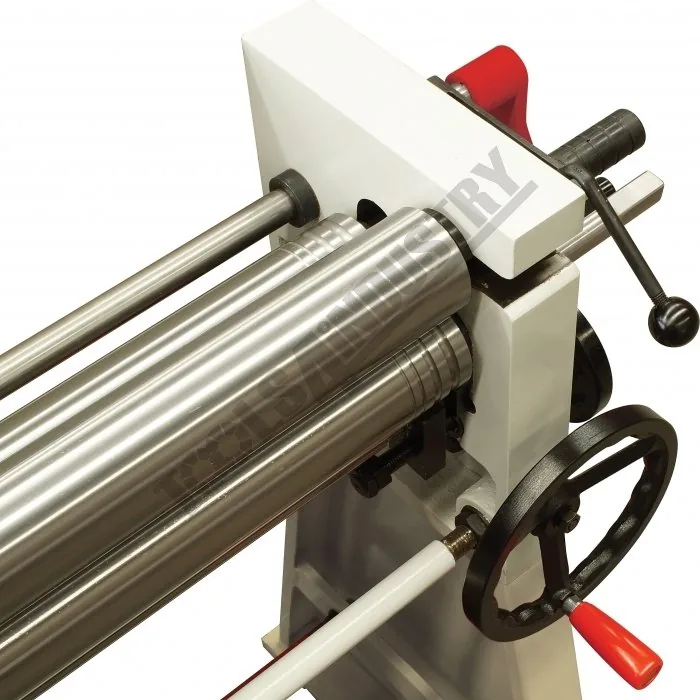

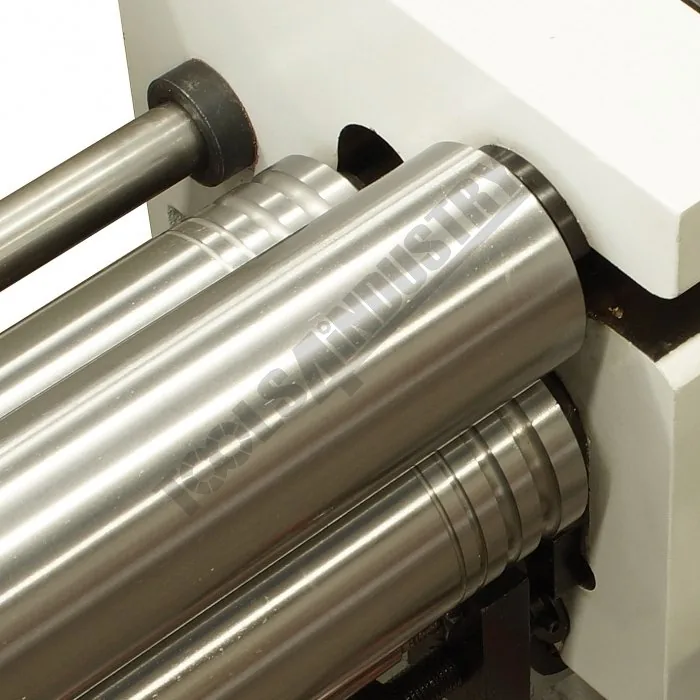

- 75mm Ground rolls with wiring grooves

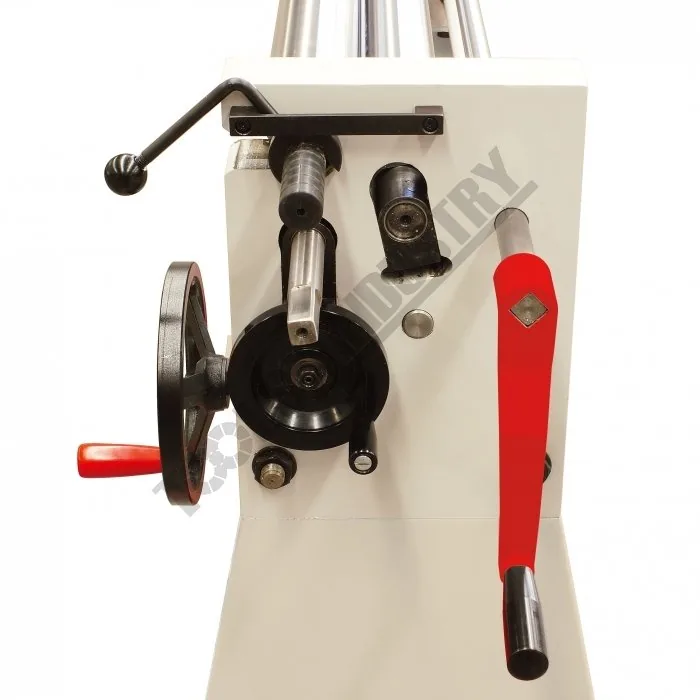

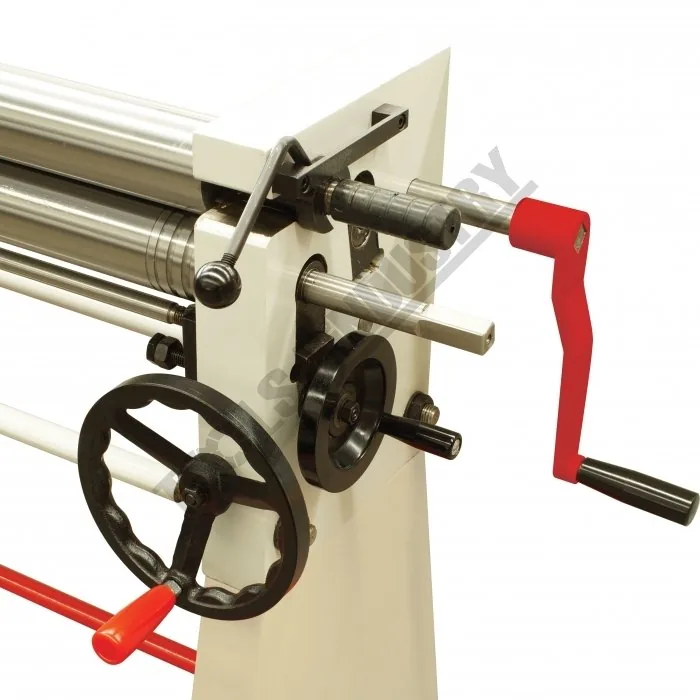

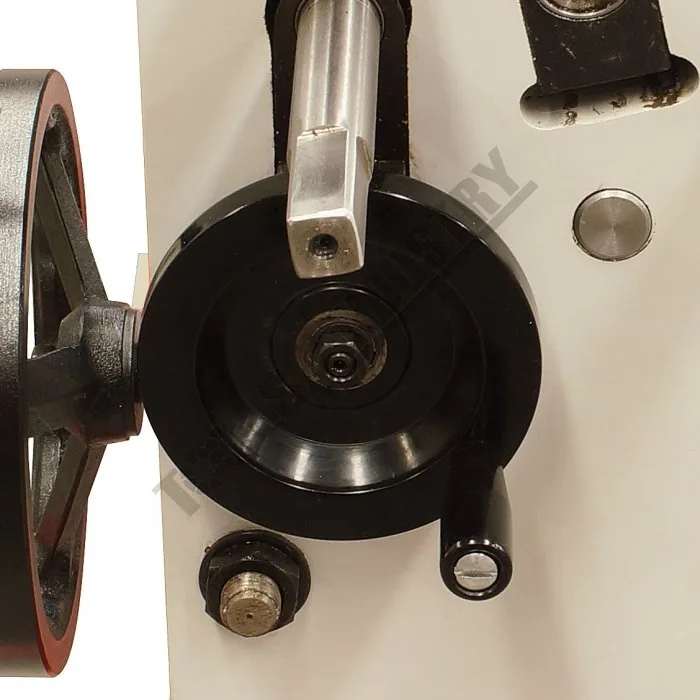

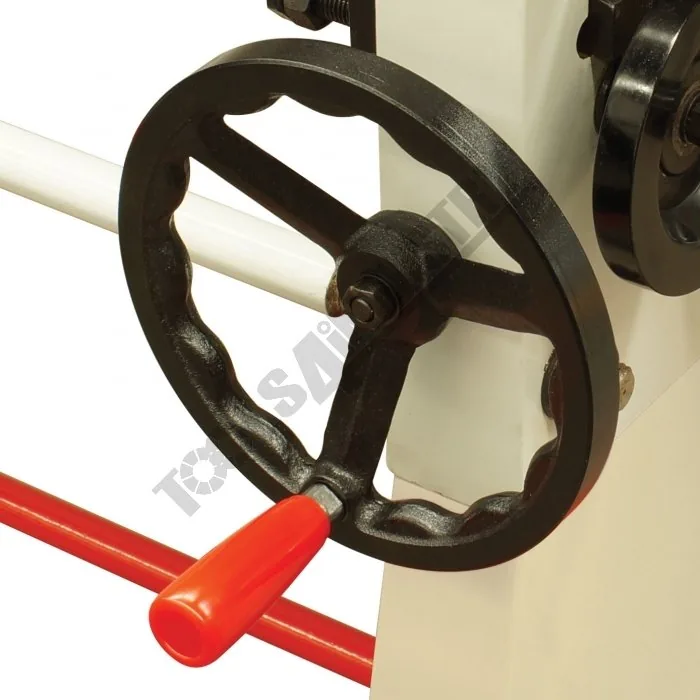

- Single hand wheel adjustment via European design wedge system for material thickness

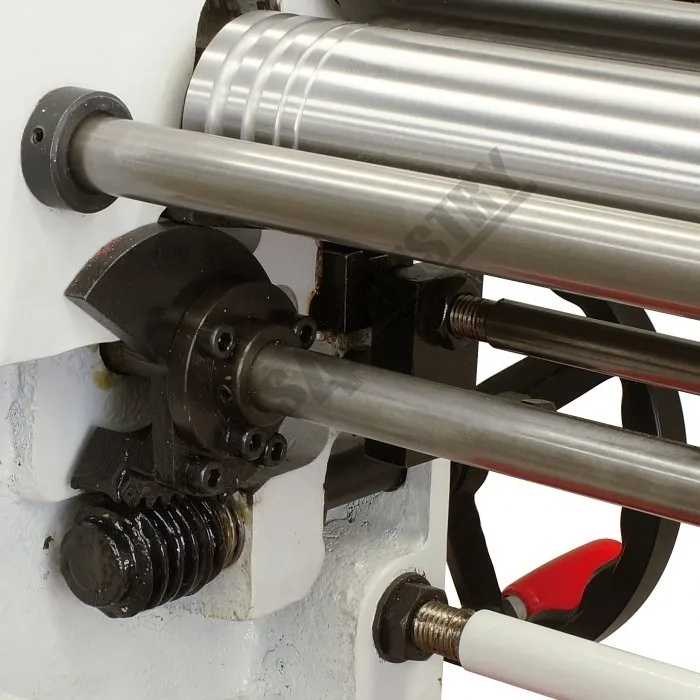

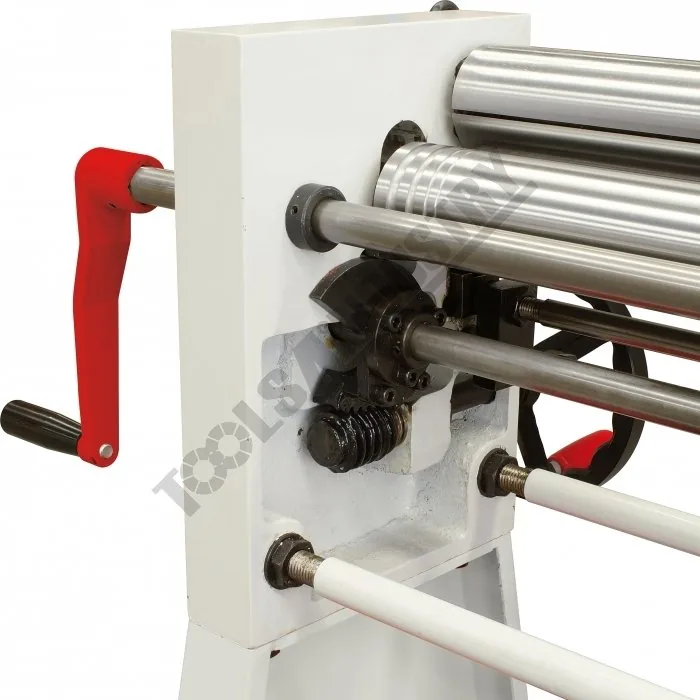

- Single hand wheel adjustment for rear curving roller with cam action worm gear

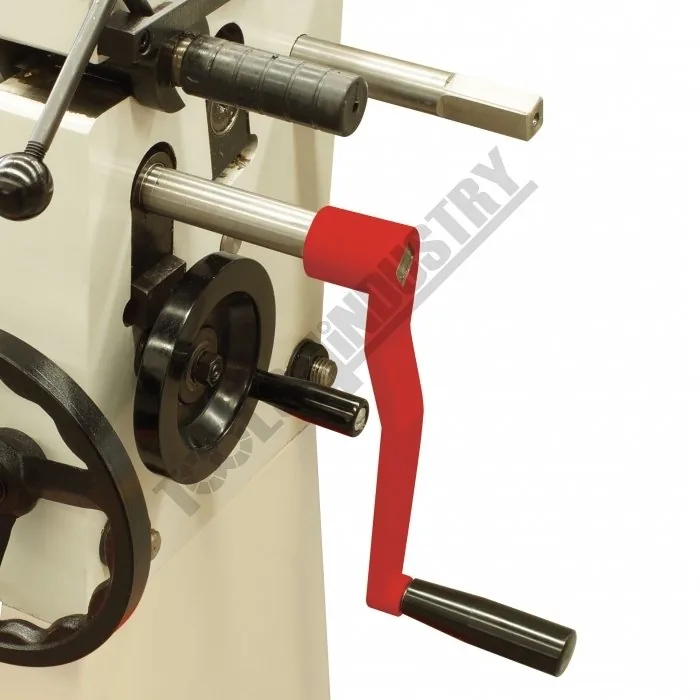

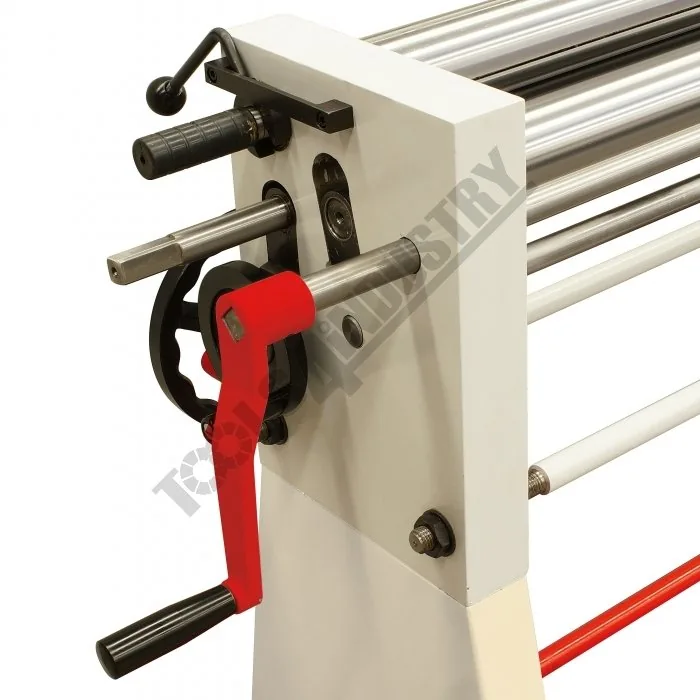

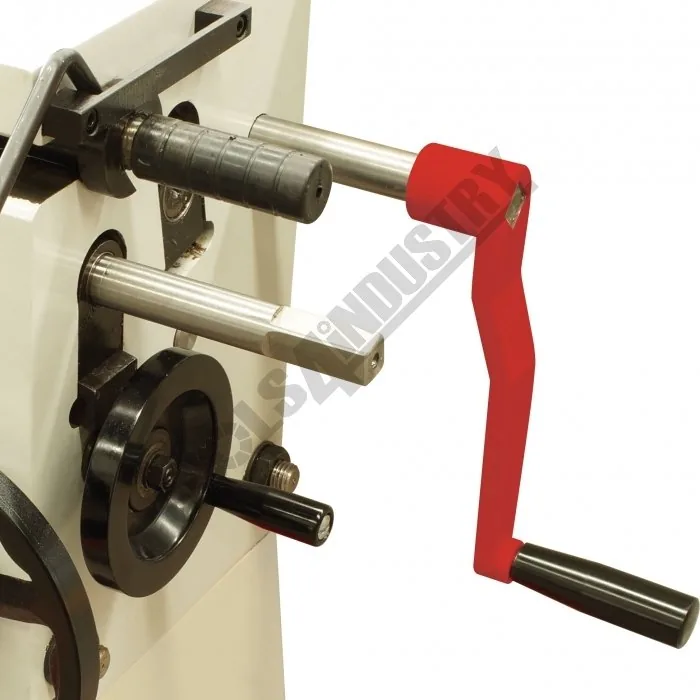

- 2 speed roller drive system, 3.5:1 & 1:1 ratio

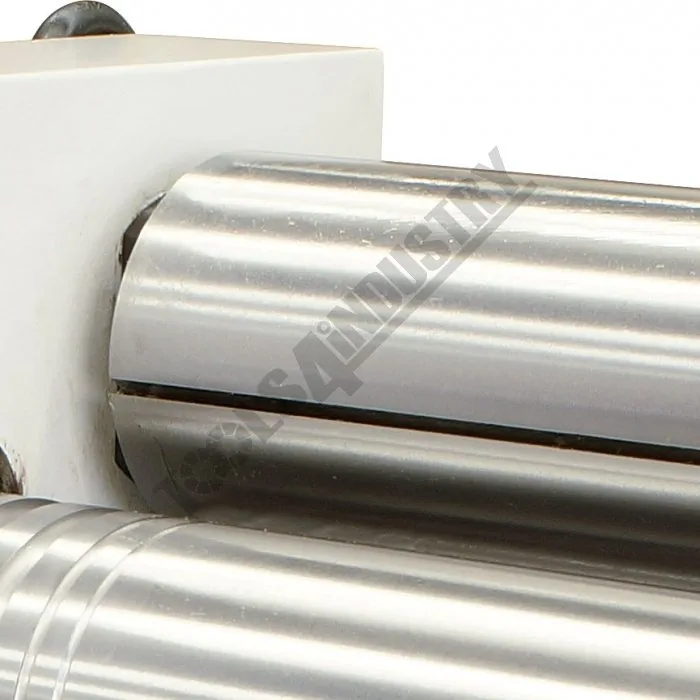

- Machined slit 10mm deep in top roller
- Cast-iron construction

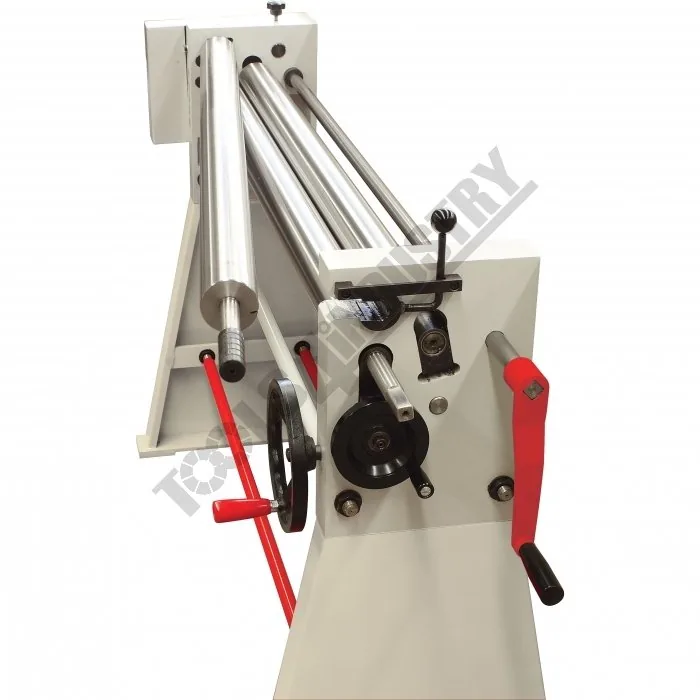

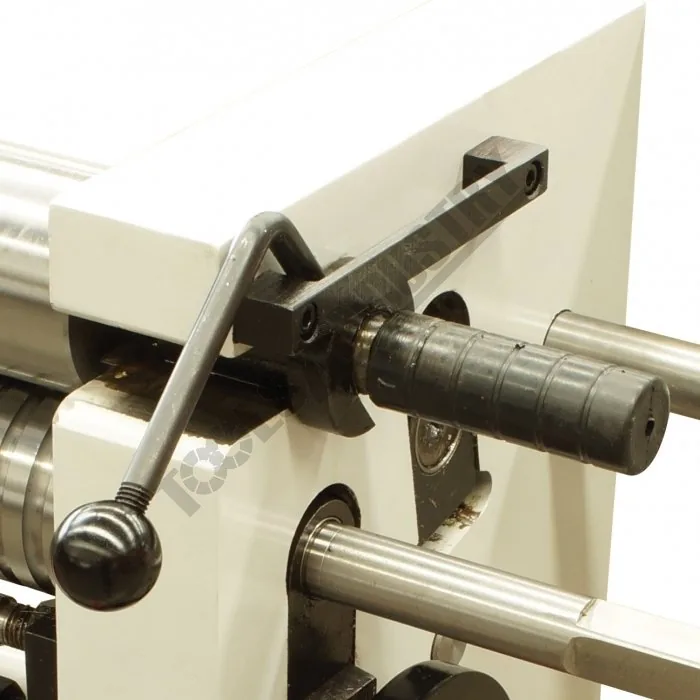

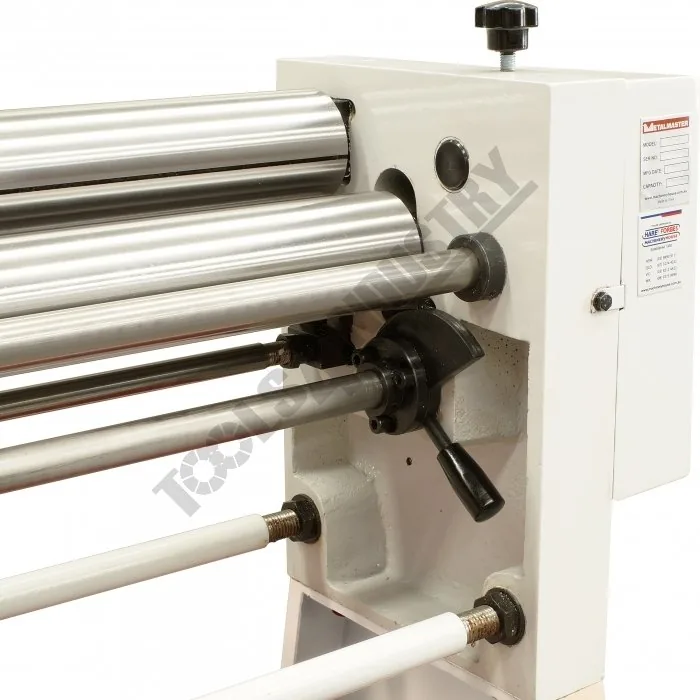

- Quick action swivel top roller
- Includes heavy duty stand
- Mild steel capacity is rated on hot rolled material with 250MPA
About This Product
The SRG-50E sheet metal curving rolls are engineered for precision and ease of use. A single handwheel adjusts both sides of the rollers simultaneously through a wedge-type system, enabling effortless clamping for varying material thicknesses. Additionally, another handwheel controls the rear curving roll using a worm gear and lever cam mechanism, simplifying the process of curving sheet metal. This machine features a dual-speed roller drive system. The 3.5:1 ratio is ideal for full-length materials up to 1250 x 1.6mm, minimizing physical effort during forming, while the 1:1 ratio is suited for thinner materials to enhance production speed. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S276) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Useful Length (mm) | 1250 |
| Capacity – Mild Steel (mm) | 1.6 |
| Minimum Rolling Diameter (mm) | 130 |
| Roll Diameter (mm) | 75 |
| Includes Stand (No / Yes) | Yes |
| Nett Weight (kg) | 260 |
