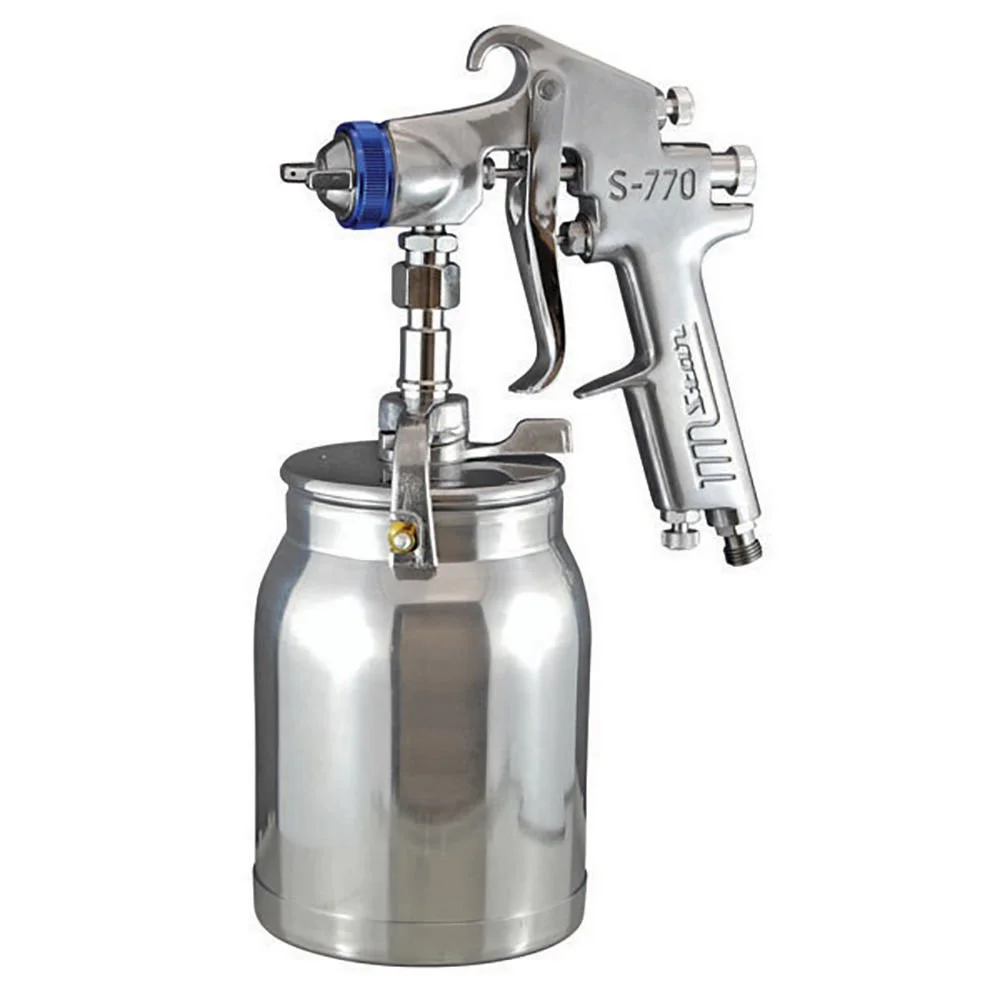

Star S770-51S Suction Feed Spray Gun — 3.0mm Nozzle, 1L Pot
Part No: S770-51S | Barcode: 9328042017901
The Star S770-51S is a suction-feed spray gun with a 3.0mm stainless steel nozzle and 1-litre pot, made for spraying heavy-bodied materials such as putty, primer, glue, underbody black and structural steel paint. The large-bore nozzle passes thick coatings that would clog a finer gun, and it handles acrylic, 2-pack, water-based materials and solvents.
3.0mm Nozzle
1L Suction Pot
50-70 PSI
11 CFM
285mm Pattern
Stainless Nozzle & Needle
Suitable For
Spray Putty
Primer & Filler
Underbody Coatings
Structural Steel Paint
Glues & Adhesives
Key Features & Benefits
- 3.0mm stainless steel nozzle — large orifice sprays high-build putties and primers without clogging, where a standard 1.4-1.8mm topcoat gun would block.
- Suction-feed 1L pot — gravity-independent pickup lets you work at any angle and refill quickly on long jobs.
- 285mm spray pattern — wide fan lays down more coverage per pass, cutting the number of passes on panels and structural steel.
- Stainless nozzle and needle — resists corrosion from water-based and solvent materials for a longer service life.
- Broad material compatibility — sprays acrylic, 2-pack, water-based coatings and solvents from one gun.
When to Use This Spray Gun
Reach for the S770-51S when you need to spray thick, high-build materials — putty, primer, underbody deadener or heavy industrial paint — rather than fine topcoats. The 3.0mm nozzle and suction pot suit panel shops, fabrication and structural steel work. For fine finish topcoats, choose a smaller 1.4-1.8mm gun instead.
Pro Tip: Keep inlet pressure in the 50-70 PSI band — over-pressuring a 3.0mm suction gun atomises too fine for high-build material and causes dry spray and overspray. Thin putty only as far as the data sheet allows to keep the wide fan even.
Product Specifications
| Part No. | Nozzle | Pot | Feed |
|---|---|---|---|
| S770-31S | 2.0mm | 1L | Suction |
| S770-51S ★ | 3.0mm | 1L | Suction |
Browse our wide range of air tools & accessories at Alltools Geelong.
