HAFCO-METALMASTER

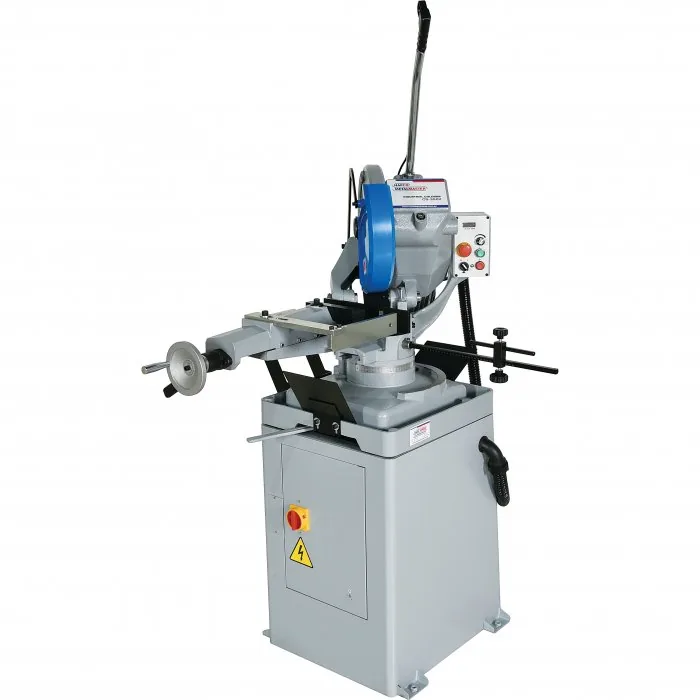

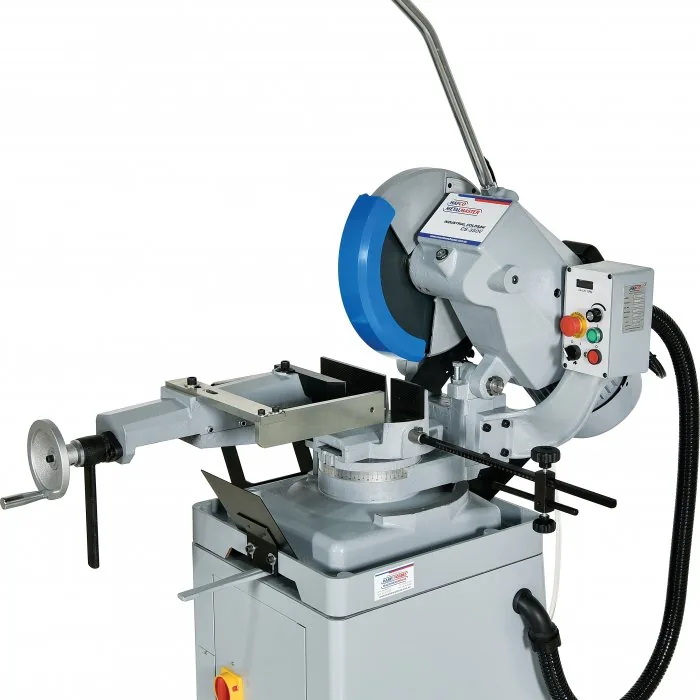

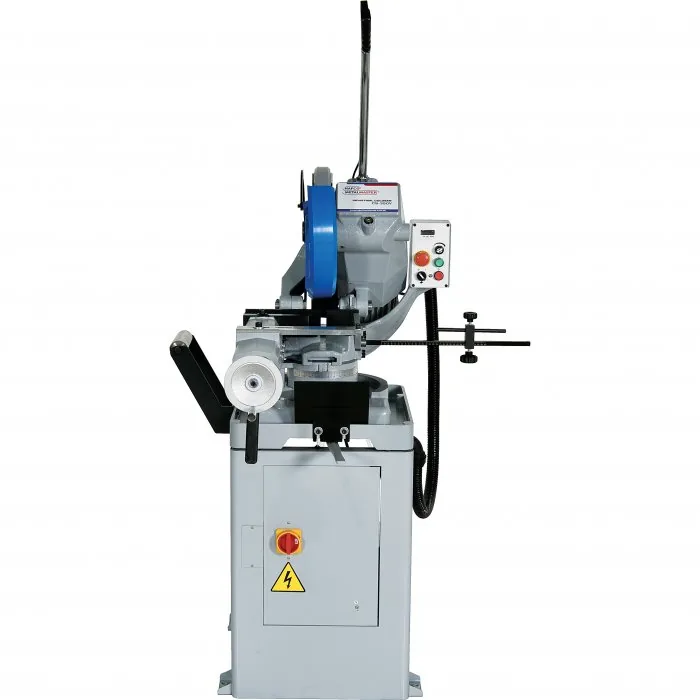

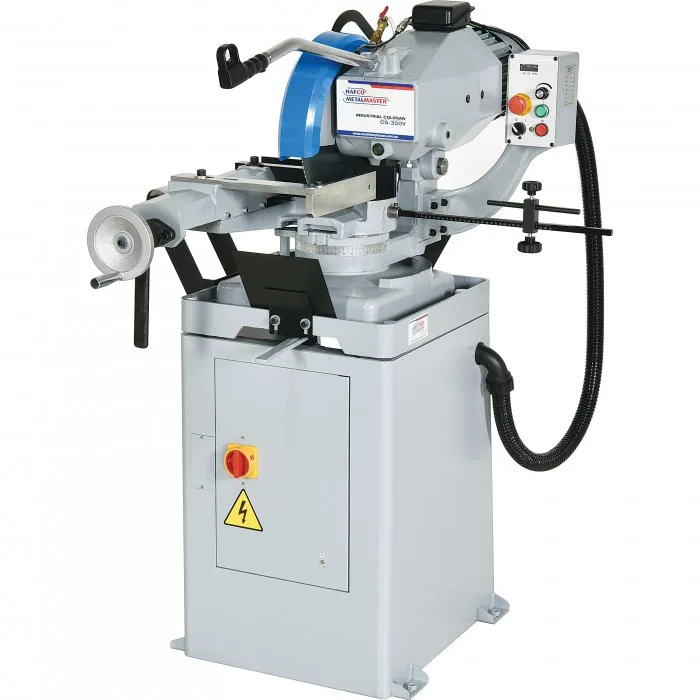

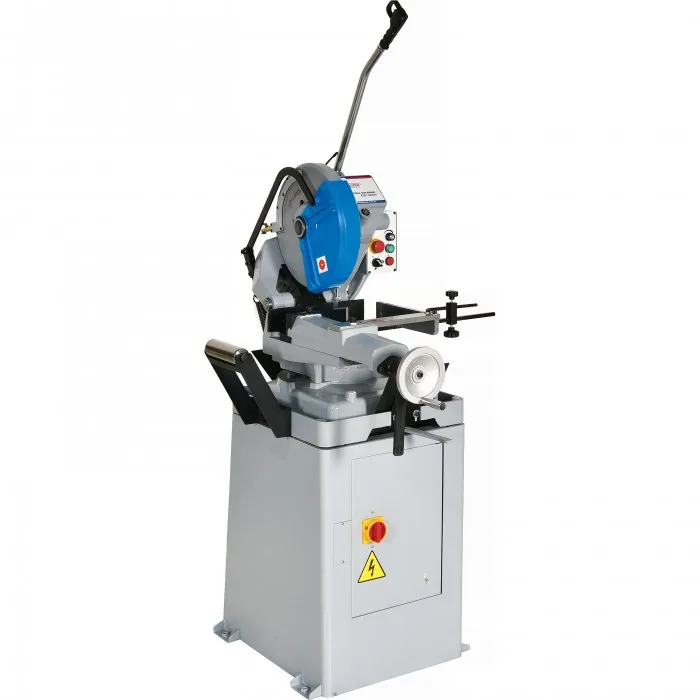

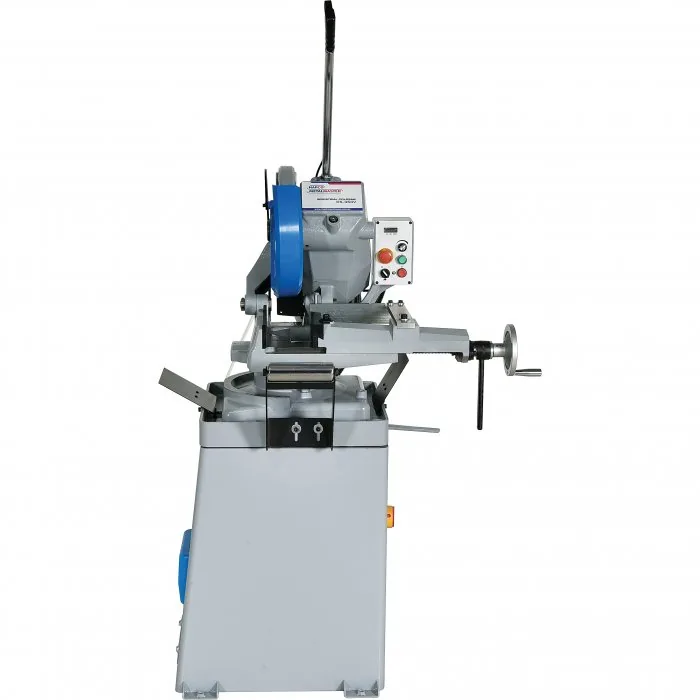

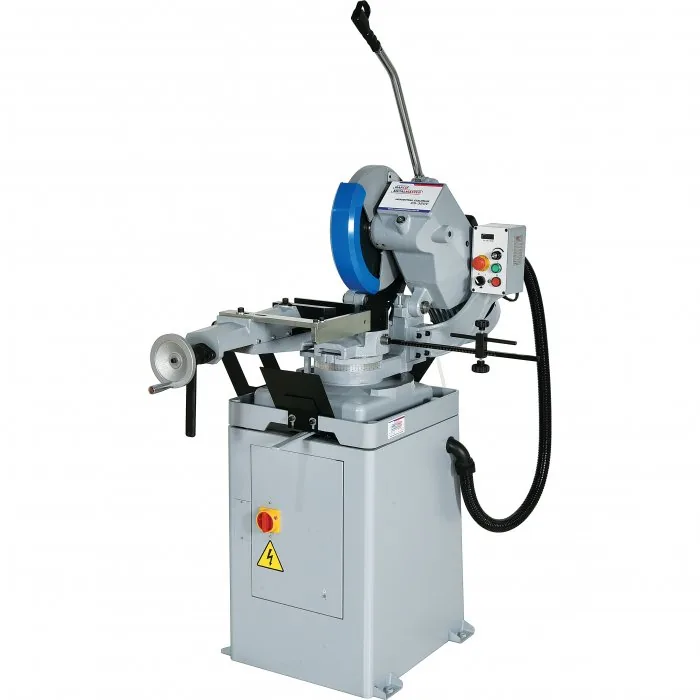

Cold Saw, Includes Stand — CS-350V, 160 x 90mm Rectangle Capacity Ø350mm Blade, Variable Blade Speed 24~120rpm
Part No: S829 | Barcode: 9344195022487 | Model: CS-350V
HAFCO-METALMASTER CS-350V Cold Saw, Includes Stand (160 x 90mm Rectangle Capacity Ø350mm Blade, Variable Blade Speed 24~120rpm). The latest 240 volt Hafco MetalMaster manual cold saw consists of a 350mm circular saw blade that can run at 24 to 120rpm via a electronic variable blade speed control and also…
Model CS-350V
160 x 90mm Rectangle Capacity
Round Capacity @ 90º / 45º: 120 / 100 mm
Square Capacity @ 90º / 45º: 105 / 85 mm
Blade Speed: Variable 24120 rpm
Motor Power: 2.2 / 3
Voltage / Amperage: 240 / 20
Key Features & Benefits

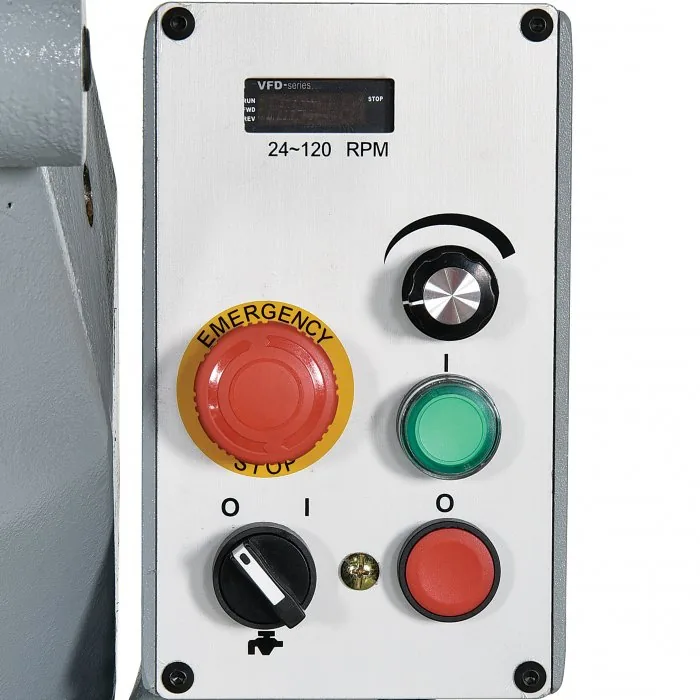

- Electronic variable speed 24~120rpm
- 2.2kW / 3hp 240V heavy duty motor
- Rugged cast iron construction offers years of accurate cutting
- Lock at any angle between -45° or +45° mitre in both directions via locking lever

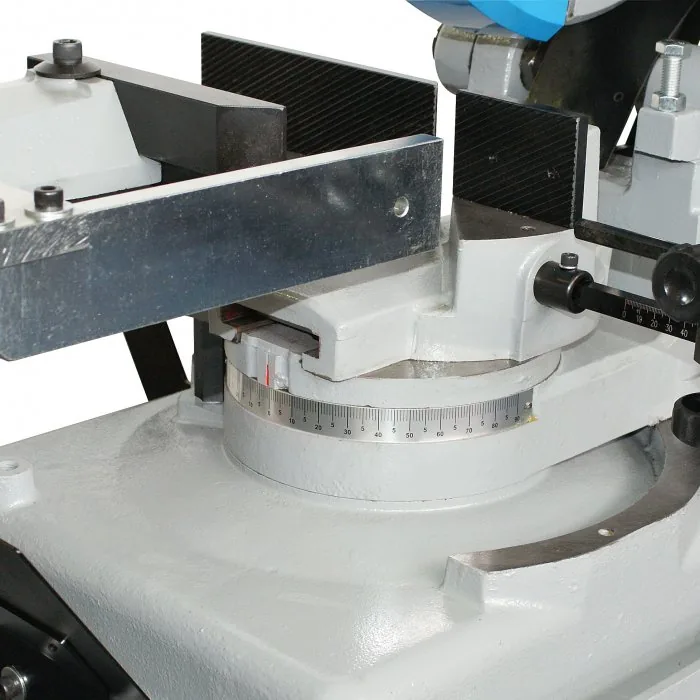

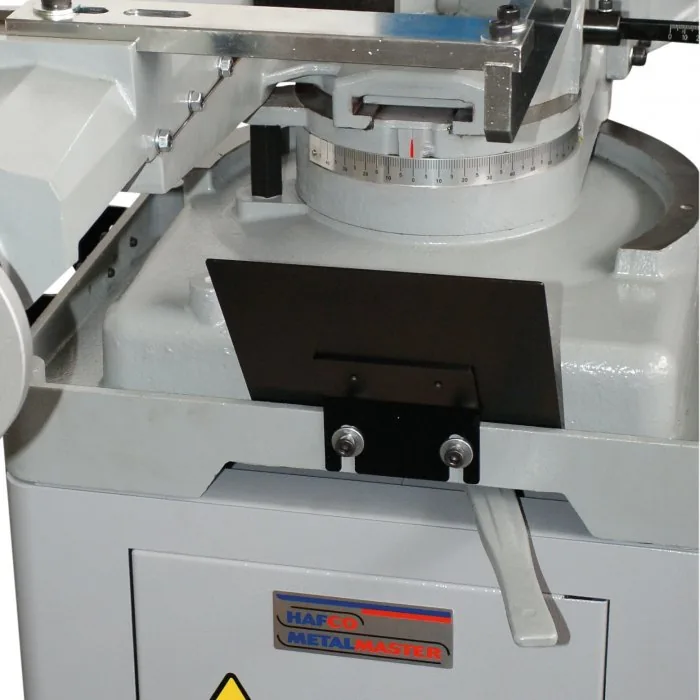

- Degree markings engraved onto swivelling base for quick and accurate mitre cutting

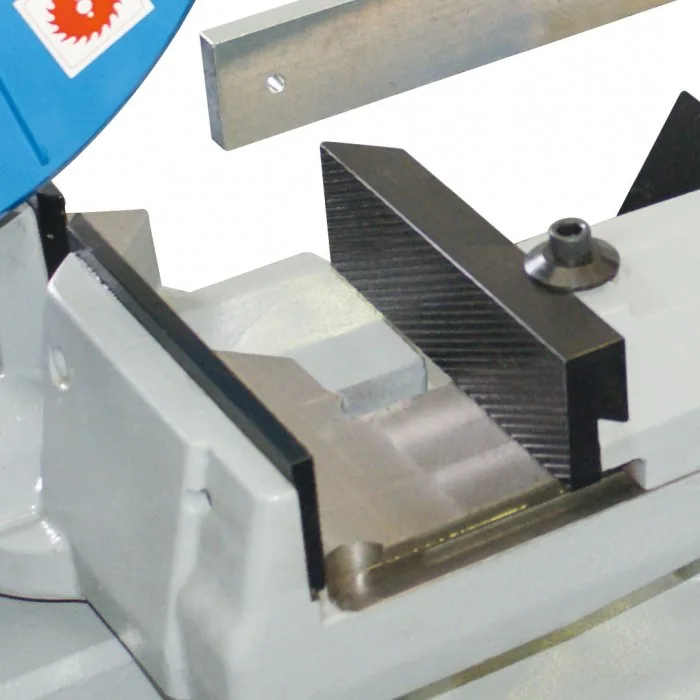

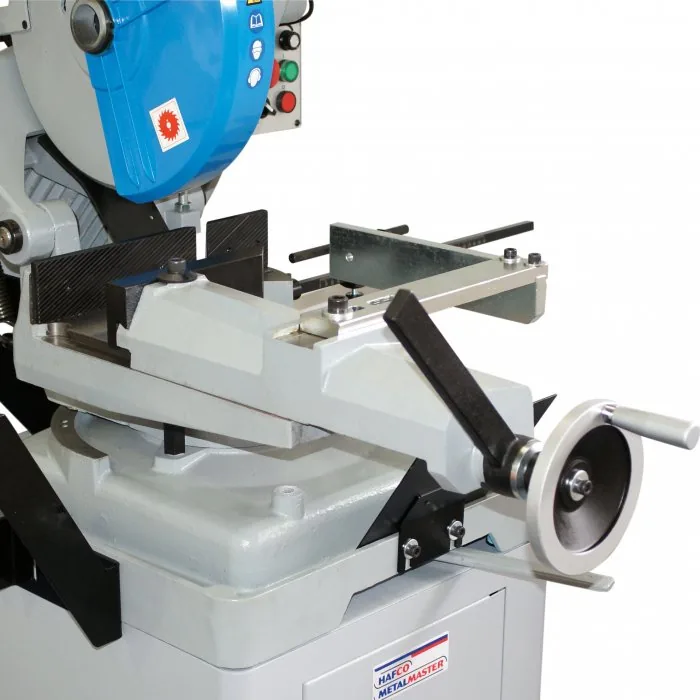

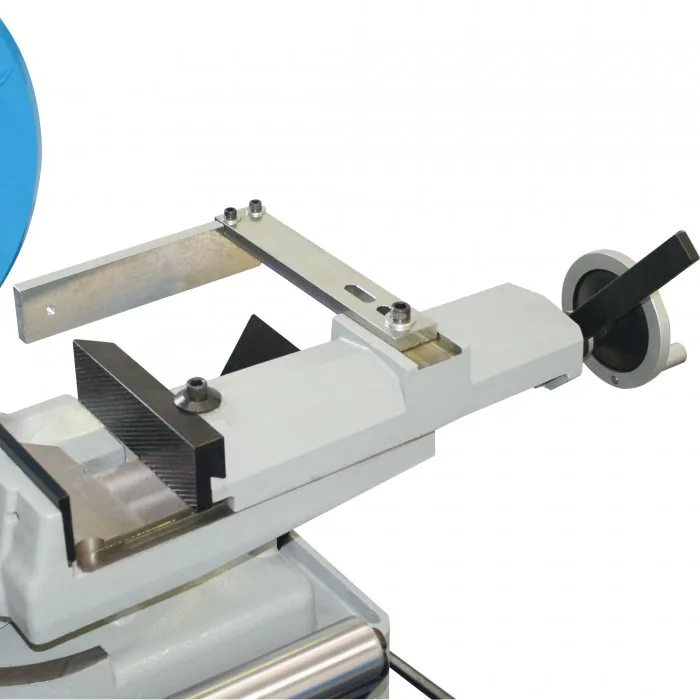

- Dual material clamp system providing burr free cuts on both pieces of material
- Quick action vice clamp lever designed to increase production

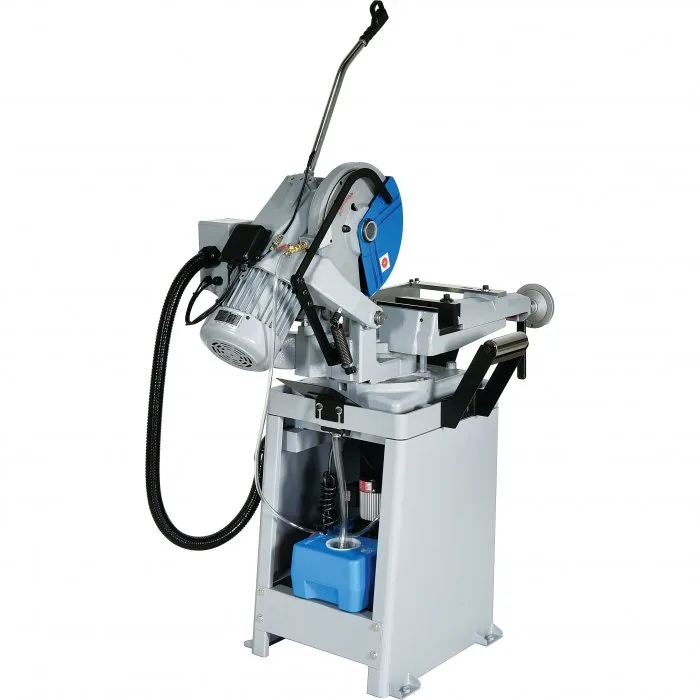

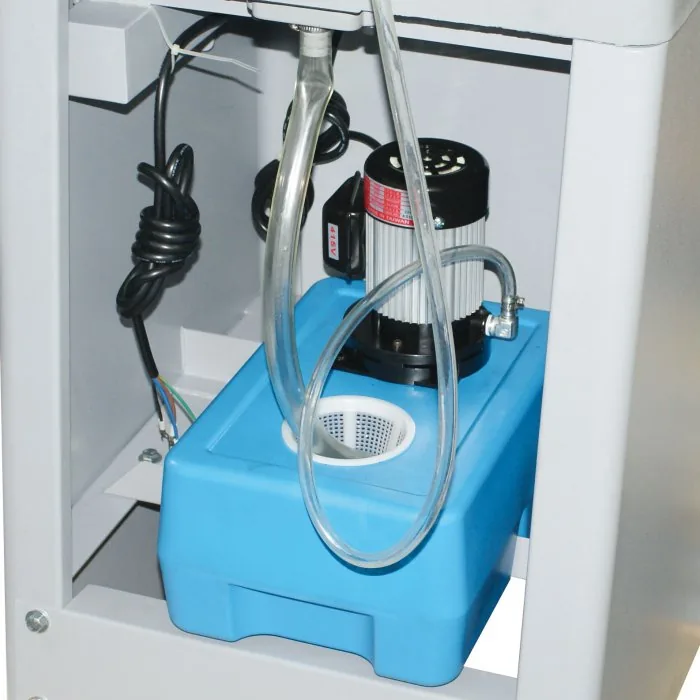

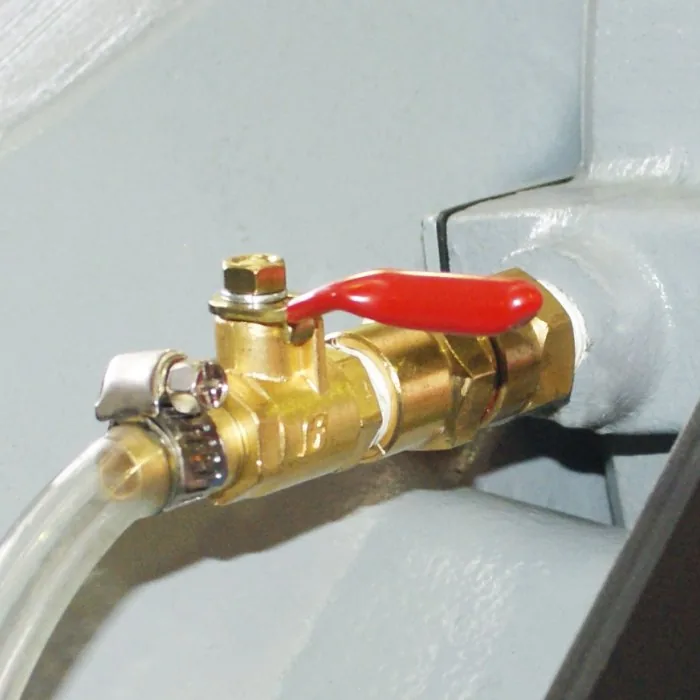

- Built in blade coolant pump system with flow control valve
- Oil sight glass located on right side of the gearbox so operator can maintain correct lubrication levels according to specifications provided
- Dead man trigger switch located on cutting handle provides operator safety on/off power control
- Automatic retract safety blade guard covers blade when returned to home position
- Spring assisted head return provides a even balance during cutting operation and reduces operator fatigue
- HSS cutting blade is included for general types of material and thickness
- Please Note:
- This machine is not supplied with a 240 volt plug
About This Product
The latest 240 volt Hafco MetalMaster manual cold saw consists of a 350mm circular saw blade that can run at 24 to 120rpm via a electronic variable blade speed control and also incorporates a coolant system with an adjustable flow control valve. These cold saws are designed to cut at 90º, or mitre up to 45º in either left or right side of the material simply by releasing the lever located at front of machine and swivelling the head to the desired angle. Each machine comes standard with a very heavy and strong cast iron frame base with a cast dual pivot saw head supported by an industrial swivel base system, which makes this MetalMaster cold saw one of the most rugged machines on the market. The MetalMaster manual cold saw head is well balanced and uses a long actuating handle giving the operator greater leverage and control to guide the saw blade through the work piece of tubing or pipe etc, with ease and utilises a quality head retraction system for returning the cold saw head to the start position. The vice clamps the work piece on both sides of a cut, which extends blade life because the cut off does not drop into the blade. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code S829) for collection in store.
In the Box
- Blade
- Stand
- Coolant system

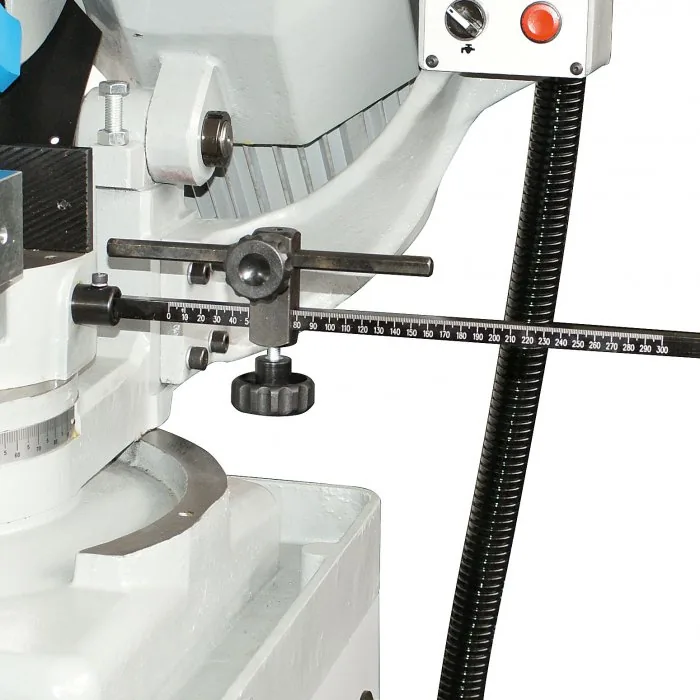

- Material length stop
Product Specifications
| Specification | Detail |
|---|---|
| Cutting Head Action | Manual |
| Operation Type | Swivel – Dual Mitre |
| Round Capacity @ 90º / 45º (mm) | 120 / 100 |
| Square Capacity @ 90º / 45º (mm) | 105 / 85 |
| Rectangle Capacity @ 90º / 45º (WxH) (mm) | 160 x 90 / 90 x 70 |
| Blade Size – Diametre. x Bore (Ø) (mm) | 350 x 32 |
| Vice Clamping Fixture | Manual |
| Coolant System | Yes |
| Table Working Height (with Stand) (mm) | 1000 |
| Blade Speed (rpm) | Variable 24120 |
| Motor Power (kW / hp) | 2.2 / 3 |
| Voltage / Amperage (V / amp) | 240 / 20 |
| Nett Weight (kg) | 280 |
