Sidchrome SCMT28584 — circlip pliers internal straight 19 available at Alltools Geelong.
Sidchrome

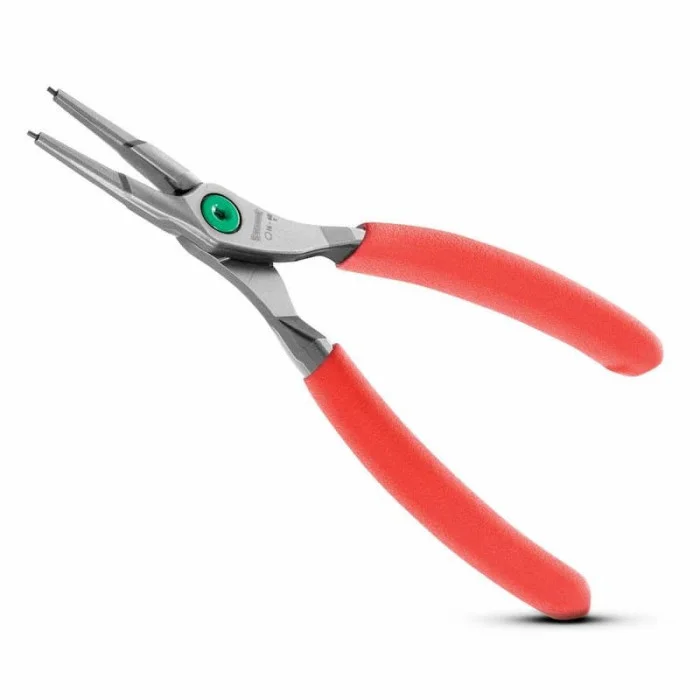

Circlip Pliers Internal Straight 19-60mm — Precision Piano Wire Tips
Part No: SCMT28584 | Barcode: 9311927285847
Professional circlip pliers with straight tips designed for internal circlips in the 19-60mm range. Features long precision piano wire tips for secure circlip retention and integrated hidden springs to reduce the risk of spring loss during operation.
Internal Straight
19-60mm Range
180mm Length
Piano Wire Tips
DIN 5254/5256
Hidden Spring
Suitable For
Internal Circlips
Retaining Rings 19-60mm
Snap Rings
Key Features & Benefits
- Long precision piano wire tips — provide greater circlip retention and reduce the risk of clips springing off during installation or removal.
- Integrated hidden spring — recessed spring design eliminates the risk of spring loss during operation, unlike exposed-spring pliers.
- Thinner nose profile — allows access to tight areas where standard circlip pliers cannot reach.
- 45-degree nose angle — straight tips provide direct access for front-facing circlip grooves.
- Colour-coded identification — quick visual identification of internal vs external and straight vs bent variants in the toolbox.
- Ergonomic anti-slip PVC handles — comfortable grip that resists slipping in oily conditions.
- DIN 5254 & DIN 5256 compliant — manufactured to international circlip plier standards for guaranteed compatibility.
When to Use These Pliers
The SCMT28584 is designed for internal circlips with straight tips, covering the 19-60mm ring diameter range. Straight tips are ideal when the circlip groove is directly accessible from the front, typical of shaft-mounted external clips and housing-mounted internal clips with clear line-of-sight access.
Authorised Australian Dealer — This product is backed by full Australian manufacturer warranty from Sidchrome Australia, with local support and service.
Product Specifications
| Part No. | Application | Tip Style | Range | Length |
|---|---|---|---|---|
| SCMT28582 | External | Straight | 19-60mm | 180mm |
| SCMT28583 | External | Bent 45° | 19-60mm | 180mm |
| SCMT28584 ★ | Internal | Straight | 19-60mm | 180mm |
| SCMT28585 | Internal | Bent 45° | 19-60mm | 180mm |
★ You are viewing the highlighted variant. Other models in this series are also available.
