TOOLMASTER
Reversible Tapping Chuck – Adjustable Clutch — T4-MT4, Include 3MT & 4MT Arbours M8 – M20
Part No: T005 | Barcode: 9344195003868 | Model: T4-MT4
TOOLMASTER T4-MT4 Reversible Tapping Chuck – Adjustable Clutch (Include 3MT & 4MT Arbours M8 – M20). Available to order through Alltools Geelong for collection in store.
Model T4-MT4
Include 3MT & 4MT Arbours
M8 – M20
Key Features & Benefits
- Pre-select torque drive to prevent tap breakage and allow for blind hole tapping
- Tension and compression feature compensates between rate of feed applied and thread pitch
- Suitable for right and left hand, vertical and horizontal tapping
- Fast tap reversal. Re-entry cushioning eliminates cross threading
- Clutch Torque Setting:
- 1 – 12 Nm
- 2 – 20 Nm
- 3 – 60 Nm
- 4 – 110 Nm
- Please Note: M20 tap requires a 14mm Shank
About This Product
Reversible Tapping Chuck – Adjustable Clutch (Include 3MT & 4MT Arbours M8 – M20). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code T005) for collection in store.

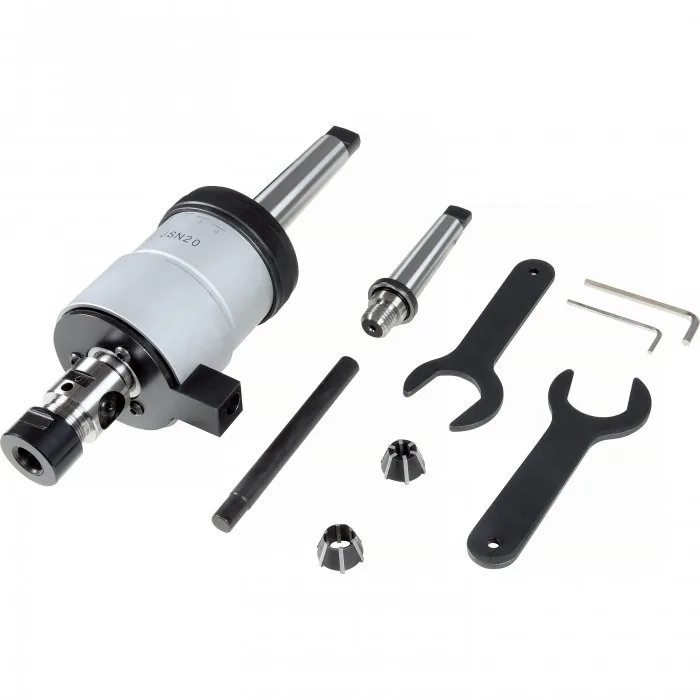

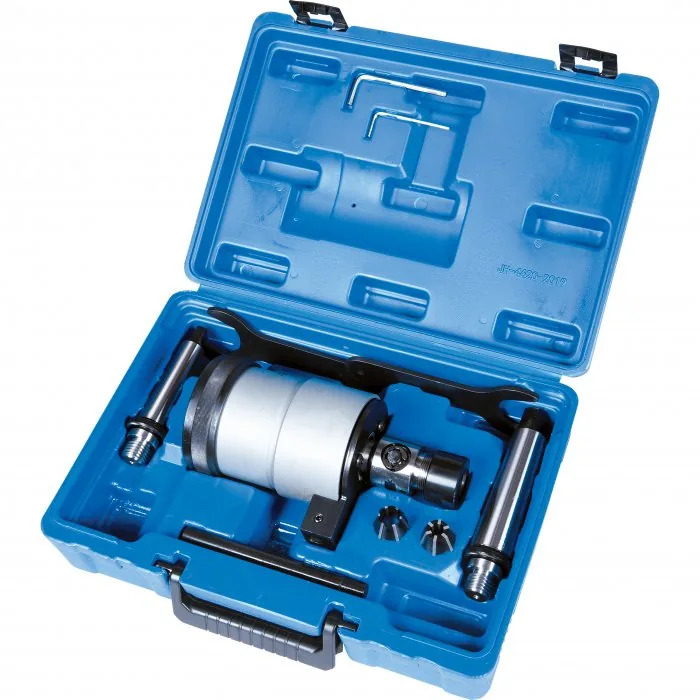

In the Box
- MT3 & MT4 arbors – threaded end
- 2 x Collet chuck spanners
- 2 x Rubber flex collets
- 2 x allen keys
Product Specifications
| Specification | Detail |
|---|---|
| Arbor Mount | Threaded |
| Taper (MT) | 3 & 4 |
| Tapping Range (mm) | 8 – 20 |
| Tapping Shank Size (mm) | 6.3 – 14 |
| D (mm) | 90 |
| D1 (mm) | 38 |
| L (mm) | 195 |
| L1 (mm) | 134 |
| A (mm) | 62 |
| B (mm) | 20 |
| Nett Weight (kg) | 6.8 |
