TOOLMASTER

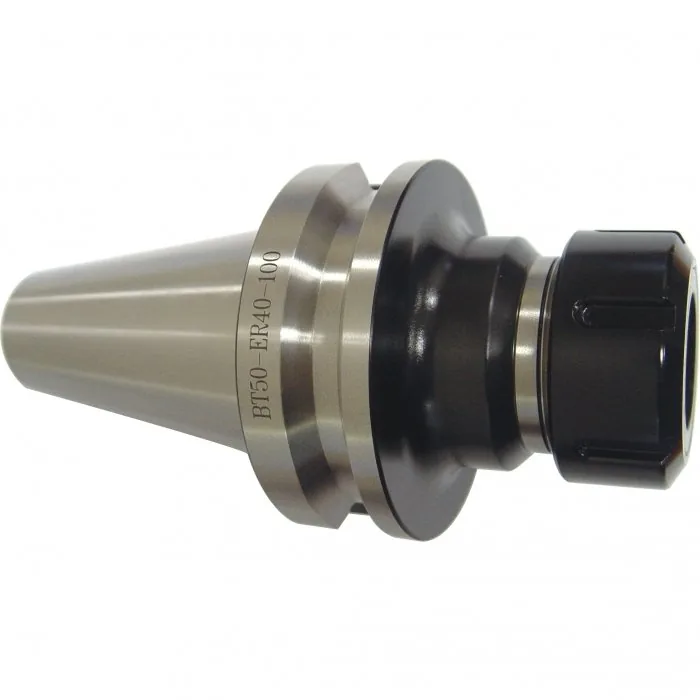

BT50 X ER40-100 Collet Chuck — Ø3-Ø26mm Range 10,000rpm Speed Rating
Part No: T450 | Barcode: 9344195004636
TOOLMASTER BT50 X ER40-100 Collet Chuck (Ø3-Ø26mm Range 10,000rpm Speed Rating). All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 – 85% taper contact)
Ø3-Ø26mm Range
10,000rpm Speed Rating
Speed Rating: 10,000 rpm
Capacity: 3 – 26 mm
Key Features & Benefits
- Precision ground
- All ER40 collet chucks are fitted with ball bearing nuts
- Manufactured to MAS403 BT50 standard
- M24 Pull Stud thread
- 100mm extension from the gauge line
- Locking spanner not included
About This Product
All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 – 85% taper contact) This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code T450) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Speed Rating (rpm) | 10,000 |
| Taper (BT) | BT50 |
| Capacity (mm) | 3 – 26 |
| L (mm) | 100 |
| D (mm) | 63 |
| Collet Type (ER) | ER40 |
| Nett Weight (kg) | 5.0 |
