TOOLMASTER

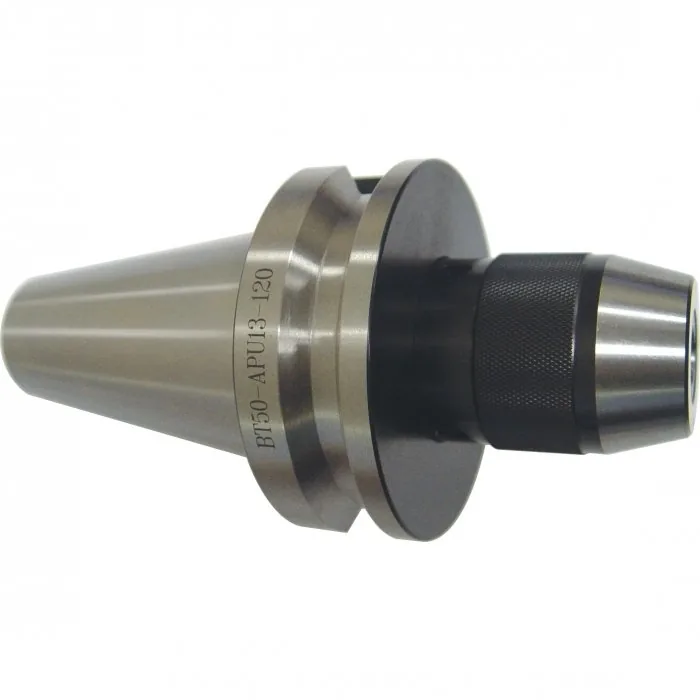

BT50-APU13-120 Drill Chuck Bt Apu Type — Ø1-Ø13mm Range 8000rpm
Part No: T462 | Barcode: 9344195004704
TOOLMASTER BT50-APU13-120 Drill Chuck Bt Apu Type (Ø1-Ø13mm Range 8000rpm). Manufactured to MAS403BT50 standard this one piece drill chuck is suitable for high speed CNC driling
Ø1-Ø13mm Range
8000rpm
Speed Rating: 8000 rpm
L Max.: 120 mm
Key Features & Benefits
- Precision ground
- Rated at 8000rpm
- Supplied with “C” spanner for positive locking
- M24 Pull Stud thread
About This Product
Manufactured to MAS403BT50 standard this one piece drill chuck is suitable for high speed CNC driling This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code T462) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Clamping Range (mm) | 1 – 13 |
| Speed Rating (rpm) | 8000 |
| D (mm) | 58 |
| L Min. (mm) | 105 |
| L Max. (mm) | 120 |
| Nett Weight (kg) | 5.5 |
