Carbitool T516 — Rounding Over Router Bit available at Alltools Geelong.
Carbitool

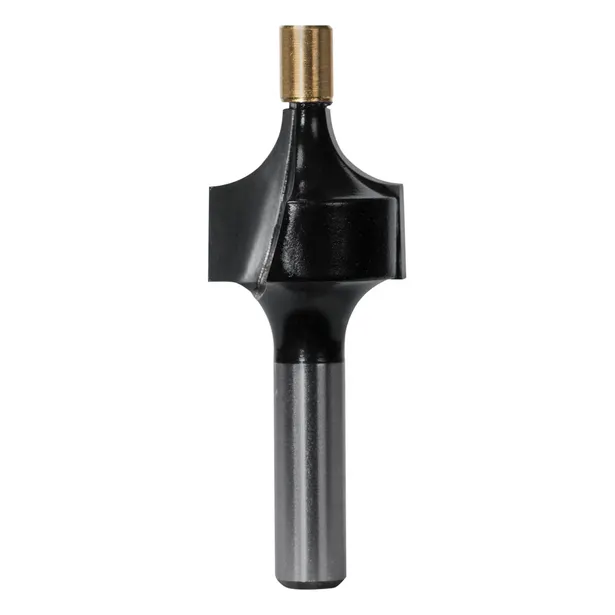

T516 Rounding Over Router Bit with Pilot Carbitool
Part No: T516 | Barcode: 9314350006089 | Product Group: R612 | Discount Group: Z0904
2-flute carbide-tipped rounding-over bit with integral pilot — the largest radius in the pilot-guided series at 1/2″. For substantial round-overs on table tops, bench edges, and furniture where a bold, smooth radius is required. The built-in pilot eliminates fence or guide assembly setup. 1/4″ shank.
Carbide Tipped
2 Flute
Pilot Guided
1/2″ Radius
1/4″ Shank
Key Features & Benefits

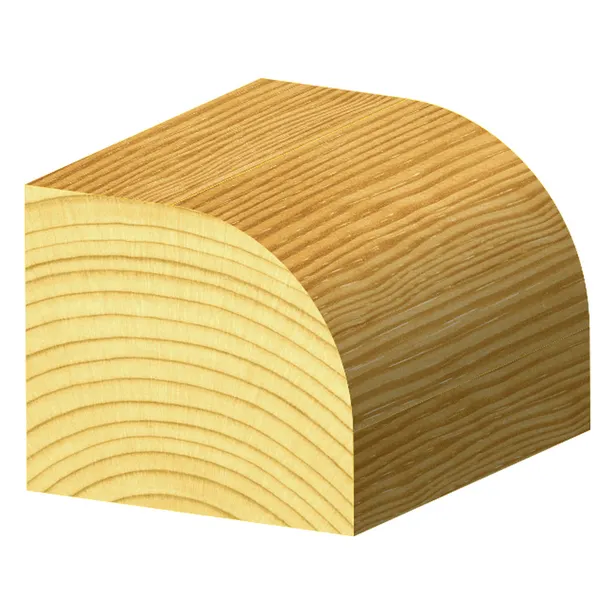

- 1/2″ radius round-over — the largest pilot-guided round-over in the series; produces a substantial, smooth profile for furniture and bench tops.
- Integral pilot — runs directly on the workpiece edge; no fence or guide bearing required, reducing setup time significantly.
- 2-flute carbide tipped — clean finish on hardwoods, softwoods, and sheet materials.
- 1-3/16″ cutting diameter — suited to thicker stock where a full, generous round-over profile is required.
When to Use This Bit
The T516 is the right choice when you need a bold 1/2″ radius without setting up a bearing guide. For the same radius with a ball bearing (not a fixed pilot), use the T516B. For smaller radii with pilot, see T506 through T512 in the same series.
Pro Tip: On wide or heavy stock, take two passes — a roughing pass leaving 1–2mm, then a light finishing pass for a clean, burn-free surface. Keep RPM between 16,000–20,000 for this larger diameter.

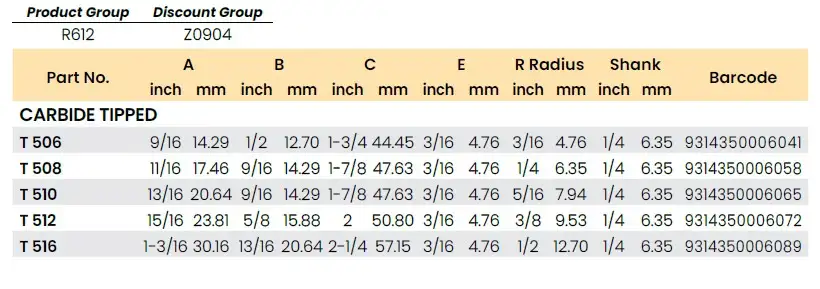

Product Specifications

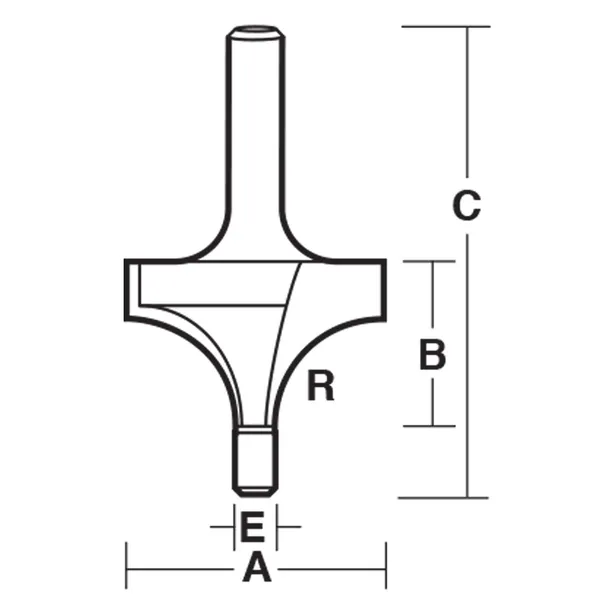

| Part No. | A (Dia.) inch | A mm | B (Cut Length) inch | B mm | C (OAL) inch | C mm | E inch | E mm | R Radius inch | R mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T506 | 9/16″ | 14.29 | 1/2″ | 12.70 | 1-3/4″ | 44.45 | 3/16″ | 4.76 | 3/16″ | 4.76 | 1/4″ | 6.35 | 9314350006041 |
| T508 | 11/16″ | 17.46 | 9/16″ | 14.29 | 1-7/8″ | 47.63 | 3/16″ | 4.76 | 1/4″ | 6.35 | 1/4″ | 6.35 | 9314350006058 |
| T510 | 13/16″ | 20.64 | 9/16″ | 14.29 | 1-7/8″ | 47.63 | 3/16″ | 4.76 | 5/16″ | 7.94 | 1/4″ | 6.35 | 9314350006065 |
| T512 | 15/16″ | 23.81 | 5/8″ | 15.88 | 2″ | 50.80 | 3/16″ | 4.76 | 3/8″ | 9.53 | 1/4″ | 6.35 | 9314350006072 |
| T516 ★ | 1-3/16″ | 30.16 | 13/16″ | 20.64 | 2-1/4″ | 57.15 | 3/16″ | 4.76 | 1/2″ | 12.70 | 1/4″ | 6.35 | 9314350006089 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
