Double Beading Router Bit with Ball Bearing Guide — Decorative Edge Bead, 1/4″ Shank
Part No: TB 606 B | Barcode: 9314350001763 | Product Group: R618
The Carbitool TB 606 B is a 2-flute carbide-tipped double beading bit with ball bearing guide that produces two decorative edge beads simultaneously. Used as a combination bit by utilising only part of the profile, it gives you multiple moulding options from a single tool.
2 Flute
Carbide Tipped
Ball Bearing Guide
Double Bead Profile
1-3/8″ Cutting Dia.
1/4″ Shank
Suitable For
Hardwood
Softwood
MDF
Furniture Edges
Cabinet Doors
Decorative Moulding
Key Features & Benefits

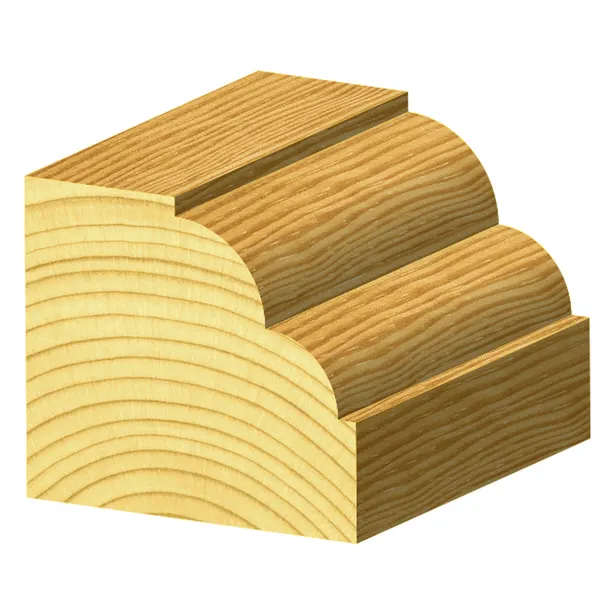

- Double Bead Profile — produces two decorative beads simultaneously, creating a classic edge detail that suits furniture, cabinetry, and architectural mouldings.
- Combination Bit Versatility — adjust the bit height in the router table to include only part of the profile, giving you multiple moulding styles from one bit.
- Ball Bearing Guide — tracks along the workpiece edge for consistent depth of cut, and enables routing of curved as well as straight workpieces.
- 2-Flute Carbide-Tipped Construction — smooth, chatter-free finish on hardwood and softwood with long service life.
When to Use This Bit
Choose the TB 606 B when you need a double bead decorative edge on furniture, cabinet doors, or architectural mouldings. The 1/4″ shank suits both trim routers and full-size routers. For a single bead, see the standard beading bits in the R617 series. For a triple bead, see the TT 606 B 1/2 in the R620 series. Replacement bearing: TB9 (see Carbitool bearing chart).
Product Specifications

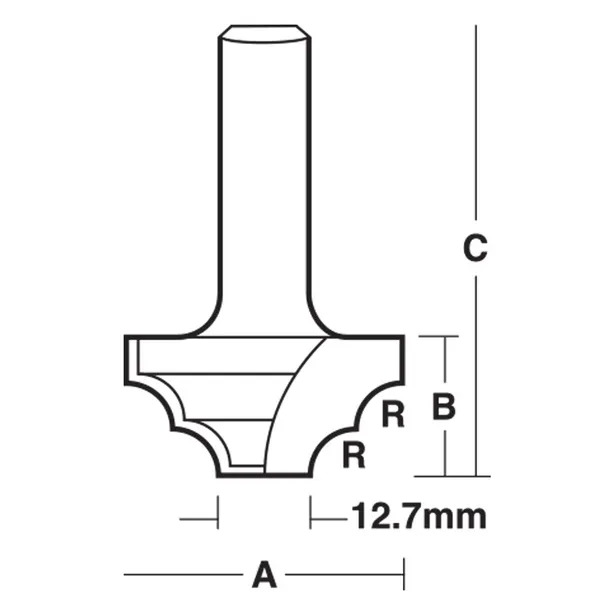

| Part No. | A (Cutting Dia.) inch | A mm | B inch | B mm | C (Overall Length) inch | C mm | R1 Radius mm | R2 Radius mm | Shank inch | Shank mm | Barcode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TB 606 B ★ | 1-3/8 | 34.93 | 11/16 | 17.46 | 2-1/4 | 57.15 | 4.76 | 6.35 | 1/4 | 6.35 | 9314350001763 |
| TB 606 B 1/2 | 1-3/8 | 34.93 | 11/16 | 17.46 | 2-3/4 | 69.85 | 4.76 | 6.35 | 1/2 | 12.70 | 9314350001770 |
| TB 608 B 1/2 | 1-5/8 | 41.28 | 7/8 | 22.23 | 3-1/8 | 79.38 | 6.35 | 7.94 | 1/2 | 12.70 | 9314350001787 |
★ You are viewing the highlighted variant. Other sizes in this series are also available.
